Place of Origin:
CHINA
Brand Name:
ENMESI
Certification:
CE,FCC,ROHS
Model Number:
E632

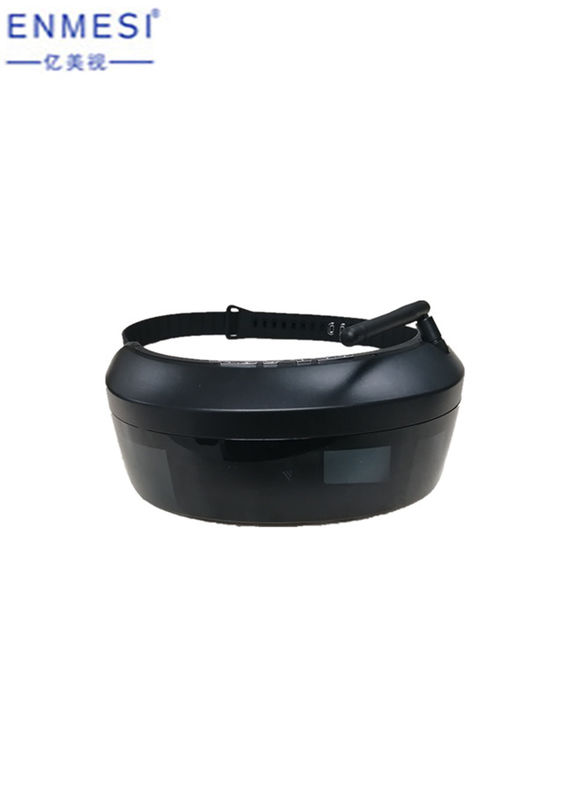

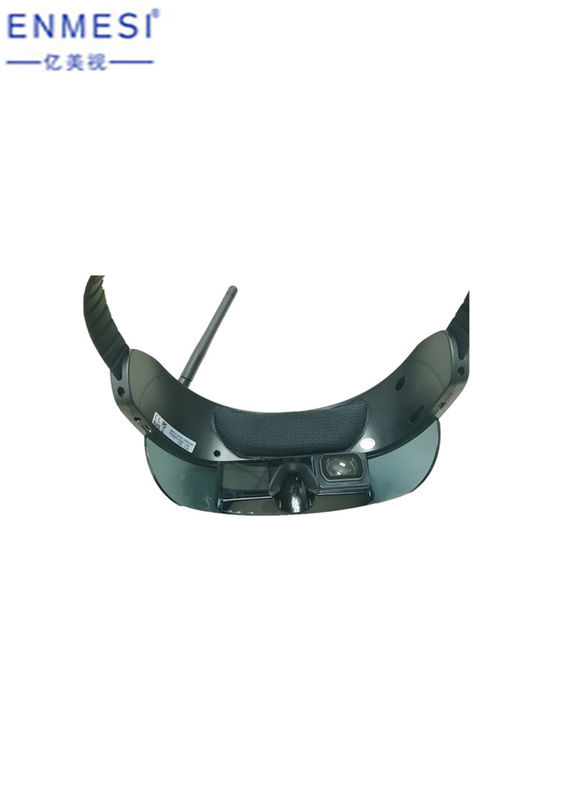

Small Distortion Large FOV Resin Lens FPV Goggles , Rechargeable Li-battery FPV Glasses For Engineering Instrument
UAVs generally refer to the drones with cameras, and those without cameras can only be regarded as toys. It is generally divided into two parts, one part is the remote control, the other part is the display part which is completed by the image transmission module. The signal transmitter is connected to the camera on the drone, and the signal receiver is in the hands of the player, and some are on the remote controller. Signal receive generally needs WIFI and 5.8GHZ radio signal, but the distance of WIFI is relatively not far, the player can use mobile phone to receive signals, but it will not be clear in the outdoor; and the 5.8GHZ radio signal, the distance can reach 2KM. It is best if within a few hundred meters, so most drones use 5.8GHZ radio signal.
Product details
Product model | E632 |
CPU | E6 |
Memory | Flash: 256K |
Screen material | TFT LCD |
Screen Quantity | One screen |
Screen size | 0.32" |
Screen resolution | 854*480 |
5.8G receiver | Yes |
HDMI | Support HDMI input |
Channles | 40CH |
Delay | less than 30ms |
RF Modules | 5.8G, 5.0G, 2.4G |
Power Consumption | HDMI Mode:1.5W, 5.8G Mode:2.3W |
Battery | Built-in 2000 mAh rechargeable Li-battery |
Product features
1. Extremely short reception delay,less than 30ms.
2. High configuration:fast running speed,long duration,product light,clear screen,large storage capacity.2.5.8G receiver:receiver distance far.
3. Beautiful design.
4. Comfortable:not only is the area in contact with the glasses comfortable,but the process of using the product is also comfortable.
5. FOV:35 degree.
6. Cost-effective.
Accessories
a. USB cable: 1 pcs
b. User manual: 1 pcs
c. Cleaning cloth: 1 pcs
d. Micro HMDI cable: 1 pcs
e. Adapter: 1 pcs
f. Antenna: 1 pcs
Applications
It can be used:
1. Unmanned Aerial Vehicle
2. Monitor
3. Fishing camera
4. Navigator
5. Engineering Instrument
6. PSP
7. Radio control cars
8. Night vision
