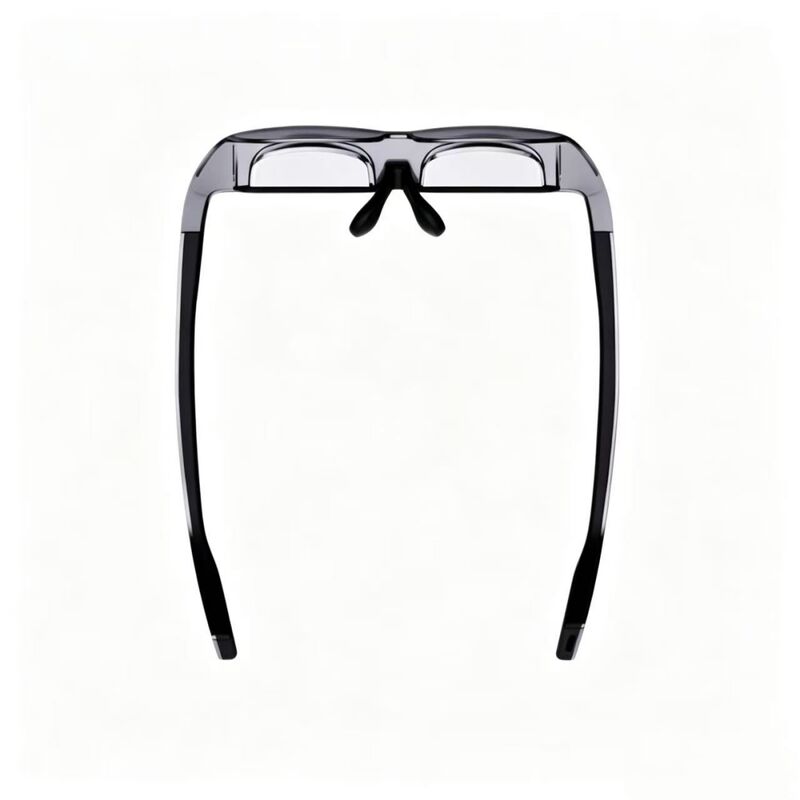

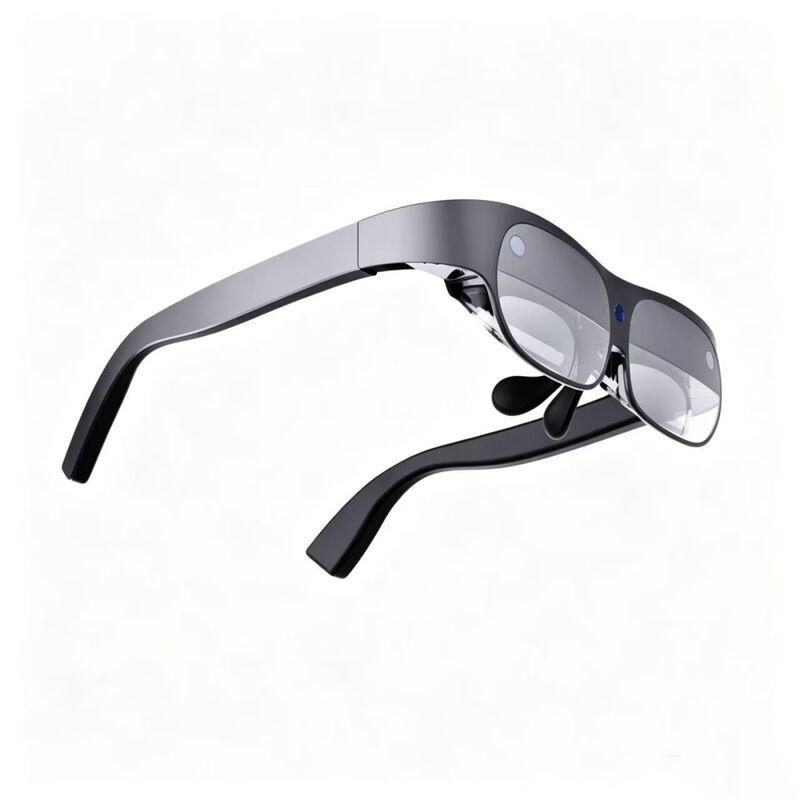

Micro OLED XR Glasses with 47° FOV and 6 DOF for Immersive Mixed Reality Experience

47° FOV XR Glasses

6 DOF AR Smart Glasses

Micro OLED Mixed Reality Glasses

Place of Origin:

China

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

E60

Request A Quote

Micro OLED XR Glasses with 47° FOV and 6 DOF for Immersive Mixed Reality Experience

Product Details

FOV:

47°

3DOF Controller:

YES

Material:

OLED

Model Type:

Birdbath

6DOF Glasses:

YES

OS:

Android 12

Payment & Shipping Terms

Minimum Order Quantity

10pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

3-7 working days

Payment Terms

T/T etc.

Supply Ability

5000pcs/month

6DOF XR Glasses with 3840 × 1200 Resolution and 47° FOV for Immersive Mixed Reality Experience

Get Best Price

Micro OLED XR Glasses with 3840 * 1200 Resolution 47 Degrees FOV and Android 12

Get Best Price

Micro OLED Birdbath XR Glasses with 3840 x 1200 Resolution 6 DOF and Android OS

Get Best Price

Micro OLED XR Glasses with 3840 x 1200 Resolution 47° FOV and 90Hz Refresh Rate

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

Micro OLED Birdbath 47° 6 DOF XR Glasses with 3 DOF Android 12 TYPE-C Controller

Our integrated XR system combines lightweight XR glasses and high-performance 3DoF portable controller, catering for personal entertainment, mobile office, enterprise demonstration and global wholesale partners.

XR Glasses Specifications

Product Model	E60
Resolution	3840 × 1200 (mono 1920×1200)
Material	Micro OLED
Field of View (FOV)	Birdbath 47°
Refresh Rate	90Hz
Display Luminance	Max 5000nits
On-eye Luminance	Max 1000nits
Brightness Adjustment	5-Level Adjustment (Below the right temple)
IPD Adjustment	62mm, 65mm, 68mm (3-Level Adjustable)
Camera	2
MIC	2pcs MIC
Speaker	2 pcs speakers
Glasses Port	Type-C (The tip of the left temple)
6 DOF	Yes
Dimensions	191mm × 160mm × 46.5mm
Weight	120 g

3DoF Controller Specifications

Chip	RK3588S
OS	Android 12
RAM	16GB
ROM	128GB
Physical Interface	HDMI, Type-C, TF Card
WiFi / Bluetooth	Yes
Vibration Feedback	Linear Motor
Sensor	Gyroscope, Accelerometer, and Magnetometer
Battery	8000 mAh
Operating Temperature	0℃ to 40℃
Dimensions	64.5mm × 148mm × 18.5mm
Weight	223 g

Key Features

Birdbath Optical Design: 47° FOV, adopts 0.68-inch Micro-OLED display panel
Top-Tier Visual Performance: Total resolution 3840×1200, 90Hz refresh rate; max 5000nits display luminance, max 1000nits on-eye luminance
Giant Virtual Screen: Simulates 138-inch screen at 4m, up to 210-inch screen at 6m
User-Friendly Adjustment: 3-level IPD adjustment (62mm / 65mm / 68mm), 5-level brightness adjustment
Lightweight Wearing: Only 120g total weight for long-time comfort
Accurate 6DoF SLAM Spatial Positioning: Centimeter-level accuracy, approx 0.3% drift, relocation time＜1 second
High-Precision Gesture Recognition: 150° diagonal FOV, tracks 26 hand joints, supports tap, grasp, zoom operations, 90% recognition accuracy
Dual-camera Setup: Stereo fisheye positioning camera + 1080P@30fps RGB camera
Immersive Audio: Dual microphones and dual speakers for spatial audio experience
Interface: Type-C data port on left temple for stable connection
Powerful Chip & System: RK3588S processor, Android 12 operating system
Large Memory: 16GB DDR RAM + 128GB Flash ROM, supports SD3.0 TF-card expansion
Rich High-speed Interfaces: HDMI 2.1: output up to 8K@60Hz, Type-C: DP1.4 (4K@60Hz), USB3.1, PD3.0 fast charging
Wireless Connectivity: WiFi6 (2.4G&5G), BT5.0; supports NFS4.2, SMB3.1 LAN access
Motion Sensing & Haptic Feedback: Built-in gyroscope, accelerometer, magnetometer; linear motor for vibration feedback
Large-capacity Battery: 8000mAh lithium-polymer battery, max 10W power consumption
Cooling & Working Condition: Active fan-controlled cooling, operating temperature: 0℃-40℃
Complete Physical Buttons: Power button, OK button, direction keys, cursor reset button, back button, volume +/- keys
Portable Size: Dimension 64.5×148×18.5mm, weight 223g

Business Information

Application scenarios: Private giant-screen theater, mobile office, industrial display, education & training, XR project deployment.

Support OEM & ODM customization for global distributors, brand owners and enterprise customers.

Sample evaluation and bulk orders are welcome
