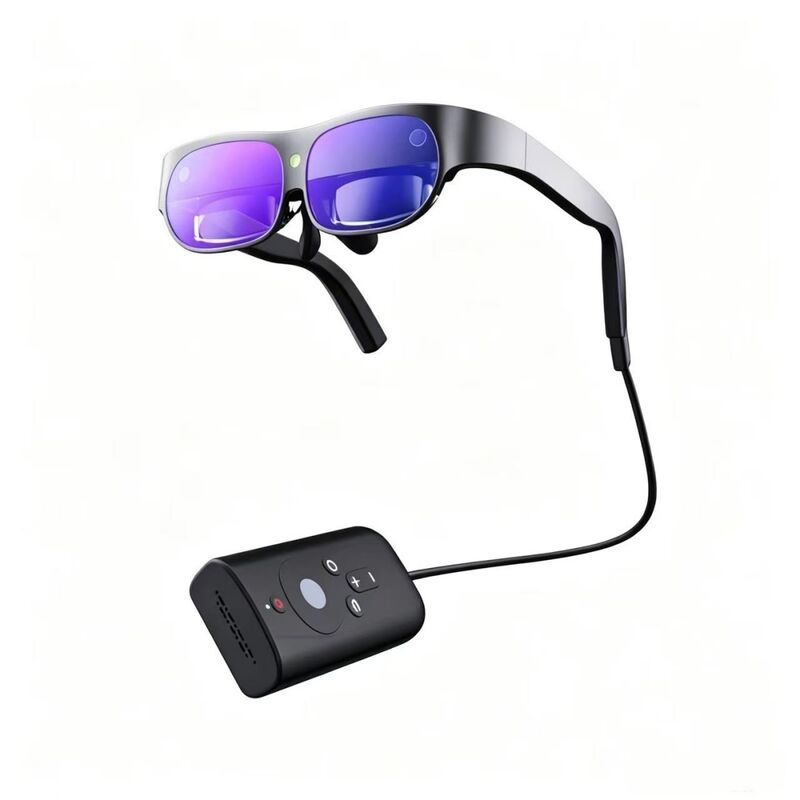

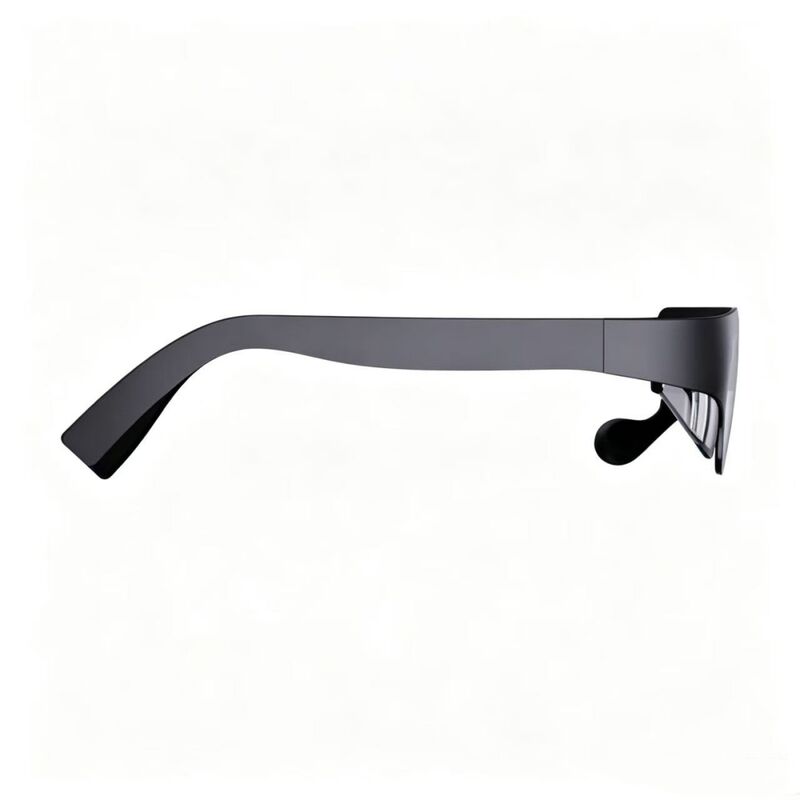

Micro OLED XR Glasses with 3840 x 1200 Resolution 47° FOV and 90Hz Refresh Rate

Place of Origin:

China

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

E60

Document:

V60 User Manual.pdf

Request A Quote

Micro OLED XR Glasses with 3840 x 1200 Resolution 47° FOV and 90Hz Refresh Rate

Product Details

FOV:

47°

IPD Adjustment:

62mm、65mm、68mm (3-Level Adjustable)

Material:

OLED

Model Type:

Birdbath

6DOF:

Yes

OS:

Android 12

Payment & Shipping Terms

Minimum Order Quantity

10pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

3-7 working days

Payment Terms

T/T etc.

Supply Ability

5000pcs/month

3840 * 1080 Resolution 70° FOV Head Mounted Display with +2.0D~-6.0D Diopter - AR Smart Glasses

Get Best Price

Video

VR/AR Smart Glasses with 70° Ultra Large FOV 1920*1080 Resolution and USB-C Connectivity

Get Best Price

Video

ENMESI V60 VR Smart Glasses with 70° FOV 1080P Resolution and USB-C Connectivity for AR and VR Applications

Get Best Price

Video

1080P Resolution 70° FOV VR Smart Glasses with Diopter Adjustment and Magnetic Earphones

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

Micro OLED 3840 * 1200 Resolution 47° FOV 90HZ XR Glasses With Type-C

High-performance XR glasses featuring Micro OLED display technology with exceptional resolution and field of view for immersive extended reality experiences.

XR Glasses Specifications

Product Model	E60
Resolution	3840 * 1200 (mono 1920*1200)
Material	Micro OLED
Field of View (FOV)	Birdbath 47°
Refresh Rate	90Hz
Display Luminance	Max 5000nits
On-eye Luminance	Max 1000nits
Brightness Adjustment	5-Level Adjustment (Below the right temple)
IPD Adjustment	62mm, 65mm, 68mm (3-Level Adjustable)
Camera	2
MIC	2pcs MIC
Speaker	2 pcs speakers
Glasses Port	Type-C (The tip of the left temple)
6 DOF	Yes
Dimensions	191mm * 160mm * 46.5mm
Weight	120 g

3DoF Controller Specifications

Chip	RK3588S
OS	Android 12
RAM	16GB
ROM	128GB
Physical Interface	HDMI, Type-C, TF Card
WiFi / Bluetooth	Yes
Vibration Feedback	Linear Motor
Sensor	Gyroscope, Accelerometer, and Magnetometer
Battery	8000 mAh
Operating Temperature	0℃ to 40℃
Dimensions	64.5mm * 148mm * 18.5mm
Weight	223 g

Key Features

Robust Specs: RK3588S chip with 16GB RAM + 128GB storage, smooth multitasking & ample local storage
Crisp Visual Experience: 3840*1200 Micro‑OLED panel, 47° FOV BirdBath optics for vivid, distortion‑reduced imagery
Split Comfort & Long Battery: 120g lightweight glasses; external 8000mAh battery reduces facial strain for extended usage
Reliable Connectivity: Wi‑Fi 6, Bluetooth 5.1 & USB 3.0 Type‑C for seamless screen mirroring, peripheral pairing & data transfer
Intuitive Interaction: Dual‑fisheye IMU positioning, gesture & 3DoF ray control; 1080P camera, OCR and real‑time translation

Application

Cloud Map

Guided Tour

Education

Industry & Inspection

Interactive & Gaming

Wireless Streaming
