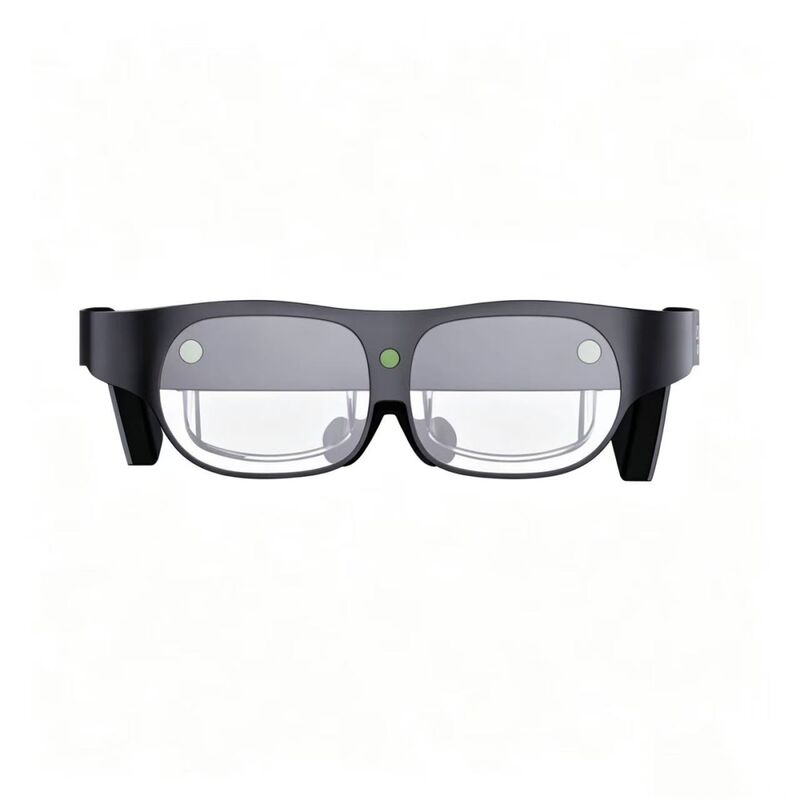

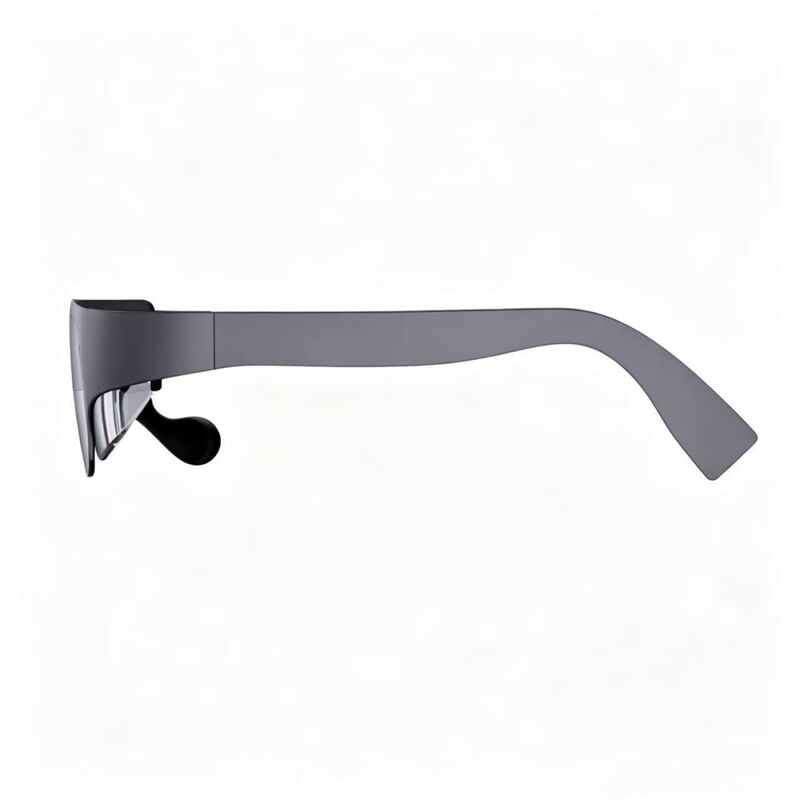

6DOF XR Glasses with 3840 × 1200 Resolution and 47° FOV for Immersive Mixed Reality Experience

3840 × 1200 Resolution XR Glasses

6DOF AR Smart Glasses

47° FOV Mixed Reality Glasses

Place of Origin:

China

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

E60

Request A Quote

6DOF XR Glasses with 3840 × 1200 Resolution and 47° FOV for Immersive Mixed Reality Experience

Product Details

FOV:

47°

IPD Adjustment:

62mm、65mm、68mm (3-Level Adjustable)

Material:

OLED

Model Type:

Birdbath

6DOF:

Yes

OS:

Android 12

Payment & Shipping Terms

Minimum Order Quantity

10pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

3-7 working days

Payment Terms

T/T etc.

Supply Ability

5000pcs/month

6DOF XR Glasses with 3840 × 1200 Resolution and 47° FOV for Immersive Mixed Reality Experience

Get Best Price

Micro OLED XR Glasses with 3840 * 1200 Resolution 47 Degrees FOV and Android 12

Get Best Price

Micro OLED Birdbath XR Glasses with 3840 x 1200 Resolution 6 DOF and Android OS

Get Best Price

Micro OLED XR Glasses with 3840 x 1200 Resolution 47° FOV and 90Hz Refresh Rate

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

6DOF XR Glasses with 3840 × 1200 Resolution and 47° FOV for Immersive Mixed Reality Experience

Micro OLED 3840 × 1200 Resolution 47 Degrees Android 12 XR Glasses with HDMI & TYPE C. Elevate your mixed‑reality experience with our brand‑new XR Glasses paired with a powerful 3DoF portable controller. This complete standalone wearable solution targets enterprise users, content creators, tech enthusiasts and global wholesale partners, bringing immersive spatial computing, giant‑screen private theater and interactive XR applications.

XR Glasses Specifications

Product Model	E60
Resolution	3840 × 1200 (mono 1920×1200)
Material	Micro OLED
Field of View (FOV)	Birdbath 47°
Refresh Rate	90Hz
Display Luminance	Max 5000nits
On-eye Luminance	Max 1000nits
Brightness Adjustment	5-Level Adjustment (Below the right temple)
IPD Adjustment	62mm, 65mm, 68mm (3-Level Adjustable)
Camera	2
MIC	2pcs MIC
Speaker	2 pcs speakers
Glasses Port	Type-C (The tip of the left temple)
6 DOF	Yes
Dimensions	191mm × 160mm × 46.5mm
Weight	120 g

3DoF Controller Specifications

Chip	RK3588S
OS	Android 12
RAM	16GB
ROM	128GB
Physical Interface	HDMI, Type-C, TF Card
WiFi / Bluetooth	Yes
Vibration Feedback	Linear Motor
Sensor	Gyroscope, Accelerometer, and Magnetometer
Battery	8000 mAh
Operating Temperature	0℃ to 40℃
Dimensions	64.5mm × 148mm × 18.5mm
Weight	223 g

Key Features

Advanced Birdbath optical solution delivering 47° FOV with 0.68‑inch Micro‑OLED panels achieving 3840×1200 total resolution, 90Hz refresh rate, maximum 5000nits display luminance, and on‑eye luminance up to 1000nits. Simulates a virtual giant screen of 138‑inch at 4 meters or 210‑inch at 6 meters for theater‑grade visual effects anywhere.
Three‑level IPD adjustment (62mm /65mm /68mm) fits different users, and 5‑step brightness adjustment adapts for bright outdoor and dim indoor environments.
Lightweight design at only 120g for comfortable long‑time wearing.
Built‑in stereo fisheye cameras with IMU enable 6DoF SLAM spatial positioning, reaching centimeter‑level accuracy with merely 0.3% drift and relocation time under 1 second. Integrated RGB camera supports 1080P@30fps recording.
Gesture recognition system covers 150° diagonal FOV, tracks 26 hand joints, supports tap, grasp and zoom gestures with 90% recognition accuracy for natural hands‑free interaction.
Dual‑microphone and dual‑speaker setup deliver immersive spatial audio.
Connect via Type‑C port located on the left temple for stable data transmission.
Matching portable controller runs Android 12 OS, powered by RK3588S chip with 16GB DDR RAM +128GB flash ROM, supporting SD3.0 TF‑card expansion.
Rich high‑speed interfaces: HDMI2.1 output up to 8K@60Hz; Type‑C supports DP1.4 up to 4K@60Hz, USB3.1 and PD3.0 fast charging. WiFi6 (2.4G &5G) and BT5.0 ensure stable wireless connectivity.
Integrates gyroscope, accelerometer and magnetometer sensors with linear motor for crisp vibration feedback. Built‑in 8000mAh lithium‑polymer battery with active fan cooling, max 10W power consumption.
Full physical button array includes power key, OK key, direction keys, cursor reset, back key and volume keys, supporting diversified operation modes.
Compact controller design weighing 223g with dimensions 64.5×148×18.5mm, easy to carry for outdoor and mobile scenarios.

Applications

This combo is well‑suited for private giant‑screen entertainment, mobile office, industrial visualization, education training and XR project deployment.

We provide full OEM / ODM customization service for global distributors, brand owners and enterprise clients. Sample evaluation and bulk orders are warmly welcomed.
