Android 8.1 HDMI And TYPE C Interfaces RK3399 40 Degree FOV LCOS Screen AR Smart Glasses

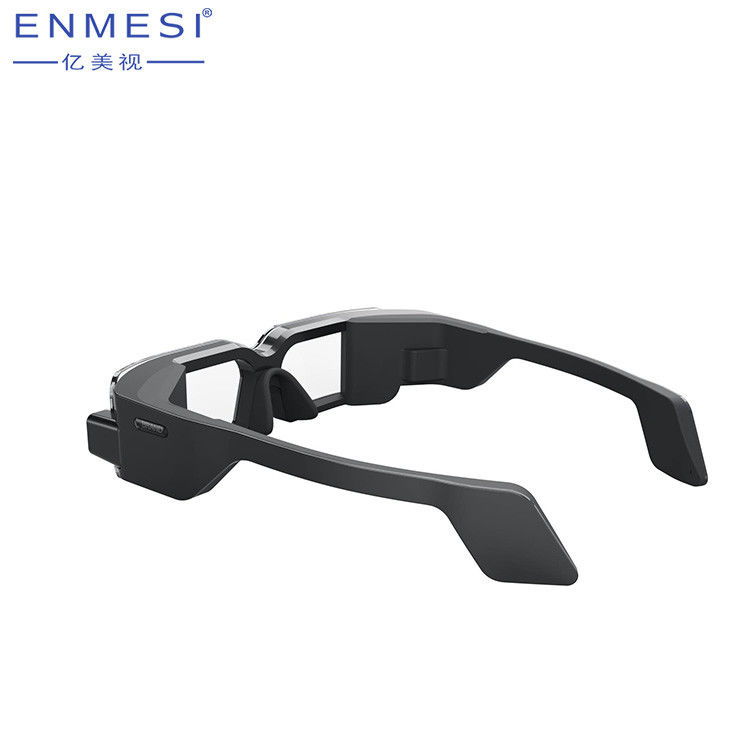

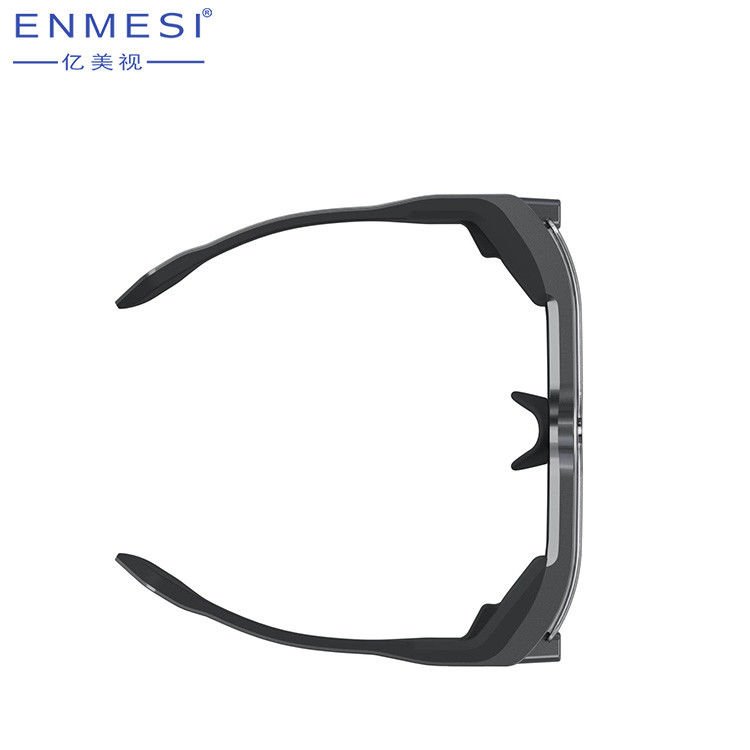

AR GLASSES DETAILS
| Product model | E626 |
| Screen virtual size | 86" (3M) |
| Resolution | 1920&1080*2 |
| Material | LCOS |
| FOV | 40° |
| Exit relief | 18mm |
| Color gamut | 24 bits |
| Camera | 5 MP |
| Interface | TYPE-C |
| Gyroscope | 3-axis accelerator, 3-axis gyroscope, 3-axis geomagnetism |
| 3D function | Support left and right format 3D function |
| Waveguide transmissivity | >82% |
| Size | 167*167*37mm |

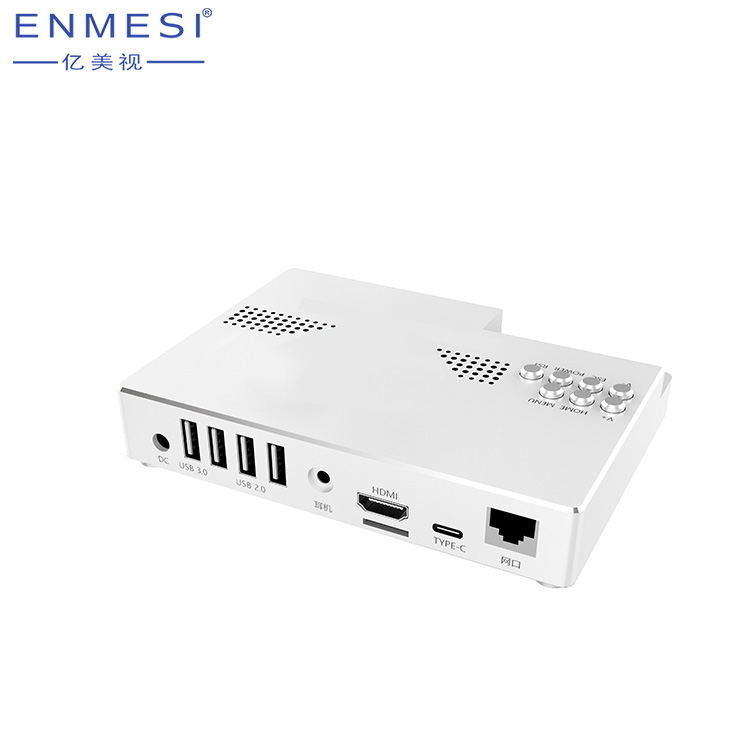

HOST MACHINE DETAILS
| CPU | Rockchip RK3399 |
| GPU | Mali-T860 OpenGL |
| Memory | LPDDR3 4GB, EMMC 32GB |
| USB interface | 3 x USB 2.0,1 x USB3.0,1 x Type_C |
| HDMI interface | Support 1080P/4K output |
| DP output | Support 4K,60fps output |
| TF card | Up to 128GB |
| Enter the power supply | DC 12V/2A |
| Operating system | Android 8.1 |
| Size | 135mm*94.8mm*16mm |
Product features
Highly integrated: Integrated USB/HDMI/WIFI/Bluetooth/TF card in one, simplifying the entire machine design.
Rich expansion interface: 3 *USB 2.0 interfaces, 1* USB 3.0 interface, 6* extensible serial ports, 12 * GPIO interfaces, 2* I2C interfaces, 1* I2S interface, 1* Type - c interface, can meet the requirements of various peripherals on the market.
High definition: Use the latest version of the light wave guide module to display stunning, lightweight. Support for 4K hard decoding playback, support for vertical playback, video split screen, scrolling subtitles, timing Switcher, USB data import and other functions.
Easy to manage: user-friendly playlist background management software, easy advertising playback management and control. Play logs to keep abreast of playback. The timing switchist is supported.
