86" Virtual LCOS Screen AR Smart Glasses HDMI Interface RK3399 128 G TF Card

86" Virtual LCOS Screen AR Smart Glasses HDMI Interface RK3399 128 G TF Card

augmented reality smart glasses

augmented reality headset

Place of Origin:

China

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC

Model Number:

E626

Contact Us
Request A Quote
Product Details
CPU:
Rockchip RK3399
Operating System:
Android 8.1
Resolution:
1920&1080
FOV:
40°
Gyroscope:
3-axis Accelerator, 3-axis Gyroscope, 3-axis Geomagnetism
Waveguide Transmissivity:
>82%
Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
3-7 working days
Payment Terms
Western Union, T/T etc.
Supply Ability
5000pcs/month
Product Description



Development Kit HDMI Interface RK3399 128 G TF Card 86" Virtual LCOS Screen AR Smart Glasses







This product consists of an AR glasses head mounted display and a development kit, multi-functional.







MAIN CONTROL BOARD DESCRIPTION





This smart industrial all-in-one board, using the RK3399 chip, is a low-power, high-performance application processor chip from Rockchip, based on the Big.Little architecture, dual-core Cortex-A72 (large core) and quad-core Cortex-A53 (small core), Mainly used in computers, personal Internet mobile devices, VR, advertising machines and other smart terminal devices.



The RK3399 has built-in multiple high-performance hardware processing engines that support video decoding in a variety of formats, with a main frequency of up to 2.0GHz.



The GPU uses the mali-T860, a new generation of high-end image processors for quad-core ARM. Smart power management circuit, ultra-thin design, Android 8.1, support commonly used external devices, interface rich, stable performance, board, WIFI/Bluetooth (support 2.4G/5G WIFI) in one, support the current popular video and picture format decoding, support HDMI HD video out, support 4K, support 4K, support 4K, H.265 hard decoding.

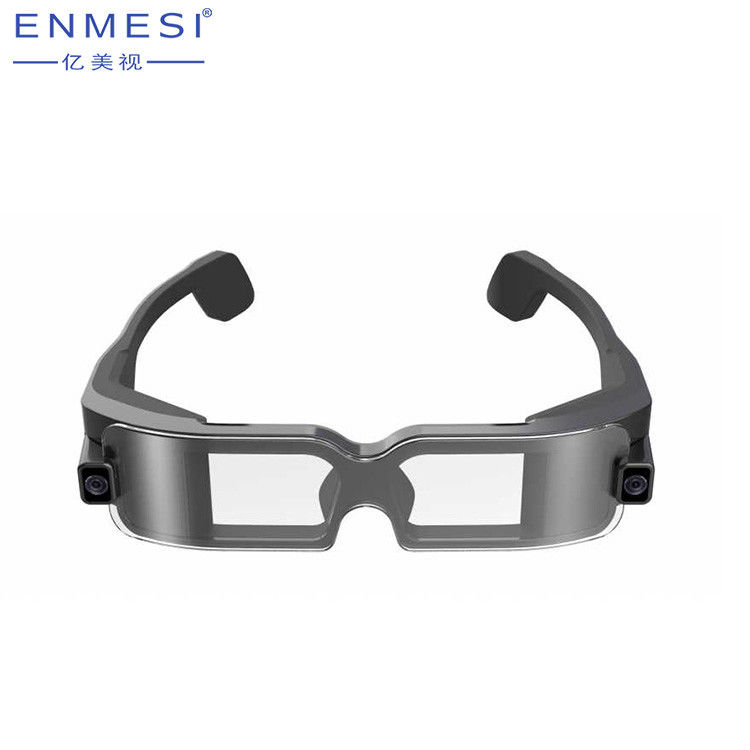

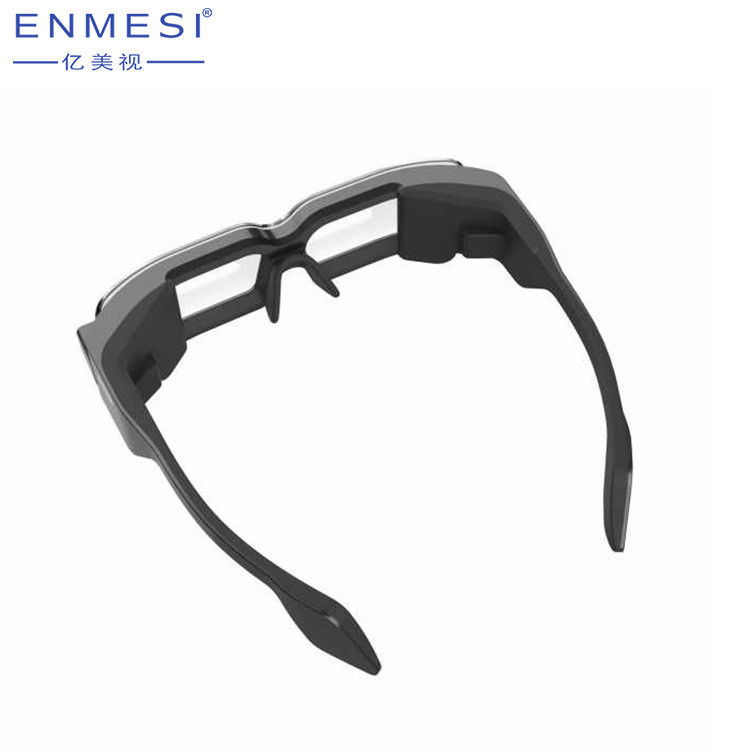

AR GLASSES DETAILS





Product model E626
Screen virtual size 86" (3M)
Resolution 1920&1080*2
Material LCOS
FOV 40°
Exit relief 18mm
Color gamut 24 bits
Camera 5 MP
Interface TYPE-C
Gyroscope 3-axis accelerator, 3-axis gyroscope, 3-axis geomagnetism
3D function Support left and right format 3D function
Waveguide transmissivity >82%
Size 167*167*37mm

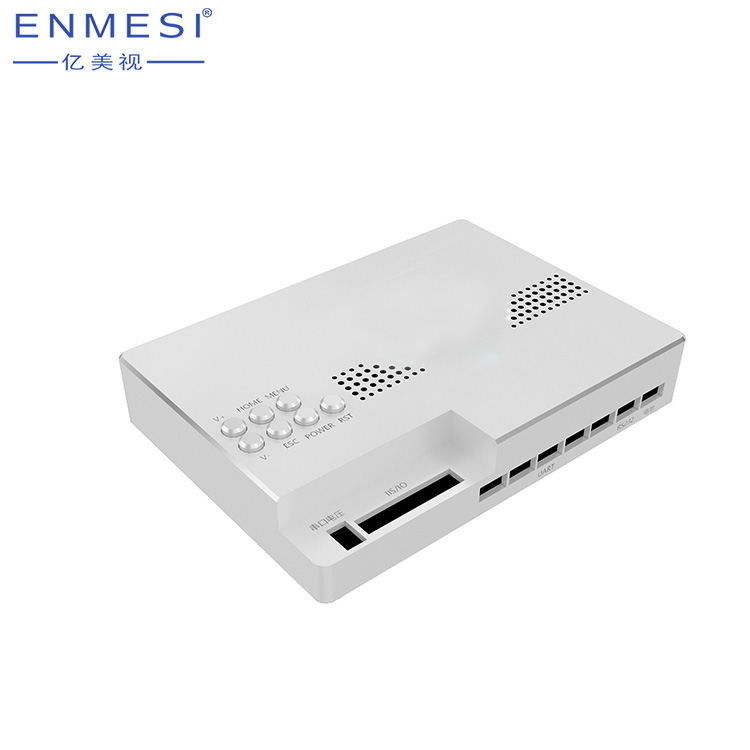

HOST MACHINE DETAILS





CPU Rockchip RK3399
GPU Mali-T860 OpenGL
Memory LPDDR3 4GB, EMMC 32GB
USB interface 3 x USB 2.0,1 x USB3.0,1 x Type_C
HDMI interface Support 1080P/4K output
DP output Support  4K,60fps output
TF card Up to 128GB
Enter the power supply DC 12V/2A
Operating system Android 8.1
Size 135mm*94.8mm*16mm









Product features





  • Highly integrated: Integrated USB/HDMI/WIFI/Bluetooth/TF card in one, simplifying the entire machine design.



  • Rich expansion interface: 3 *USB 2.0 interfaces, 1I* USB 3.0 interface, 6* extensible serial ports, 12 * GPIO interfaces, 2* I2C interfaces, 1* I2S interface, 1* Type - c interface, can meet the requirements of various peripherals on the market.



  • High definition: support for 4K hard decoding playback, support for vertical playback, video split screen, scrolling subtitles, timing Switcher, USB data import and other functions.



  • Easy to manage: user-friendly playlist background management software, easy advertising playback management and control. Play logs to keep abreast of playback. The timing switchist is supported.





INTERFACES & FUNCTIONS







Storage interface

  • TF card: Date storage, up to 128GB.
  • USB*3: HOST interface, support for data storage, data import, USB mouse keyboard, camera, touch screen, etc.

HDMI interface

  • Standard interface: HDMI data output support, up to 4k

TYPE C interface

  • Standard interface: Support for data storage and DP display

Network interface

  • Standard interface: Internet
