RK3399 Chip 1920 * 1080 * 2 Resolution LCOS Screen Type C Interface AR Smart Glasses
PRODUCT DESCRIPTION
The E626 development kit features the latest light wave guide module.
The display is stunning and lightweight.
The main control board uses the RK3399 chipset for low power consumption and high performance.
Built-in multiple high-performance hardware processing engines that support video decoding in multiple formats.
Smart power management circuit, ultra-thin design, support commonly used external equipment, rich interface, stable performance.

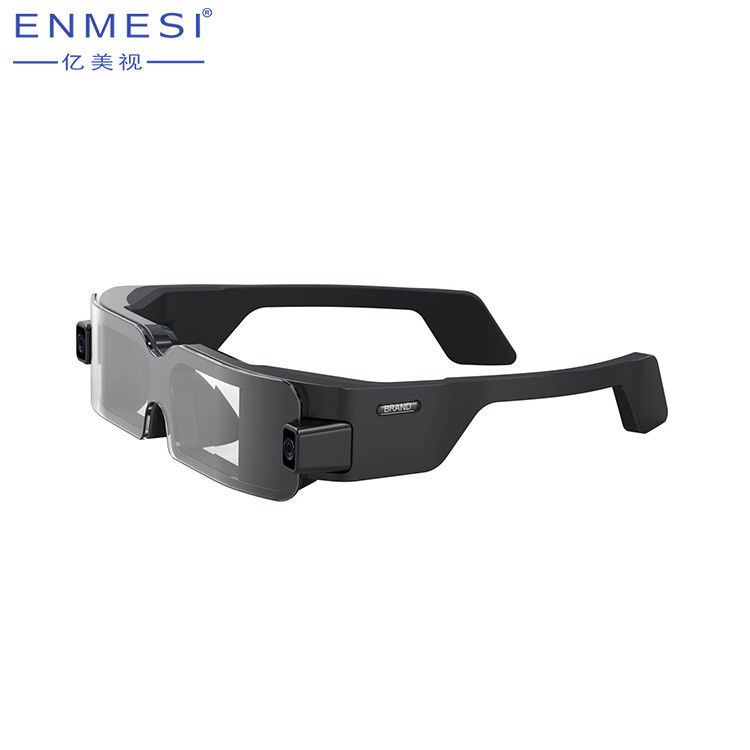

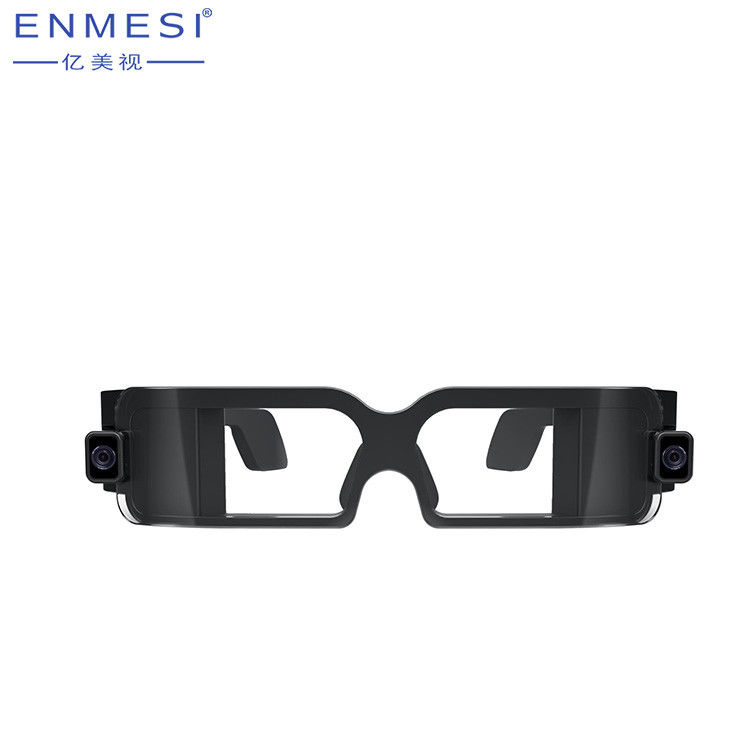

AR GLASSES DETAILS
| Product model | E626 |
| Screen virtual size | 86" (3M) |
| Resolution | 1920&1080*2 |
| Material | LCOS |
| FOV | 40° |
| Exit relief | 18mm |
| Color gamut | 24 bits |
| Camera | 5 MP |
| Interface | TYPE-C |
| Gyroscope | 3-axis accelerator, 3-axis gyroscope, 3-axis geomagnetism |
| 3D function | Support left and right format 3D function |
| Waveguide transmissivity | >82% |
| Size | 167*167*37mm |

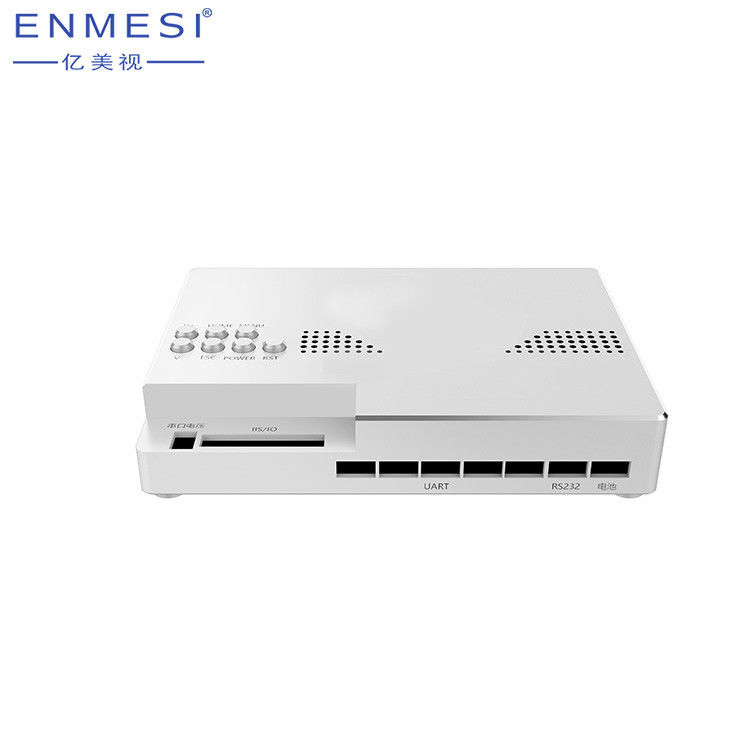

HOST MACHINE DETAILS
| CPU | Rockchip RK3399 |
| GPU | Mali-T860 OpenGL |
| Memory | LPDDR3 4GB, EMMC 32GB |
| USB interface | 3 x USB 2.0,1 x USB3.0,1 x Type_C |
| HDMI interface | Support 1080P/4K output |
| DP output | Support 4K,60fps output |
| TF card | Up to 128GB |
| Enter the power supply | DC 12V/2A |
| Operating system | Android 8.1 |
| Size | 135mm*94.8mm*16mm |
Product features
