MIPI I2C 1920×1080 RGB Head Mounted Display 0.49" HD 41 Degree

MIPI I2C 1920×1080 RGB Head Mounted Display 0.49" HD 41 Degree

1920×1080 RGB Head Mounted Display

MIPI I2C Head Mounted Display

0.49" HD VR Glasses Screen

Place of Origin:

Shenzhen,China

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS

Model Number:

R11

Contact Us
Request A Quote
Product Details
FOV:
41°
Display Material:
OLED
Resolution:
FHD 1920*1080
Brightness:
1800nits
Interface:
MIPI
Application:
AR/VR Glasses
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description

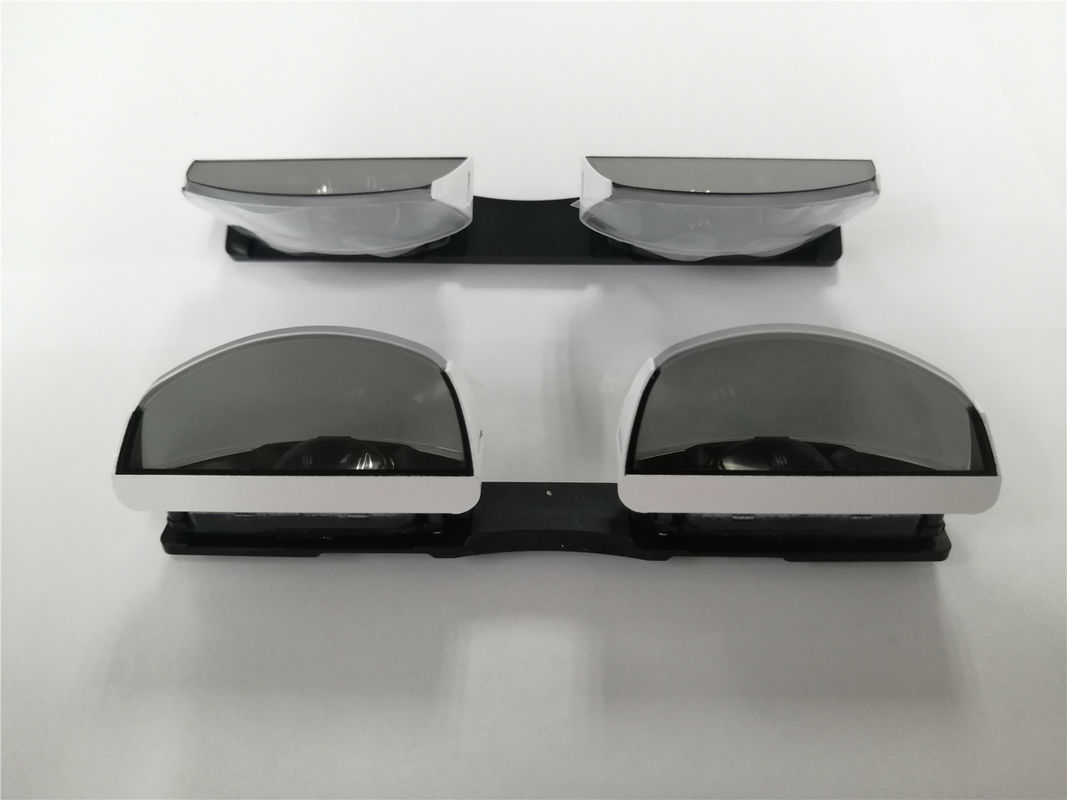

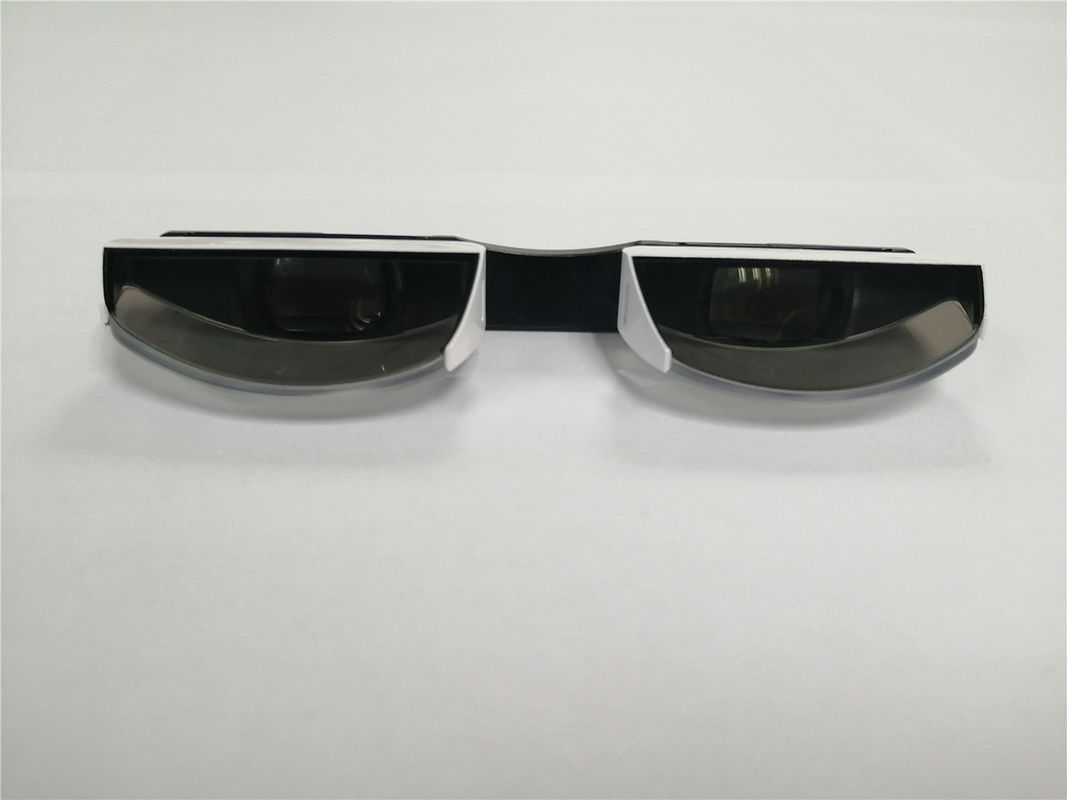

OLED Micro Display Module 0.49" HD High Resolution 41 Degree VR/AR Screen





This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
silicon transistors.
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.





1920 x 1080 Sub Pixel Rendering Resolution
Multi-Resolution (4*M, M=160~480) x RGB x (4*N, N=120~270)
Frame rate: 1920x1080 up to 90Hz
Support 8bits or 10bits color depth
Interface
-- MIPI+ I2C
-- MIPI DPHY v1.2 with one port (4 lanes), 1.0Gbps/Lane
-- MIPI DSI v1.01 R11 Video mode
-- Support VESA-DSC v1.1 in-chip decoder (3X and 3.75X compression ratio)
-- Support scaling up 1.33x(e.g., 1440x810 to 1920x1080), 1.5x (e.g., 1280x720 to 1920x1080) and 2x (e.g.,
960x540 to 1920x1080)
Scan direction selection, up or down and right or left
Orbit supported
Wide range Brightness adjustment
Sequential/Global emission
Temperature compensation
Image Anchoring




Product Details



Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.49"
Quantity 2 screens, binocular
FOV 41°
Brightness 1800 nits
Contrast Ratio
50000:1
Frame Rate
60Hz~90Hz
Interface
MIPI





Features



  • High resolution : 1920*1080*2
  • Large FOV : 41°
  • High brightness : 1800nits
  • Plug and play
  • Ultra high contrast
  • Wide color gamnt
  • Fast response speed
