0.49" HD High Resolution MIPI Interface Micro Display Module For AR/VR Glasses
This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
silicon transistors.
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.
•
1920 x 1080 Sub Pixel Rendering Resolution
Multi-Resolution (4*M, M=160~480) x RGB x (4*N, N=120~270)
•
Frame rate: 1920x1080 up to 90Hz
•
Support 8bits or 10bits color depth
•
Interface
-- MIPI+ I2C
-- MIPI DPHY v1.2 with one port (4 lanes), 1.0Gbps/Lane
-- MIPI DSI v1.01 R11 Video mode
-- Support VESA-DSC v1.1 in-chip decoder (3X and 3.75X compression ratio)
-- Support scaling up 1.33x(e.g., 1440x810 to 1920x1080), 1.5x (e.g., 1280x720 to 1920x1080) and 2x (e.g.,
960x540 to 1920x1080)
•
Scan direction selection, up or down and right or left
•
Orbit supported
•
Wide range Brightness adjustment
•
Sequential/Global emission
•
Temperature compensation
•
Image Anchoring
Product Details
| Resolution |
Full-HD 1920*1080 |
| Display Material |
OLED |
| Screen Size |
0.49" |
| Quantity |

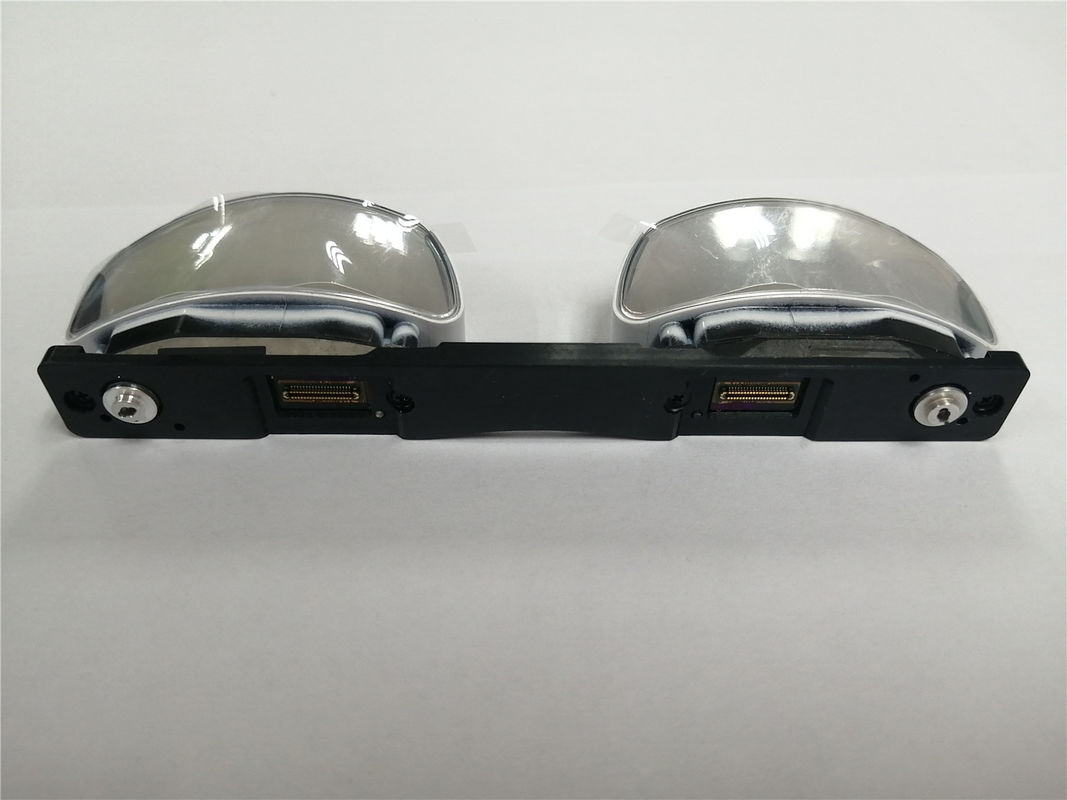

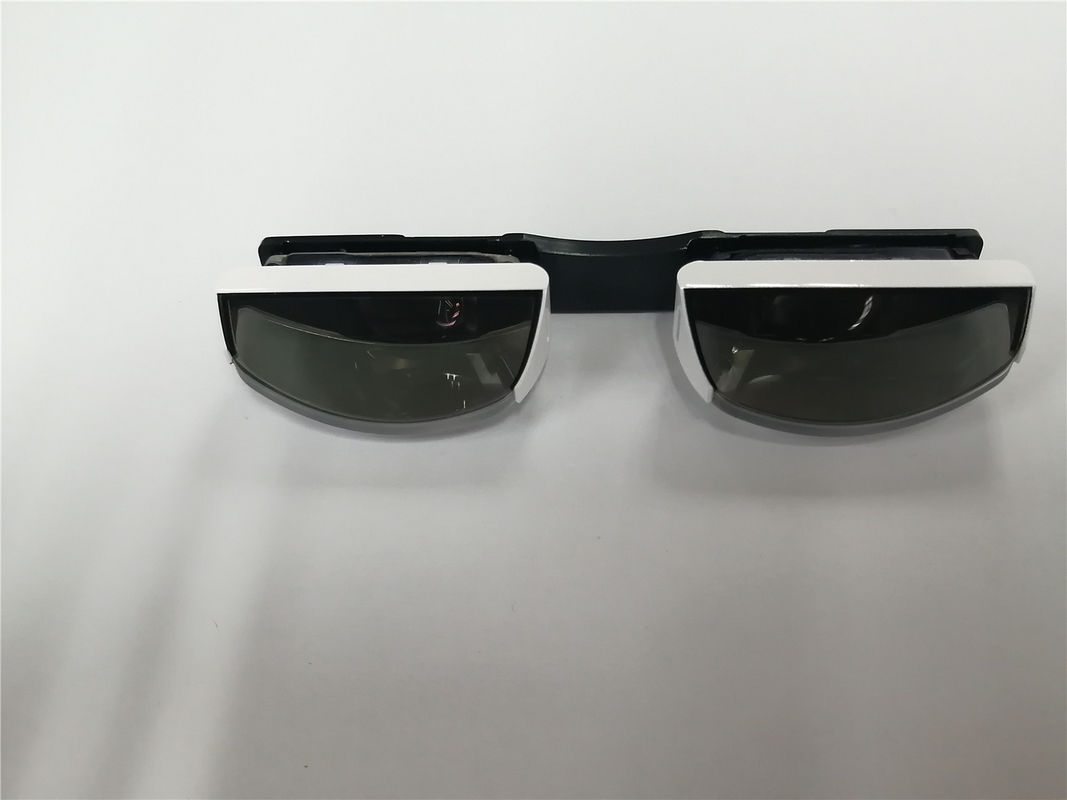

2 screens, binocular |
| FOV |
41° |
| Brightness |
1800 nits |
|
Contrast Ratio
|
50000:1
|
| Frame Rate |
60Hz~90Hz
|
|
Interface
|
MIPI
|
Features
In order to meet the needs of special environments (such as education, industry, medical treatment and security, OLED micro display modules have a highly integrated design, which can help integrate and accelerate customer product development based on micro display technology.
Package 1 high-pixel OLED micro-display chip, high-performance optical engine and image drive control circuit. Small size, can be easily and quickly applied to customer product development and design.
- High resolution
- Large FOV
- High brightness
- Plug and play
- Ultra high contrast
- Wide color gamnt
- Fast response speed
