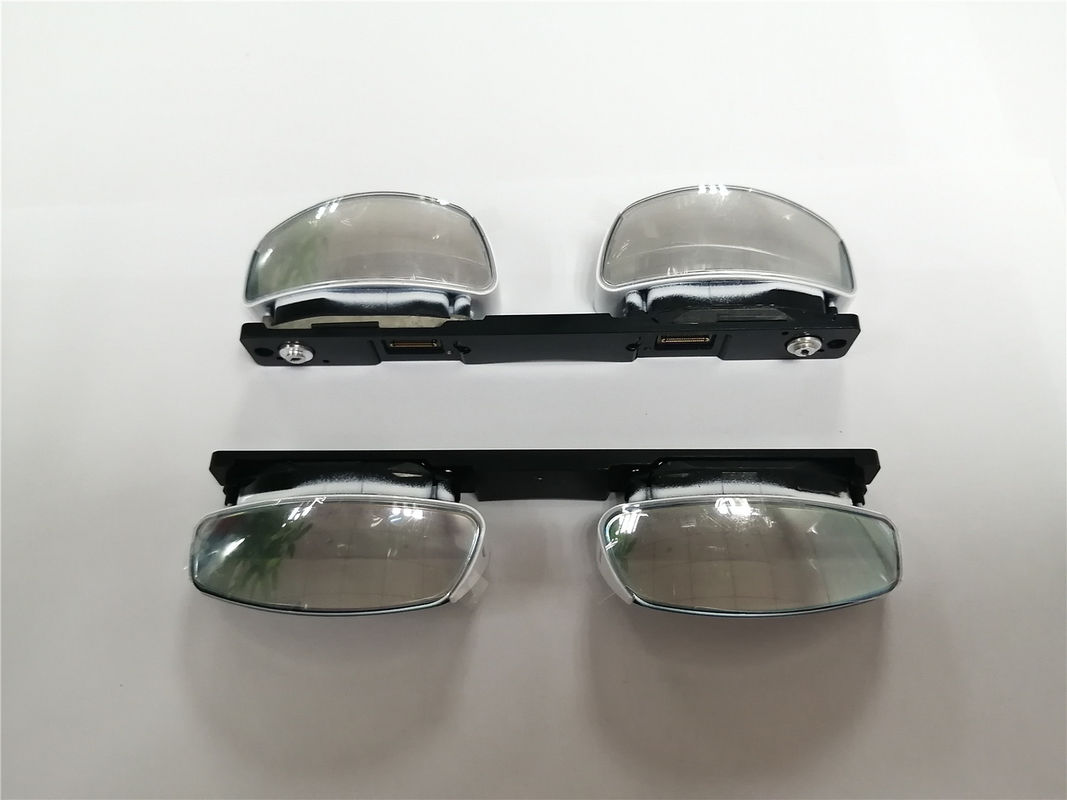

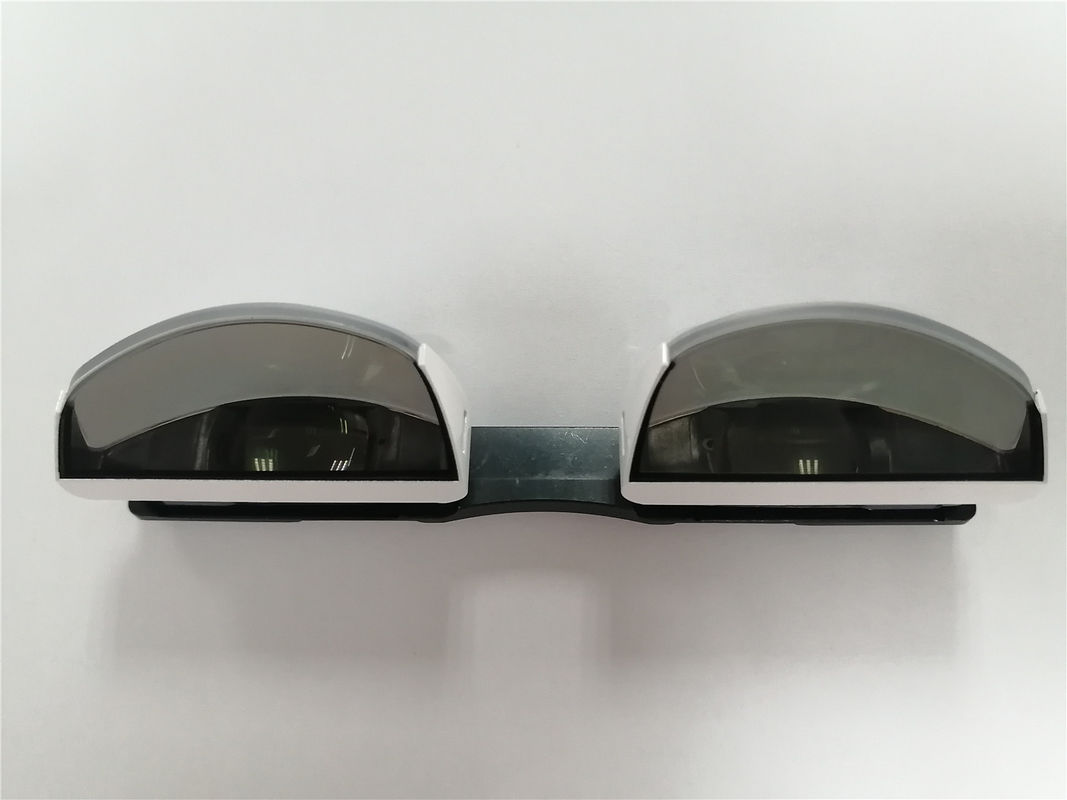

HD 1080P OLED 1800nits Brightness 0.49" Micro Display Module For AR Glasses
This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.
2 screens, binocular
Plug and play
Light and small
Ultra high contrast
Wide color gamnt
Fast response speed
The I2C-bus is for bi-directional, two-line communication between different ICs or modules.The two lines are the Serial Data Line (I2C_SDA) and Serial Clock Line (I2C_SCL). Both lines mustbe connected to a positive power supply via pull-up resistors. Data transfer can be initiated only whenthe bus is not busy. The acknowledge takes place after every byte. The acknowledge bit allowsthe receiver to signal the transmitter that the byte was successfully received and another byte maybe sent. The master generates all clock pulses, including the ninth acknowledge clockpulse.
