1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical

1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical
1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical
Basic Information
Place of Origin: Shenzhen,China
Brand Name: ENMESI
Certification: CE,FCC,ROHS
Model Number: R11
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: gift box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union etc
Supply Ability: 5000pcs/month
Get Best Price Contact Now
Model: R11 Resolution: 1920*1080 HD
Brightness: 1800nits FOV: 41°
Interface: MIPI Application: Education, Medical, Etc.
High Light:

1080P OLED Virtual Reality Display

,

1800nits OLED Virtual Reality Display

,

I2C MIPI Smart Glasses Display



1080P OLED Micro Display Module High Resolution Smart Glasses For Medical





Product Description

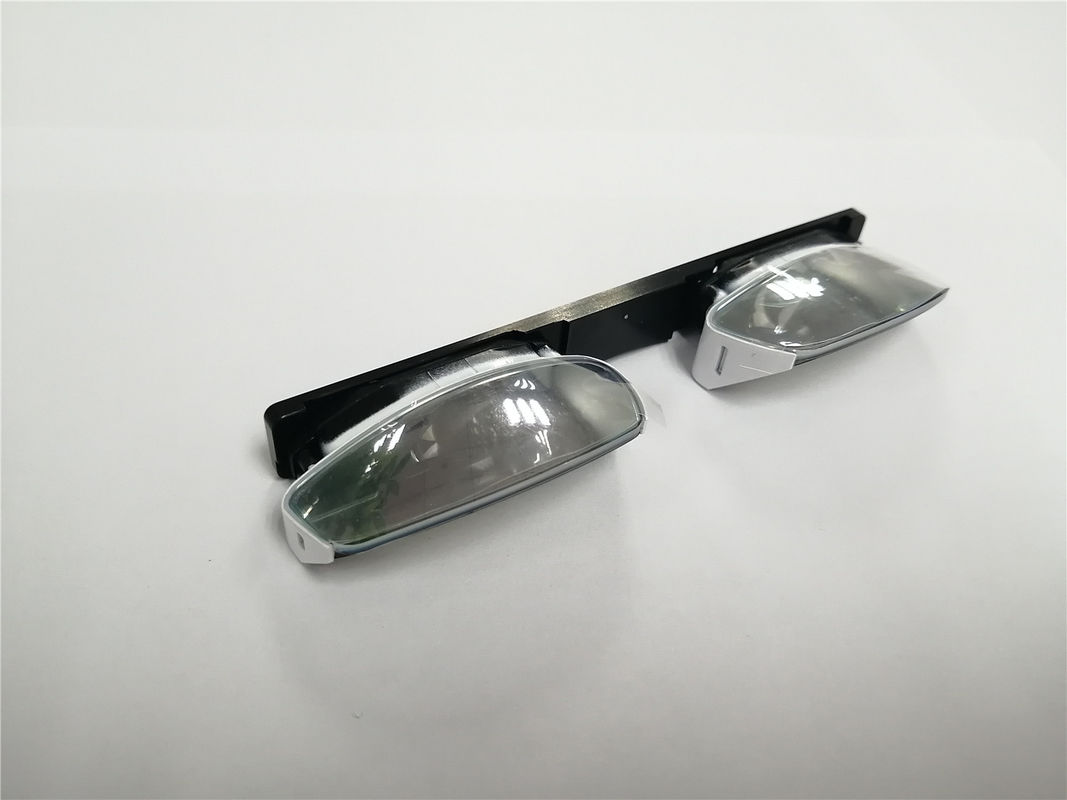

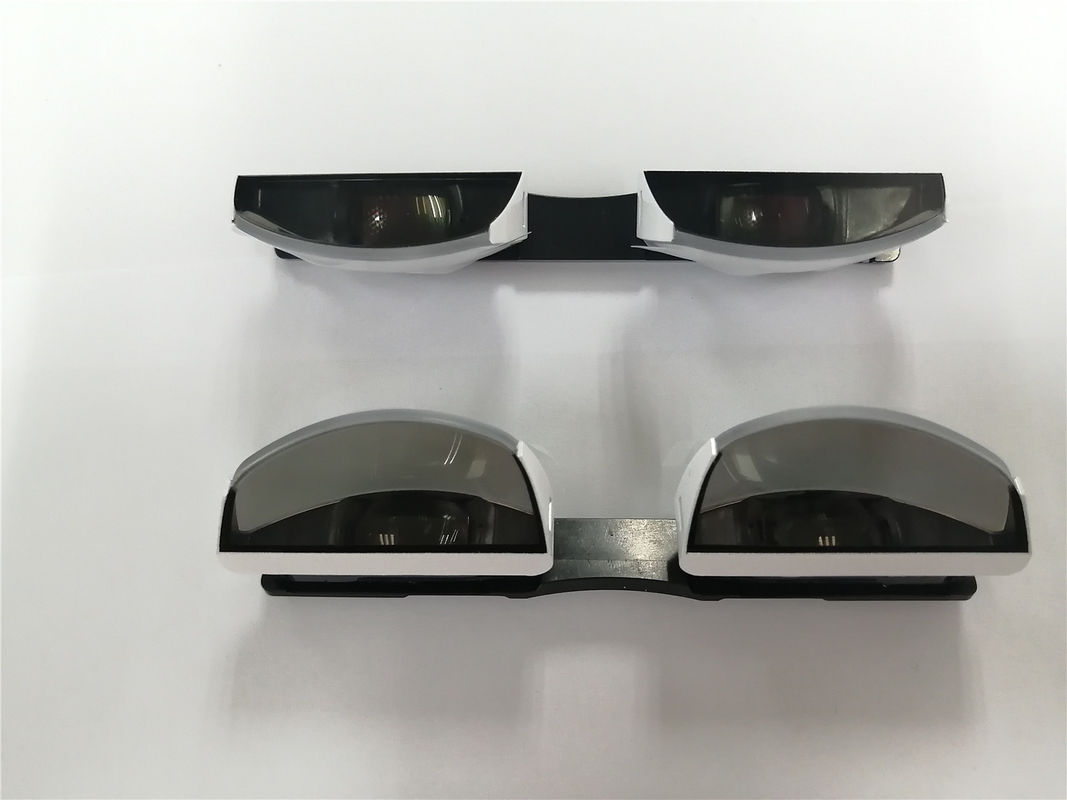

This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
silicon transistors.
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.

Applications: Augmented Reality, View finders, Head mounted displays, etc.





Product Details



Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.49"
Quantity 2 screens, binocular
FOV 41°
Brightness 1800 nits
Contrast Ratio
50000:1
Frame Rate
60Hz~90Hz
Interface
MIPI





Features



  • High resolution
  • Large FOV
  • High brightness
  • Plug and play
  • Light and small





Interface



This Micro-OLED product supports MIPI interface and inter-integrated circuit interface (I2C). MIPI or I2C is
selected by IM0, the detail interface selection by IM0 pin shows in below table.



IM0
Command Execute
Image Write
0
MIPI
MIPI
1
I2C or MIPI
MIPI



1800nits 1080P High Resolution OLED Virtual Reality Display I2C MIPI For Medical 0
