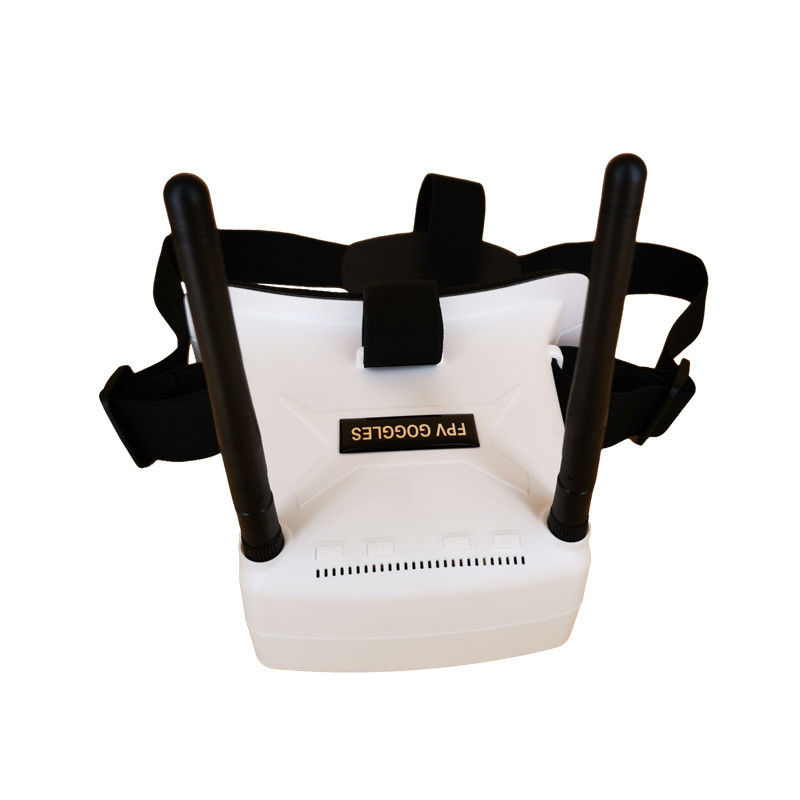

China FPV Goggles 48CH 5.8GHz FPV glass 2.7 Inch 960 X 240 Pixel LCD Display With Battery

China FPV Goggles 48CH 5.8GHz FPV glass 2.7 Inch 960 X 240 Pixel LCD Display With Battery

fpv drone and goggles

fpv drone and goggles

Place of Origin:

Shenzhen,China

Brand Name:

ENMESI

Certification:

CE, ROHS, FCC,CCC

Model Number:

F4

Contact Us
Request A Quote
Product Details
Screen Material:
TFT LCD
Resolution:
960*240
Screen Size:
2.7"
Battery:
600mAh
Power Consumption:
1.4W In RF Mode
Channels:
48channesl (6 Bands *8 Channels)
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
gift box packaging.Micro USB cable(1meter),charger(5V, 1A), user manual, warranty card, cleaning cloth, 2*rod antennas, gain 8dBi, clothing bag, headband,
Delivery Time
7 working days
Payment Terms
T/T, Western Union etc
Supply Ability
10000pcs/month
Product Description



2.7 inch 960 x 240 Pixel Display FPV Drone Goggles 5.8GHz 48CH FPV Goggles With Battery






Product Details




Screen Size 2.7 inch
Material TFT LCD
Resolution 960*240
FOV Field of view: 0/120 degrees (horizontal/vertical)
Power consumption 1.4W in RF mode
Channels 48channesl (6 bands *8 channels), support channel auto-searching
Battery 600mAh reachargeable Li-battery






Description



  • It can be used as a display
  • Unmanned vehicles
  • Night vision and such other products with 5.8G
  • Dual antenna reception, signal stabilization, for drone via 5.8G receiver
  • Special design, soft and comfortable to wear



Product Features





  • Small size (150mmX120mmX60mm) and light weight (145g) ;
  • Low power consumption,operating current 300-350mA;
  • Double antenna reception to make the signal more stable;
  • RaceBand 48 channel, automatic search channel;
  • Built-in 3.7V/600mAh high-capacity Li-ion polymer Battery;
  • 2.7 Inch 960*240 dot high brightness(300cd / m²)TFT LCD screen;
  • Built-in super sensitiveness 5.8GHz 48ch receiver, especially with RaceBand;
  • Universal USB charging interface;
  • Real-time video return, Very low time-delay;
  • Application for Remote control aeronautical model, industrial drones, crossover machines, various consumer drones, various vehicle models.



Product Specification



  • Screen Size: 2.7 inches
  • Resolution: 960*240 pix
  • Brightness : 300cd / m2 of high brightness, for outdoor use
  • Field of view: 0/120 degrees (horizontal / vertical)
  • Magnification: 3.5x
  • Distortion: No distortion
  • Material: PMMA
  • Transparency: > 98%
  • Power consumption: 1.4W
  • RX: Built-in 48CH 5.8G Hz
  • Working temperature: -10℃-60℃
  • Storage temperature: -20℃-90℃
  • Product weight: 145 g
  • Product size: 150mmX120mmX60mm

China FPV Goggles 48CH 5.8GHz FPV glass 2.7 Inch 960 X 240 Pixel LCD Display With Battery 0



Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
