RC Glasses 300 Nits FPV Drone Goggles 48CH F2 Inch Binocular Display 3.7v 1000mAh

RC Glasses 300 Nits FPV Drone Goggles 48CH F2 Inch Binocular Display 3.7v 1000mAh

fpv drone and goggles

fpv drone and goggles

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Screen Quatity:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gift box packaging.Micro USB cable(1meter),charger(5V, 1A), user manual, warranty card, cleaning cloth, 2*rod antennas, gain 8dBi, clothing bag, headband,
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
Product Description



2 Inch Binocular Display RC FPV Glasses 300 Nits TFT 48CH FPV Drone Goggles With AV IN



FPV in the international understanding is relatively noble and scientific and technological entertainment, not only no one to add a map, the general remote control model is by the manipulator holding the remote control, looking at the distant model to control its posture, complete a variety of actions.


This FPV monitor is a medium sized 2" screen with a super bright TFT LCD (Liquid Crystal Display) and 5.8GHz 48CH diversity receiver, built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 300cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. Easily watch perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.


Product Details


Screen Size 2 inch
Material TFT LCD
Resolution 480*360
FOV Field of view: 0/120 degrees (horizontal/vertical)
Power consumption



Frequency 5.8GHz,48CH
IPD 60-68mm(Adjustable)
Battery 3.7v 1000mAh Li-ion




Specification parameters


Screen: 2 inch TFT LCD 480*360 pix *2 display,300cd/㎡

Lens: FOV:120°, Magnification: 3.5X, Material: PMMA,  Vitreousness: >93%

Battery: 3.7v 1000mAh Li-ion

Consumption: 3.7V/400-600mAh. 1.5W-2.2W


Ports: 3.5mm AV in, Micro USB(Support DC5V power charge),TF card and up to 32 Gb

IPD: 60-68mm(Adjustable)

Working temperature: -10℃-50℃

Storage temperature: -20℃-90℃

Weight: 200g

Dimension: 152mmX92mmX70mm




Product Features

  • Small size: 2 inch, 2 display.
  • Adjustable pupil distance
  • Memory expandable, TF card and up to 32 GB
  • Built-in integrated lipo battery
  • Channel Auto searching ,selection via button
  • Best Channel Receiption via Antenna Auto-switching
  • 5.8GHz and AV in,48 Channels Receiver
  • Video outputs and DC output to connect and power other equipment
  • High resolution 960x240,Bright 300cd/m²
  • No blue screen
  • Compable with all 5.8GHz transmitters 48ch, such as Fatshark, Boscam
  • Not affected by 2.4ghz radio controller

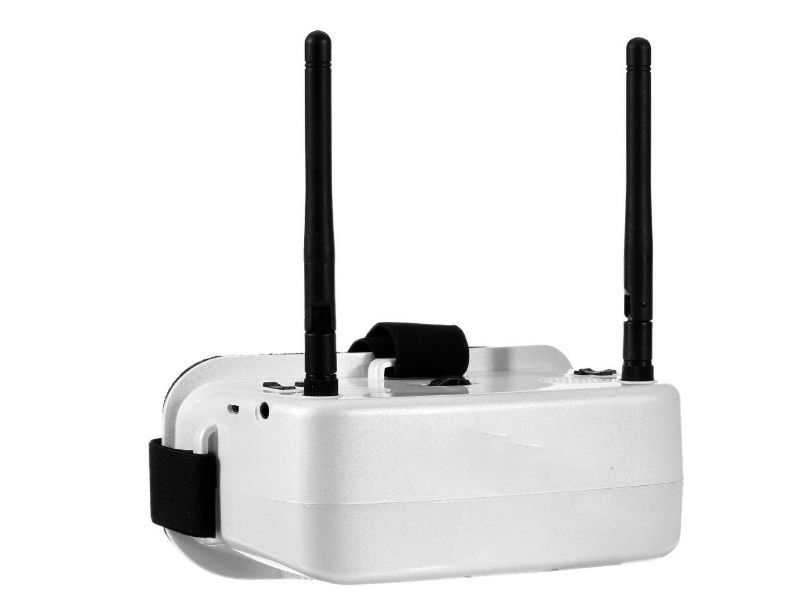

RC Glasses 300 Nits FPV Drone Goggles 48CH F2 Inch Binocular Display 3.7v 1000mAh 0



About us



Enmesi is a professional solution provider for FPV glasses integrated solutions in the fields of drone via 5.8G receiver ,unmanned vehicles,night vision and such other products with AV in.


According to the different needs of customers, support for different sizes,specifications customization .Enmesi can provide customers with different solutions for smart glasses, providing OEM and ODM services.


Support for small orders!

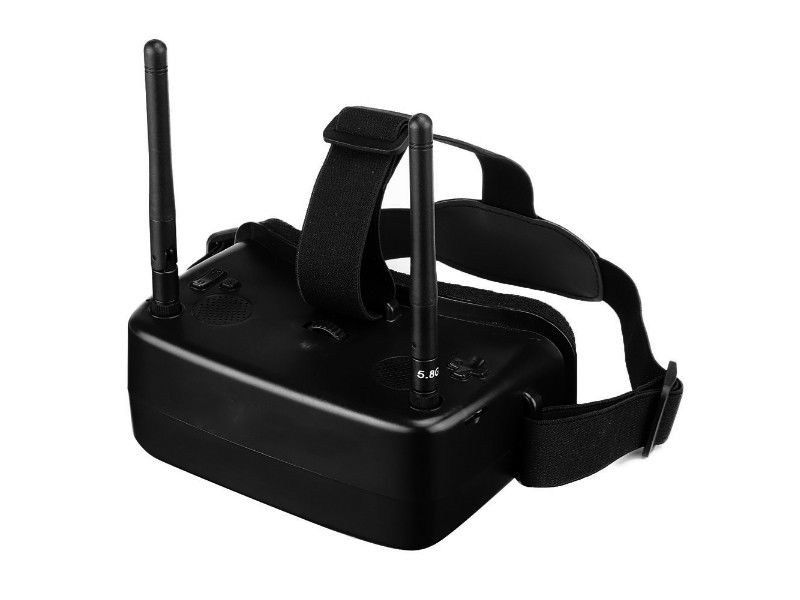

RC Glasses 300 Nits FPV Drone Goggles 48CH F2 Inch Binocular Display 3.7v 1000mAh 1



Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
