Smart Glasses Overall Solution
| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | ENMESI |
| Certification: | CE, ROHS, FCC,CCC |
| Model Number: | F6 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | gift box packaging.Micro USB cable(1meter)，charger(5V, 1A), user manual, warranty card, cleaning cloth, 2*rod antennas, gain 8dBi, clothing bag, headband, |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union etc |
| Supply Ability: | 10000pcs/month |
| Screen Size: | 2" | Channel: | 48 Channels |
|---|---|---|---|
| Screen Material: | TFT LCD | Resolution: | 480*360 |
| High Light: | fpv drone and goggles,fpv drone and goggles |
||

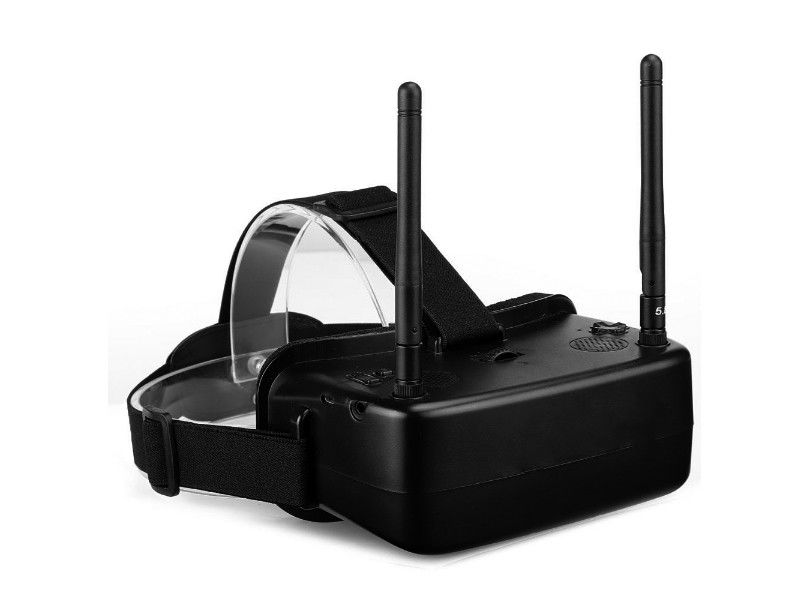

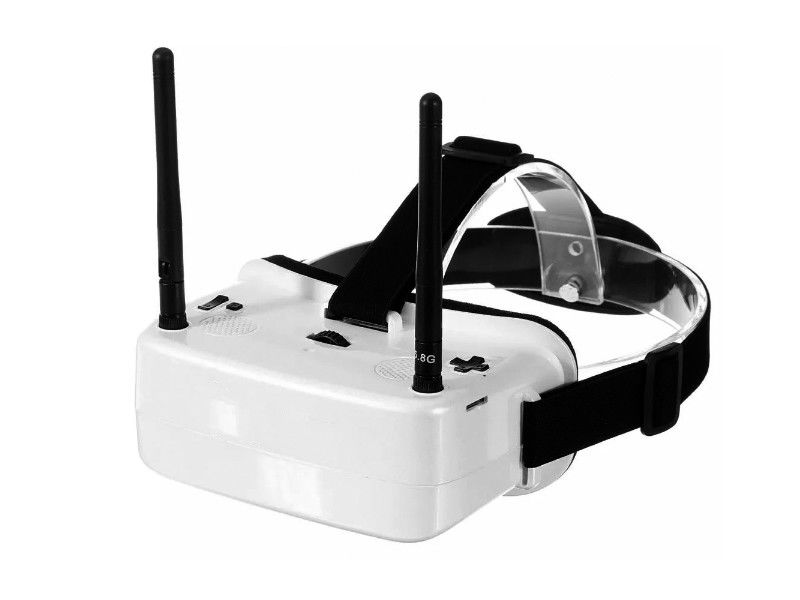

Mini 2 Inch Binocular Screen FPV Glasses 480×360 pix AV IN FPV Drone Goggles
The following links are similar products:
https://mao.ecer.com/index.php?r=product/edit&pid=11735458
https://mao.ecer.com/index.php?r=product/edit&pid=11743375
FPV, known as the "first person view", is a new way to play a screen-control model based on a remote-controlled aviation model or a vehicle model with a wireless camera backhaul device.
The general remote control model is a remote control by the manipulator holding the remote control, looking at the distant model to control its posture, complete a variety of actions. But how can we be more exciting and authentic? With the miniaturization of electronic devices in recent years, we have had the opportunity to install wireless video transmission devices on models with very limited volume and load, enabling the first way to manipulate the model from the first perspective. The effect is that you can be physically able to manipulate your model plane or car from the driver's point of view and soar into the sky and soar on the ground without worrying about any risk.
Product Details
| Screen Size | 2 inch |
| Material | TFT LCD |
| Resolution | 480*360 |
| FOV | Field of view: 0/120 degrees (horizontal/vertical) |
| Power consumption |
1.5W-2.2W |
| Frequency | 5.8GHz,48CH |
| IPD | 60-68mm(Adjustable) |
| Battery | 3.7v 1000mAh Li-ion |
Product Features
User Manual
48 Channel
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band-A | 5645 | 5665 | 5685 | 5705 | 5885 | 5905 | 5925 | 5945 |
| Band-B | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band-C | 5725 | 5745 | 5765 | 5785 | 5805 | 5825 | 5845 | 5865 |
| Band-D | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band-E | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band-F | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Our services
Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
