Mini FPV Drone Goggles 48 Channesl 4.3" Screen Short Delay Dual Antenna 5.8G

1pcs
MOQ
Negotiable
Price

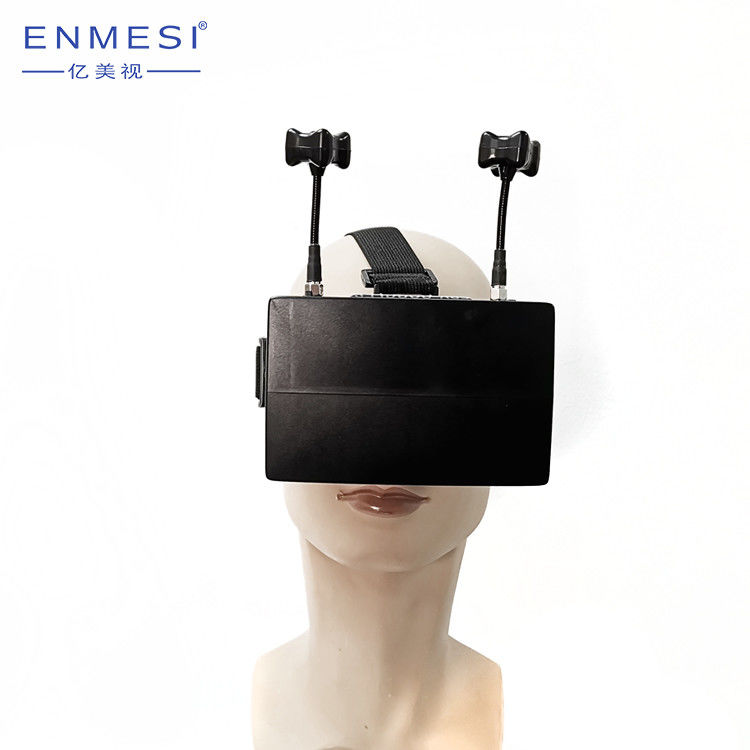

Mini FPV Drone Goggles 48 Channesl 4.3" Screen Short Delay Dual Antenna 5.8G
Features Gallery Product Description Request A Quote
Features
Specifications
Module: Single Module And Dual Antenna
Receive: 5.8G & AV IN
Screen Size: 4.3"
Materials: TFT
Resolution: 480*272
Delay: Less Than 30ms
High Light:

drone fpv headset

,

fpv drone and goggles

Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: ENMESI
Certification: CE, ROHS, FCC,CCC
Model Number: F2-A43
Payment & Shipping Terms
Packaging Details: gift box packaging, 1pcs:145*162*98(mm).Micro USB cable(1meter),charger(5V, 1A), user manual, warranty card, cleaning cloth, 2*rod antennas, gain 8dBi, clothing bag, headband, AV cable(40cm).
Delivery Time: 7 work days
Payment Terms: T/T, Western Union etc
Supply Ability: 5000pcs/month
Product Description

Mini 48 Channesl 4.3 Inch Short Delay Dual Antenna FPV Drone Goggles With 5.8G



Unmanned Aerial Vehicle generally refer to the drones with cameras, and those without cameras can only be regarded as toys. It is generally divided into two parts, one part is the remote control, the other part is the display part which is completed by the image transmission module. The signal transmitter is connected to the camera on the drone, and the signal receiver is in the hands of the player, and some are on the remote controller. Signal receive generally needs WIFI and 5.8GHZ radio signal, but the distance of WIFI is relatively not far, the player can use mobile phone to receive signals, but it will not be clear in the outdoor; and the 5.8GHZ radio signal, the distance can reach 2KM. It is best if within a few hundred meters, so most drones use 5.8GHZ radio signal.





Product features

Extremely short reception delay; High configuration:fast running speed,long duration,product light,clear screen,large storage capacity; Beautiful design; Comfortable:not only is the area in contact with the glasses comfortable,but the process of using the product is also comfortable; Cost-effective.



Product Details:


Screen Size 4.3inch
Material TFT
Resolution 480*272
FOV Field of view: 0/120 degrees (horizontal/vertical)
Power consumption 1.5W in HD mode, 2.3W in 5.8G mode
Channels 48channesl (6 bands *8 channels), support channel auto-searching
Battery 600mAh reachargeable Li-battery
Size 150mmX82mmX145mm
Weight 280g




Product Specification



  • Screen Size: 4.3 inches
  • Resolution: 480X272 pix
  • Brightness : 500cd / m2 of high brightness, for outdoor use
  • Field of view: 0/120 degrees (horizontal / vertical)
  • Magnification: 2.8x
  • Distortion: No distortion
  • Material: PMMA
  • Transparency: > 93%
  • Power consumption: 0.6W in AV In mode, 1.8W in RF mode
  • RX: Built-in 40CH 5.8G HZ, A/V auto-searching receiver
  • DUO Design: Combines the best performance of a circular combination with the RX and allows two types of antennas at the same time, Omni directional / Straight Antenna
  • Working temperature: -10℃-80℃
  • Storage temperature: -20℃-90℃
  • Product weight: 280g
  • Product size: 150mmX82mmX145mm



48 channles as following




  Channel 1 Channel 2 Channel 3 Channel 4 Channel 5 Channel 6 Channel 7 Channel 8
Brand A 5645 5665 5685 5705 5885 5905 5925 5945
Brand B 5740 5760 5780 5800 5820 5840 5860 5880
Brand C 5725 5745 5765 5785 5805 5825 5845 5865
Brand D 5733 5752 5771 5790 5809 5828 5847 5866
Brand E 5658 5695 5732 5769 5809 5843 5880 5917


Mini FPV Drone Goggles 48 Channesl 4.3" Screen Short Delay Dual Antenna 5.8G 0


Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
