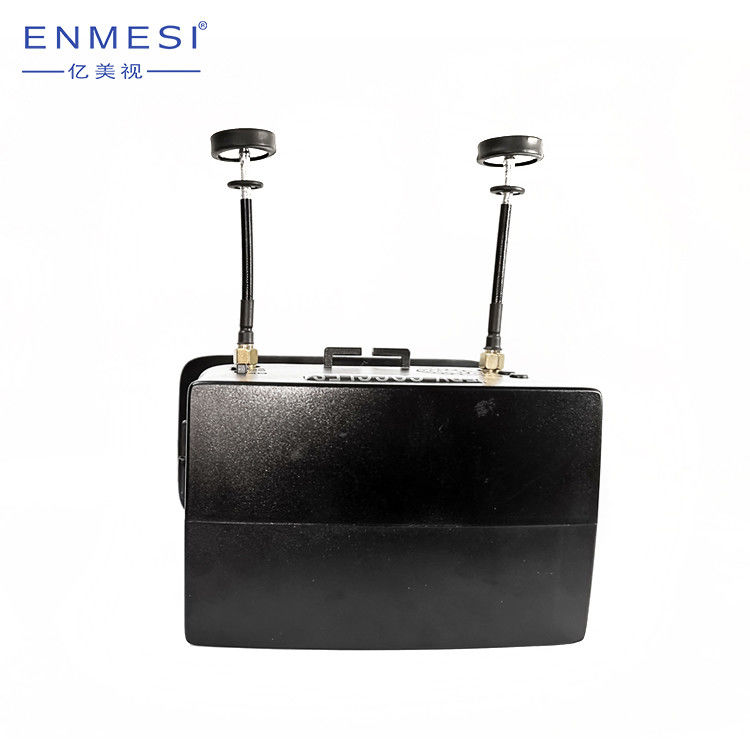

5.8G AV IN Mini FPV Drone Goggles 4.3 Inch 0/120 FOV 480 * 272 Video Glasses

5.8G AV IN Mini FPV Drone Goggles 4.3 Inch 0/120 FOV 480 * 272 Video Glasses

drone fpv headset

fpv drone and goggles

Place of Origin:

Shenzhen,China

Brand Name:

ENMESI

Certification:

CE, ROHS, FCC,CCC

Model Number:

F2-A43

Contact Us
Request A Quote
Product Details
Module:
Single Module And Dual Antenna
5.8 G & AV IN:
Yes
Screen Size:
4.3"
Materials:
TFT
Channles:
48CH
Delay:
Less Than 30ms
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
gift box packaging, 1pcs:145*162*98(mm)
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
5000pcs/month
Product Description

5.8 G AV IN FPV Mini Goggles 4.3 Inch 0/120 FOV 480 * 272 FPV Video Glasses For Drone





Product features





  • The menu is rich in functionality and easy to understand. Support customer feature customization.



  • 5.8G receiving module, the system according to the signal Strength intelligent selection, free switching, customer operation is convenient, the system is more stable.



  • A variety of types of antennas, single-module dual antennas, dual function to receive signals, stronger signal, more stable.



  • Can be AV and 5.8G to receive video, AV mode power consumption is 0.6W,5.8G mode power consumption is 1.8W.



  • 48 Channel, search channel fast, there are two ways of manual search and automatic search.



  • Use Display scale 16:9 HD screen, resolution of 480*272, clear picture quality.



  • Short delay, only about 10ms delay.



  • New design of the standard mini USB charging interface, built-in advanced fast charge chip, charging more convenient, fast, support mobile power fast charge.







Product Details:



Screen Size 4.3inch
Material TFT
Resolution 480*272
FOV Field of view: 0/120 degrees (horizontal/vertical)
Power consumption 1.5W in HD mode, 2.3W in 5.8G mode
Channels 48channesl (6 bands *8 channels), support channel auto-searching
Battery 600mAh reachargeable Li-battery
Size 150mmX82mmX145mm
Weight 280g





5.8G AV IN Mini FPV Drone Goggles 4.3 Inch  0/120 FOV 480 * 272 Video Glasses 0



1 ----- Power ON/OFF

2 ----- Power indicator light, turns blue after booting

3 ----- S, Channels switching

4 ----- AV, AV input interface

5 ----- USB MICRO USB charging interface

6 ----- Charging indicator light, turns red when charging, and turns off when full charged

7 ----- B, Bands switching

8 ----- CH, channel auto-searching





1 Power switch ● Pull the switch to turn on /off
2 Power indicator ● Turns blue after booting
3 S ● Click button “S” to switch channels between channel “1-8” when in 5.8G mode.
● Used as “+” when in setting menu
4 AV ● Switch to AV mode automatically when connect with AV devices, and will back to 5.8G mode when disconnect with AV device
5 USB ● For charging (DC 5V power)
6 Charging indicator light ●Turns red when charging, turns off when full charged
7 B

●Click button “B” to switch bands between “A,B, C, D, E, F” when in 5.8G mode

● Used as “-“ when in Setting menu

8 CH

●Click button “CH” to bring up Setting menu, and then click again to go to next menu.

● Long press to search channel automatically

















































Application





  • Remote control aeronautical model.



  • Industrial drones,crossover machines,various consumer drones.



  • Various vehicle models.









Tag: FPV drone goggles, FPV video smart glasses, crossover machines FPV.
