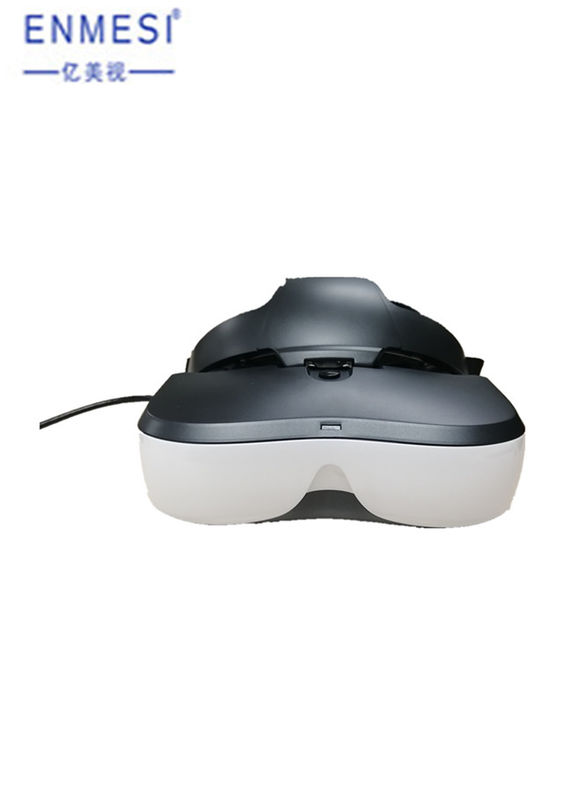

Aspheric Lens Virtual Reality 3D Head Mounted Display TFT LCD For Industrial Production

Aspheric Lens Virtual Reality 3D Head Mounted Display TFT LCD For Industrial Production

Industrial Production 3D Head Mounted Display

3D Head Mounted Display TFT LCD

Aspheric Lens 3D Virtual Reality Display

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Display Screen:
TFT Material (IPS Technology)
2.6 Inch
Gravity Acceleration, Gyroscope
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gift box
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union etc
Supply Ability
Product Description


TFT LCD Dual Display Virtual Reality 3D Head Mounted Display For Industrial Production



Product details



Main Parameters Display Screen TFT Material (IPS Technology)
Dimension 2.6 inch
Resolution 1280*800*2
Refresh Rate 60HZ
Lens Aspheric
Sensor Gravity acceleration, gyroscope
Adjustment Myopia diopter Adjustment (binoculus synchronization), Pupil distance adjustment
Hardware Parameters CPU RK3288
Number of Cores Quad-core Cortex-A17
Basic Frequency 1.8GHz
GPU mali-T764
ROM Size 8-32GB
Operating System Android 5.1
TF Card Maximum support 32G
Bluetooth BT4.0
WIFI 2.4G 5G double frequency
Built-in Battery 2899mAh
Play Support Video Support 4K H.264/H.265 1080P VP8 MVC
Audio Support MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV etc
Interface Power Input DC 5V-2A
2×USB Support USB data read
1×Earphone Audio output, 3.5mm interface
Power Adapter DC 5V-2.5A




Product features


● Large screen :1280*800


Large FOV :50 degrees


● Clear picture.


Ultra-light and portable.


Can be based on personal pupil distance to fine-tune the distance of two lenses,improve the use of comfort.





1. Television:

     With TVB acceptance function, or directly with Mobile TV CMMB, DVB-T or dmb-th handheld digital TV docking.

     Premier League, NBA, no longer have to worry about the division is basketball or head, Passion Sports.


2. Film and television:

    Connect MP4, MTV, concerts, the latest hit spicy thriller blockbuster, enjoy a complete visual feast.


3. Medicine:

    In brain surgery, microsurgical surgery, as well as remote diagnosis and remote surgery, the use of helmet display as a microscopic display of the surgical site, combined with space navigation technology, can accurately locate the site of the lesion, at the same time can reduce the strength of the doctor's work, improve the success rate of surgery.
    With the development of small, high-resolution flat panel display parts, the development of helmet displays is becoming more and more rapid, helmet display in these areas of application, in the future display market occupies a growing share.




Our services

1,Samples can be sent out very soon.
2, Different models for your reference.
3, We provide perfect solution for customers according to your requirement such as the size, the color of the frame.
4, We can open new mold for your own design.logo,frame.etc
5, Your inquiry related to our products or prices will be replied in 24 hours.
6, We will protect your sales area, idea of design and all your private info.
7, For our Active shutter glasses,we have 1 year warrenty.
8, Small order is welcome.
