Place of Origin:
CHINA
Brand Name:
ENMESI
Certification:
CE,FCC,ROHS
Model Number:
F3

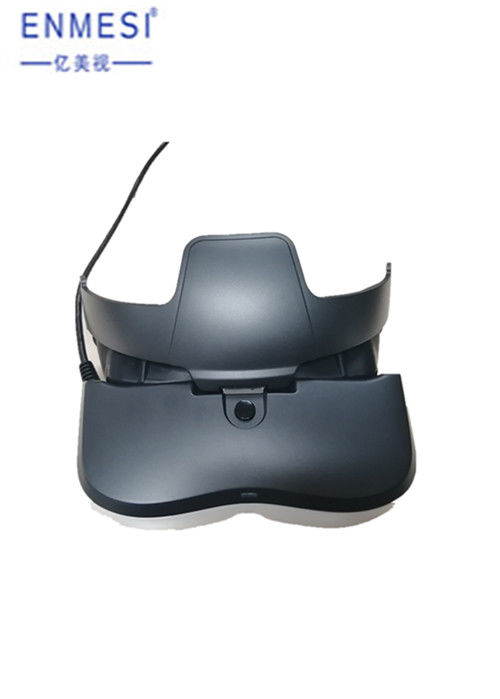

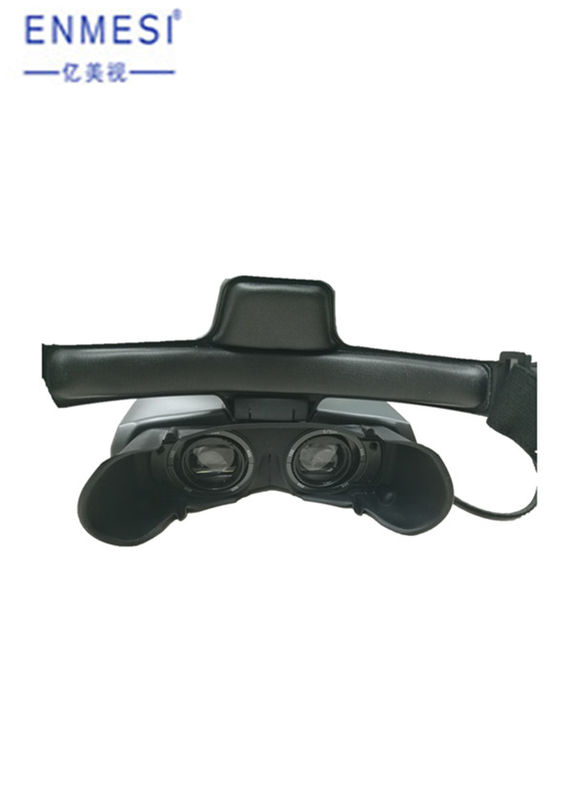

FOV 50 Degree Helmet 1280*800 Resolution TFT LCD Screen Resin Lens Head Mounted Display With HDMI
The head-mounted display is also known as the glasses type display, and the mobile theater. The working principle is to enlarge the image on the ultra-fine display through the optical system (mainly precision optical lens), and then present the large-screen image in the viewer's eyes. Since it looks like glasses, so also called video glasses. Video glasses solves perfectly the contradiction between portable audio and video equipment and powerful ultra-portable electronic equipment, that is the contradiction between delicate volume and big display. Therefore, in the future, it will certainly be widely used more and more.
Product Details:
| HDMI | Yes, support HDMI input |
| Resolution | 1280*800 |
| Display Material | TFT LCD |
| Screen Quantity | Dual Screen |
| Screen Size | 2.6", virtual 200" |
| Brightness | 500cd/m2 |
| Lens material | Resin |
| FOV | 50 degree |
| Pupil Distance | 60-70(mm), can be adjusted independently for left and right eye |
| Myopia diopter | 0--500 degree, can be adjusted independently for left and right eye |
| Operation way | Buttons |
| Power Consumption | <3.3W |
| Size | 170 ×57 ×76(mm) |
| Weight | 365g |
Connect the HDMI device
a. Connect the HDMI cable to the HDMI interface of the multimedia player (such as Sony Blu-ray DVD player, PS4, computer with HDMI output, etc.).
b. Start the multimedia player and "This device" will display the multimedia player screen synchronously. The following is the "SONY DVD" screen.
Applications
a.Virtual Reality Game:Virtual reality is a completely "real" environment that is created virtually. The virtual reality game is the reality that allows you to be immersive in the game, letting you perceive that the game is happening. You are one of the role in the game. For example, when you hold a gun(Simulation gun) in your hand, and pull the trigger, you can see it in the game immediately and the body can feels it.
b.Audio and Video Entertainment:it supports 3D format and 360-degree video play, can allow the wearer to be immersive in the situation. Last, the video glasses provides a very private space for wearer, even if in the plane or train, the wearer also can enjoy the film and no need to worry about to bother others.
c. Medical Usage
With the development of medical technology, devices such as endoscopes have been developed on a large scale, and video glasses have become excellent display devices for the convenience of doctors to watch and perceive.
Tag: virtual reality head mounted display,3d head mounted display
