Place of Origin:
CHINA
Brand Name:
ENMESI
Certification:
CE, ROHS, FCC
Model Number:
F2-A43

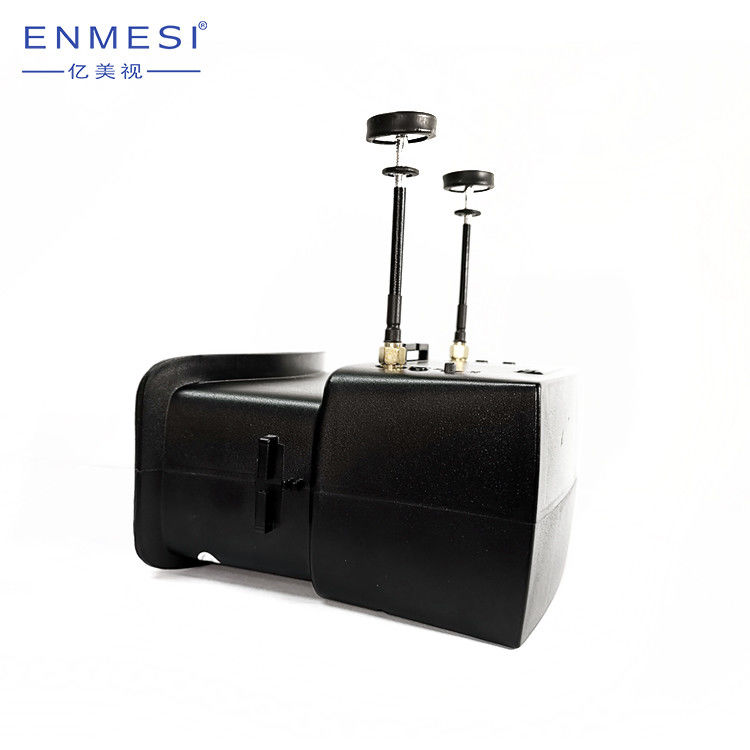

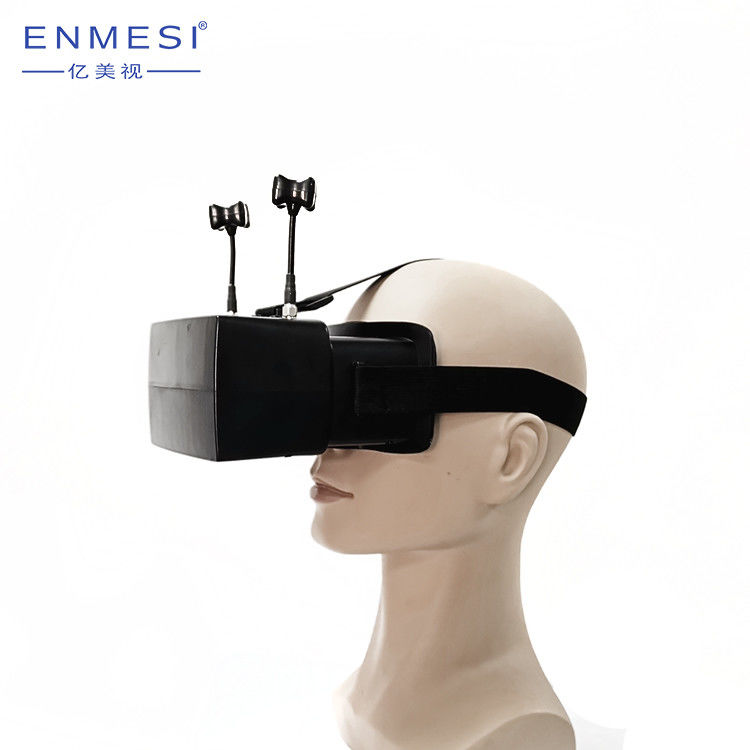

48 Channel Large FOV 4.3 Inch Dual Antenna FPV Drone Goggles For UAV
FPV is the abbreviation of English First Person View, which is “first person main perspective”. It is a new gameplay based on remote control aviation model or vehicle model with wireless camera backhaul equipment and screen control model on the ground. It allows users to experience the feeling of being on the plane.
UAVs generally refer to the drones with cameras, and those without cameras can only be regarded as toys. It is generally divided into two parts, one part is the remote control, the other part is the display part which is completed by the image transmission module. The signal transmitter is connected to the camera on the drone, and the signal receiver is in the hands of the player, and some are on the remote controller. Signal receive generally needs WIFI and 5.8GHZ radio signal, but the distance of WIFI is relatively not far, the player can use mobile phone to receive signals, but it will not be clear in the outdoor; and the 5.8GHZ radio signal, the distance can reach 2KM. It is best if within a few hundred meters, so most drones use 5.8GHZ radio signal.
Product Details:
| CPU | 6360 |
| Memory | Flash: 256M |
| Screen Size | 4.3inch |
| Resolution | 480*272 |
| FOV | 0/120 degrees (horizontal / vertical) |
| Power consumption | 1.5W in HD mode, 2.3W in 5.8G mode |
| Channels | 48channesl (6 bands *8 channels), support channel auto-searching |
| AV In | connect to the device with AV output |
| Battery | 600mAh reachargeable Li-battery |
| Size | 150mmX82mmX145mm |
| Weight | 280g |
Applications:
It can be used as a display for drone via 5.8G receiver, unmanned vehicles, night vision and such other products with AV in.
