7.0 Inch 5.8G HDMI FPV Goggles 40CH Diversity High Resolution With AV In

7.0 Inch 5.8G HDMI FPV Goggles 40CH Diversity High Resolution With AV In

drone fpv headset

hd fpv goggles

5.8G High Resolution HDMI FPV Goggles

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
TFT LCD Monitor
Product Weight:
500 Cd/m
1024 X 600
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gfit box
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union, etc
Supply Ability
Product Description


7.0inch 5.8G 40CH Diversity High Resolution FPV Drone Goggles with HDMI and AV In





1. 5.8Ghz 40CH diversity head set
2. 7 inch LCD ,1024 x 600 HD resolution
3. HDMI-IN Support
4. One touch auto scan button
5. FOV 72 degree, brightness 500 cd/m2

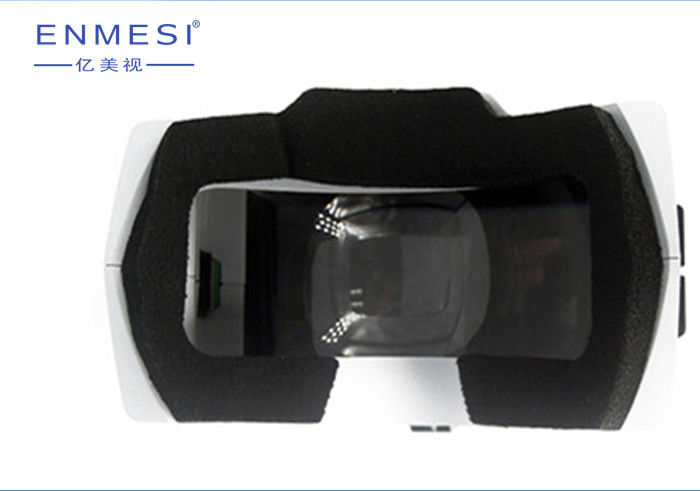

6. 3X magnifying lense for bigger view
7. 2S-6S, 7.4V 2600MAH Li battery

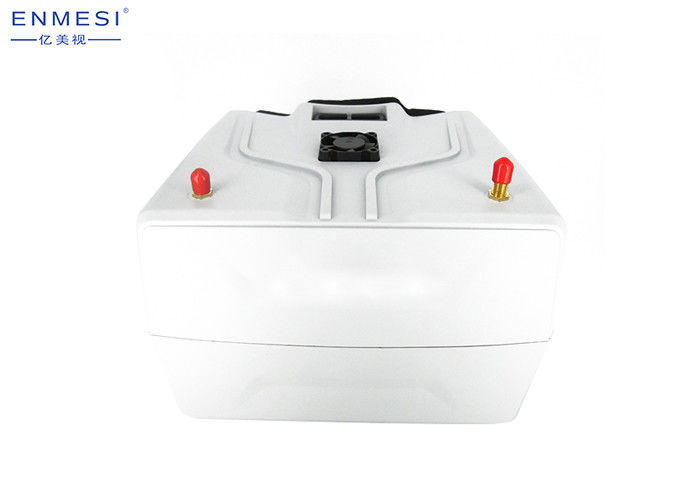

8. Built-in fan for defogging ( could be on/off in menu)

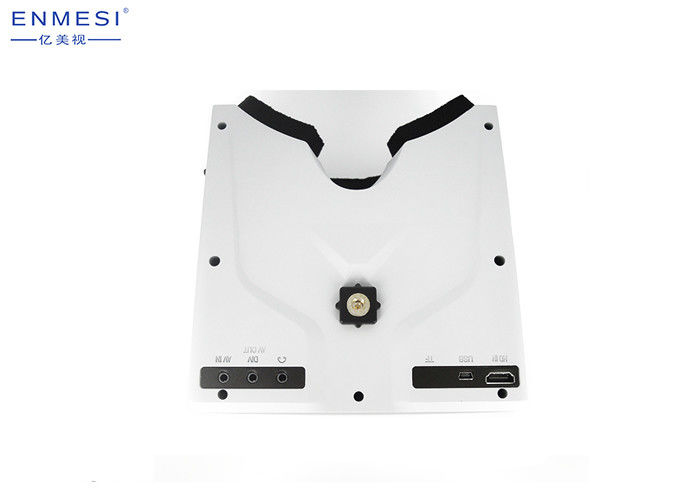

9. Built-in Tripod screw
10. User glasses is available


Product Details:


 Screen dimensions  7“ (inches) / 178 mm
 Screen material  TFT LCD Monitor, LED backlight,
 Resolution  1024 x 600 Pixel 
 Contrast:  500:1
 Holder  tripod thread / sliding insert
 Battery:   2600mAh battery
 Weight  ca. 519g



Frequency range:


FR1(A) 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2(R) 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M

FR3(E) 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4(F) 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5(B) 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M


Screen symbols / Setting menu


Changes of the frequency band or of the channel will be shown in the upper part of the screen. Charge the battery if the battery indicator indicates empty battery


7.0 Inch 5.8G HDMI FPV Goggles 40CH Diversity High Resolution With AV In 0


Setting menu

Push twice the “MENU” button to access the selection menu.

Pushing the “MENU” button you can scroll through the menu setting points. To change the value of one of the menu item, push the “plus/ minus” buttons. The menu automatically disappears after about 5 seconds if you do not push any button.


Brightness, contrast, colour, volume:

(the brightness can be changed even by the main screen, pushing the “plus/minus” buttons)


RF Sel.: Manual selection of the frequency


FAN - Switch the fan on or off


Screen Mode: 16:9 or 4:3


Rotation: Image rotation in four steps


Languages: English, French, German, Spanish, Portuguese, Japan, Russian, Italian, Dutch and Chinese •


Reset: Sets all settings to factory value


Exit: Aborts the menu
