Place of Origin:
CHINA
Brand Name:
ENMESI
Certification:
CE, ROHS, FCC
Model Number:
F7

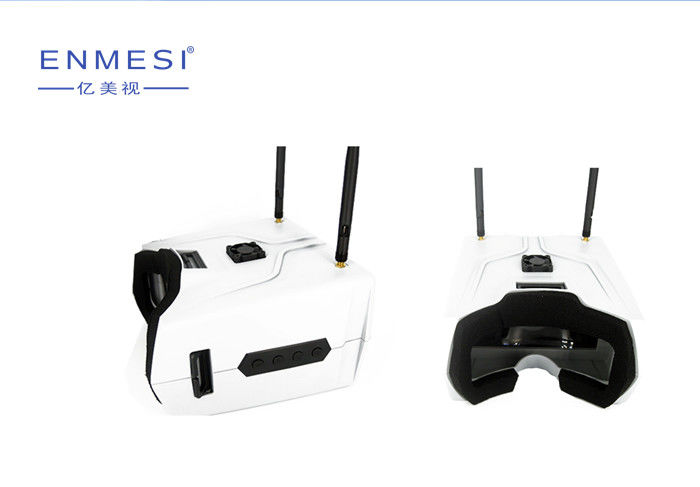

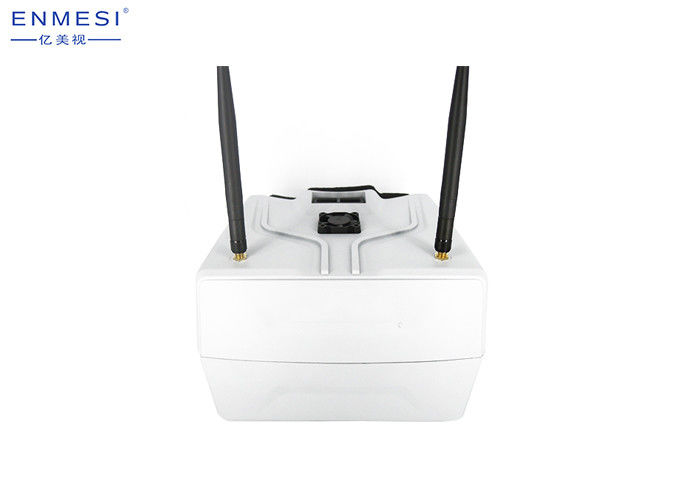

7.0inch Screen 5.8G FPV Drone Goggle 40CH Diversity Receiver Racing with HDMI
Features:
1. 5.8Ghz 40CH diversity head set
2. 7 inch LCD ,1024 x 600 HD resolution
3. HDMI-IN Support
4. One touch auto scan button
5. FOV 72 degree, brightness 500 cd/m2

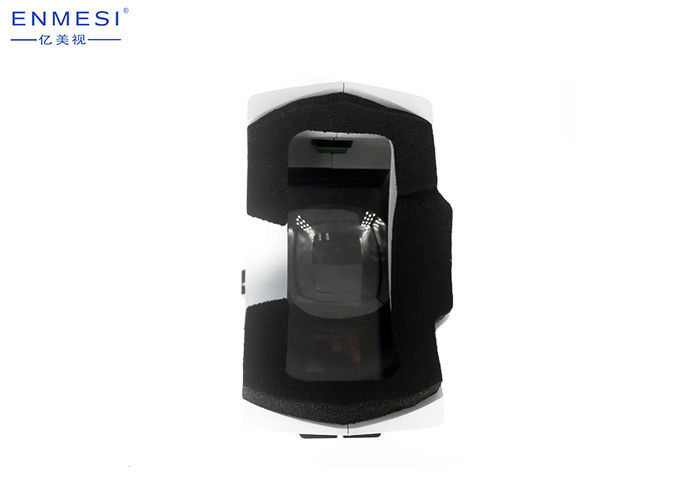

6. 3X magnifying lense for bigger view
7. 2S-6S, 7.4V 2600MAH Li battery
8. Built-in fan for defogging ( could be on/off in menu)
9. Built-in Tripod screw
10. User glasses is available
Product Details:
1. Screen dimensions: 7“ (inches) / 178 mm
2. Screen material: TFT LCD Monitor, LED backlight,
3. Resolution: 1024 x 600 Pixel
4. Contrast: 500:1
5. Holder: tripod thread / sliding insert
6. Fan
7. ISM 5.8 GHz, 40 channel diversity head set
8. Battery: 2600 mAh Lithium battery
9. Weight: ca. 519g
10. Operational temperature: 0 °C ... +50° C
Frequency table
| CH | ||||||||
| FR | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| FR1(A) | 5865M | 5845M | 5825M | 5805M | 5785M | 5765M | 5745M | 5725M |
| FR2(R) | 5658M | 5695M | 5732M | 5769M | 5806M | 5843M | 5880M | 5917M |
| FR3(E) | 5705M | 5685M | 5665M | 5645M | 5885M | 5905M | 5925M | 5945M |
| FR4(F) | 5740M | 5760M | 5780M | 5800M | 5820M | 5840M | 5860M | 5880M |
| FR5(B) | 5733M | 5752M | 5771M | 5790M | 5809M | 5828M | 5847M | 5866M |
Description
1. Minus button-- Reduces the screen brightness and other options
2. Band select-- Manual select one of the three signal band A/B/F
3. Video source -- election of the video input
4. Power (On/Off)-- To turn on, push the On/Off button until the monitor lights up, to switch off push the button again
5. MENU-- Push once to hide the symbols on the screen Push twice to open the menu
6. SCAN function --The monitor searches (Auto Scan Function) automatically all bands and channels
7. Channel select-- Manual select one of the eight channels 1-8
8. Plus button -- Increases the screen brightness and other options
Package:
a. 1* 7“ Diversity Monitor Goggle incl. Lithium battery
b. 2* 5.8GHz receiver antennas
c. 2* AV out cable
