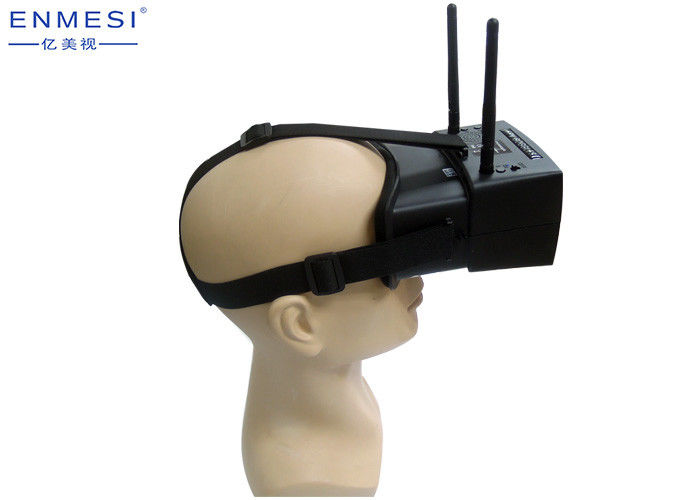

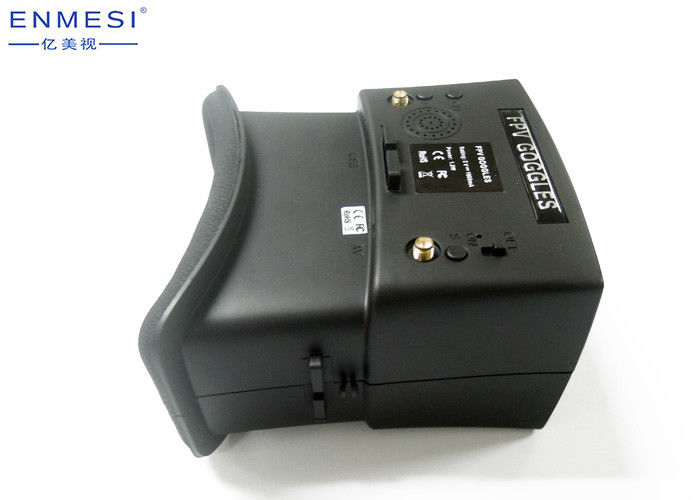

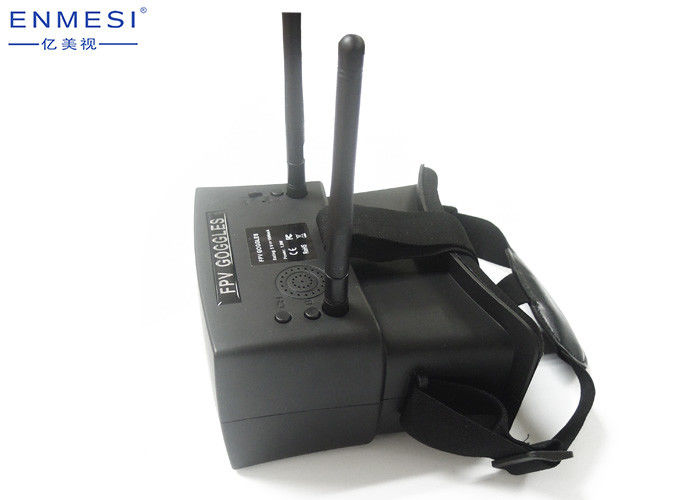

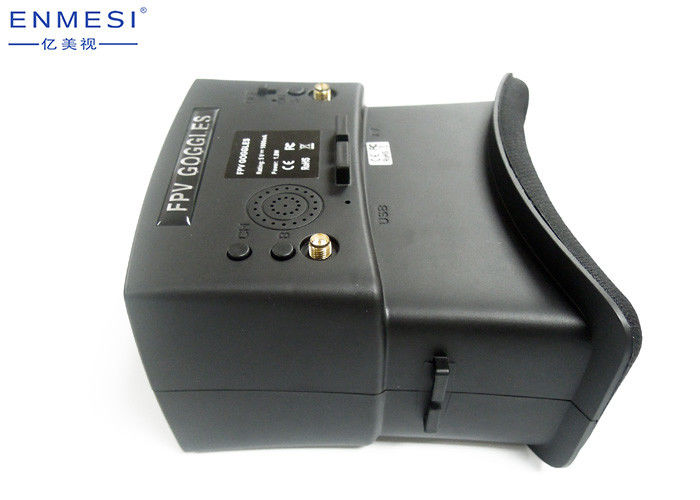

5.8G Real-time Transmission 48CH FPV Drone Goggle with High Resolution
5.8G head-mounted transmission receiver display device to receive video through 5.8G and AV In. It can be used as a display for drone, unmanned vehicles, night vision and such other products. This product features very short delay, high quality image, light and comfortable to wear, which can let your hands free, and bring you an immersive visual experience.
Product Details:
Display Screen: Size--4.3 inch,
Resolution--800x480 pix, HD LCD screen
Brightness500cd / m2 of high brightness, for outdoor use
Lens: FOV--0/120 degrees (horizontal / vertical)
Magnification: 2.8x
Distortion-- No distortion
Material--PMMA
Battery: 3.7V 2000mAh rechargeable li-battery
Charging Voltage: DC 5V/ 1A;
Power consumption: 1.5W in HD mode, 2.3W in 5.8G mode
RX:Built-in 40CH 5.8G HZ, A/V auto-searching receiver
DUO Design: Combines the best performance of a circular combination with the RX and allows two types of antennas at the same time,Omni directional / Straight Antenna
Dimension: 137*152*82(mm)
Item weight: 280g
48 channles as following:
| |
Channel 1 |
Channel 2 |
Channel 3 |
Channel 4 |
Channel 5 |
Channel 6 |
Channel 7 |
Channel 8 |
| Brand A |
5645 |
5665 |
5685 |
5705 |
5885 |
5905 |
5925 |
5945 |
| Brand B |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
| Brand C |
5725 |
5745 |
5765 |
5785 |
5805 |
5825 |
5845 |
5865 |
| Brand D |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
| Brand E |
5658 |
5695 |
5732 |
5769 |
5809 |
5843 |
5880 |
5917 |
Features:
1. 5.8G, 48CH, full band of frequency 5645M-5917M
2. High performance antenna, stable image transfer
3. 5.8G receiving frequency, strong anti-interference ability and long transmission distance
4. Automatically search and scan frequency points to connect to the transmitter
5. Built-in rechargeable battery, support USB charging
6. Ergonomic design, comfortable for long-term wearing
Applications:
It can be used as a display
1. for drone via 5.8G receiver
2. unmanned vehicles
3. night vision and such other products with AV in.
