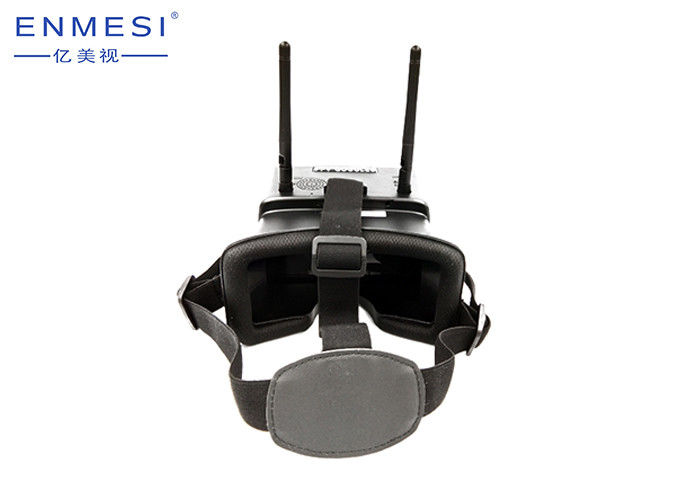

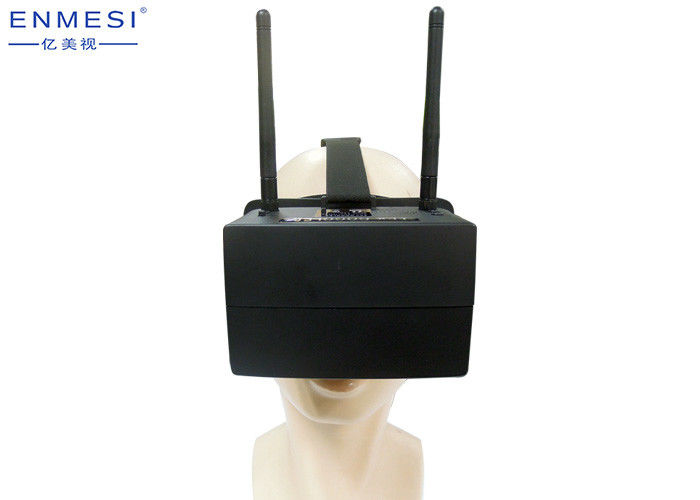

4.3 Inch HD FPV Drone Goggles 480*272 Resolution ,PMMA FPV Drone And Goggles

4.3 Inch HD FPV Drone Goggles 480*272 Resolution ,PMMA FPV Drone And Goggles

drone fpv headset

hd fpv goggles

PMMA FPV Drone And Goggles

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
3.5mm Earphone Port
AV In:
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gfit box
Delivery Time
3-7 working days
Payment Terms
T/T, Western Union, etc
Supply Ability
Product Description


4.3 Inch 480*272 Display 3.7V 600mAh 5.8GHz FPV Drone Goggles with 48 Channels


      The new 5.8G AV FPV Goggle with 4.3 large screen remains all the features of previous version, including high resolution, channel auto-searching, many channels(48 channels)etc, also some new features highlight in AV video input, which provide an access to other devices with AV output. At the same time, some features are improved and optimized, like shorten the delay less than 10ms, and full screen display. All these will bring people an overall vivid visual experience.


Product Details:


 AV IN  Support AV vidoe input
 Resolution  480*272
 Screen Size  4.3"
 RF Modules  5.8G, 5.0G, 2.4G
 Channels  48channesl (6 bands *8 channels), support channel auto-searching
 Battery  600mAh reachargeable Li-battery
 Size  137*152*82(mm)
 Weight  340g


Brightness : 500cd / m2 of high brightness, for outdoor use

Field of view: 0/120 degrees (horizontal / vertical)

Magnification: 2.8x

Distortion: No distortion

Material: PMMA

Transparency: > 93%

Battery: : 3.7V 2000mAh rechargeable li battery

Power consumption: 0.6W in AV In mode, 1.8W in RF mode
RX: Built-in 40CH 5.8G HZ, A/V auto-searching receiver

DUO Design: Combines the best performance of a circular combination with the RX and allows two types of antennas at the same time,Omni directional / Straight Antenna


48 Channels as following:

Band A:5645,5665,5685,5705,5885, 5905,5925,5945
Band B:5740,5760,5780,5800,5820,5840,5860,5880
Band C:5725,5745,5765,5785,5805,5825,5845,5865
Band D:5733,5752,5771,5790,5809,5828,5847,5866
Band E:5658,5695,5732,5769,5809,5843,5880,5917




It can be used as a display

1. for drone via 5.8G receiver

2. unmanned vehicles

3. night vision and such other products with AV in.





1. Short delay: The delay for image transferring is very short , less than 10ms.

2. High quality image: 480*272, it is a high resolution in the similar product.

3. Light and comfortable to wear: humalized design, only 340g. The headband will not let you feel pressed.

4. 0 transmittance: bring you an immersive visual experience.
