1920x1080 OLED Head Mounted Display 41 Degree Binocular MIPI HUD
200pcs
MOQ
Negotiable
Price
1920x1080 OLED Head Mounted Display 41 Degree Binocular MIPI HUD
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen,China
Brand Name: ENMESI
Certification: CE,FCC,ROHS
Model Number: R11
High Light:

1920x1080 OLED Head Mounted Display

,

41 Degree Binocular Head Mounted Display

,

MIPI HUD Head Up Display
Payment & Shipping Terms
Packaging Details: gift box
Delivery Time: 7 work days
Payment Terms: T/T, Western Union etc
Supply Ability: 5000pcs/month
Specifications
Type: Micro Display Module
Resolution: 1920*1080
Quantity: Binocular
FOV: 41 Degree
Interface: MIPI
Application: AR/VR Glasses/HUD
Product Description

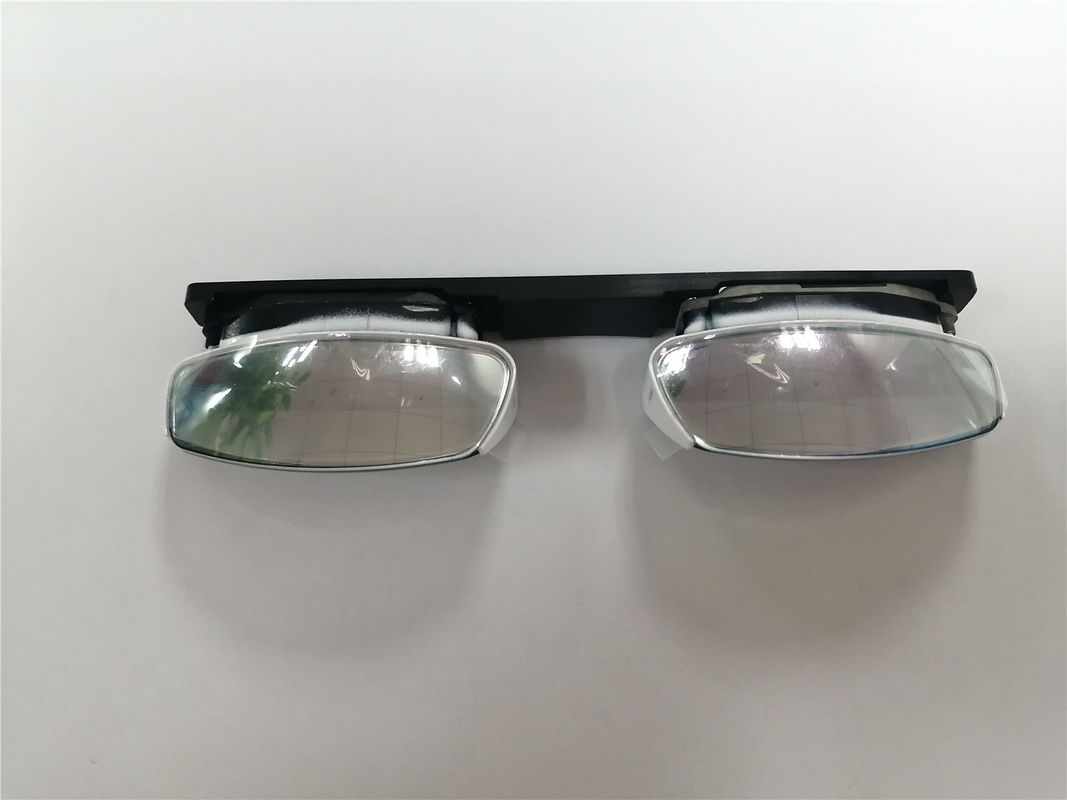

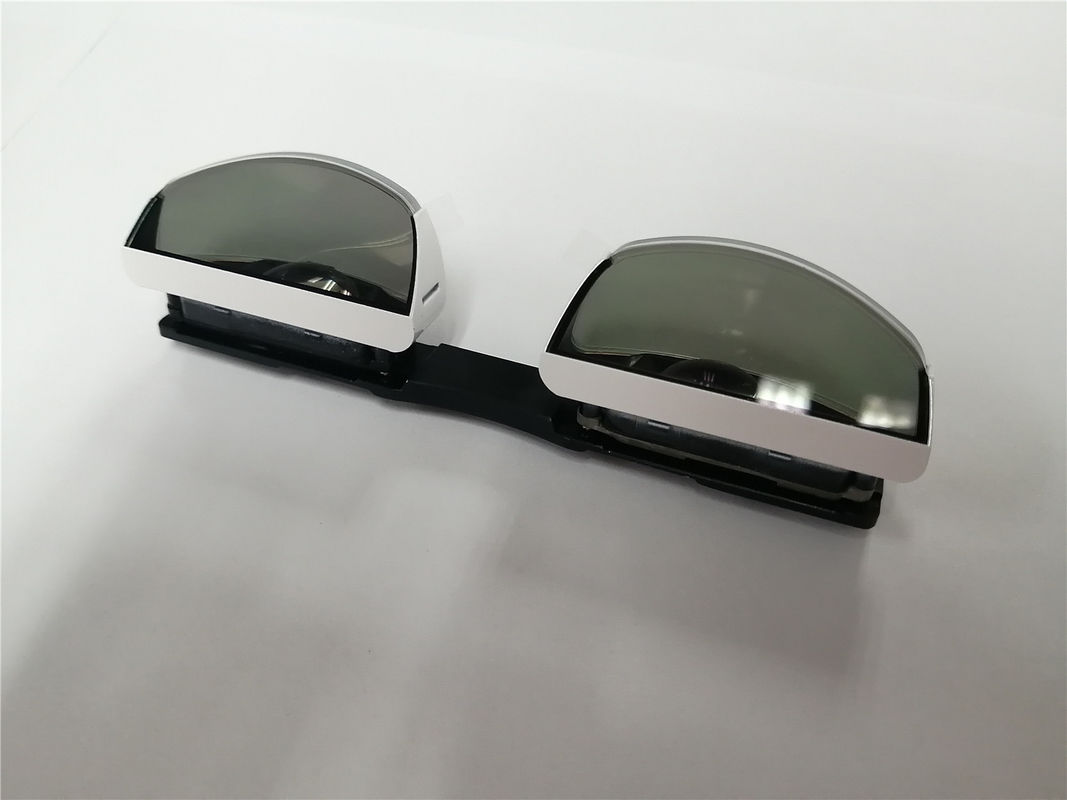

Micro Display Module 1920*1080 Resolution OLED 41 Degree For Head Up Display





This display is a 0.49 inch diagonal, 1920(RGB) × 1080 dots active matrix color OLED module based on single-crystal
silicon transistors.
This module integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution.





Product Details



Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.49"
Quantity 2 screens, binocular
FOV 41°
Brightness 1800 nits
Contrast Ratio
50000:1
Frame Rate
60Hz~90Hz
Interface
MIPI





Features



  • High resolution
  • Large FOV
  • High brightness
  • Plug and play
  • Light and small
  • Ultra high contrast
  • Wide color gamnt
  • Fast response speed





Interface



I2C Interface

The I2C-bus is for bi-directional, two-line communication between different ICs or modules.The two lines are  the Serial Data Line (I2C_SDA) and Serial Clock Line (I2C_SCL). Both lines mustbe connected to a positive power supply via pull-up resistors. Data transfer can be initiated only whenthe bus is not busy. The acknowledge takes place after every byte. The acknowledge bit allowsthe receiver to signal the transmitter that the byte was successfully received and another byte maybe sent. The master generates all clock pulses, including the ninth acknowledge clockpulse.



I2C-Bus Protocol



Before any data is transmitted on the I2C-bus, the device which should response is addressed first. There are several slave addresses can be selected by MCU. The slave addressing is always carried out with the first byte transmitted after the START procedure.
