32 Degree Binocular Waveguide Micro Display Module 0.24" 18mm Eyerelief
32 Degree Binocular Waveguide Micro Display Module 0.24" 18mm Eyerelief
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: ENMESI
Certification: CE,ROHS,FCC
Model Number: R1
High Light:

32 Degree Micro Display Module


Binocular Waveguide Micro Display Module


0.24" Micro Oled Display Module

Payment & Shipping Terms
Packaging Details: gift box
Delivery Time: 3-7 working days
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Resolution: 1280*720
Quantity: Monocular & Binocular
User: AR Glasses / HUD
FOV: 32°
Eyerelief: 18mm
Transmittance: ≥82%
Product Description


0.24" High Resolution 32 Degree Binocular Waveguide Micro Display Module




Product details


Product model R1
Screen size 0.24"
Resolution 1280*720
Material LCoS
FOV 32°
Eyerelief 18mm
Eyebox 8*8mm
Transmittance ≥82%
Waveguide lens thickness 1.5mm
Brightness 0-900nits




Product description


The display micro-display module came into being in order to reduce customer development cycle and reduce customer development costs.

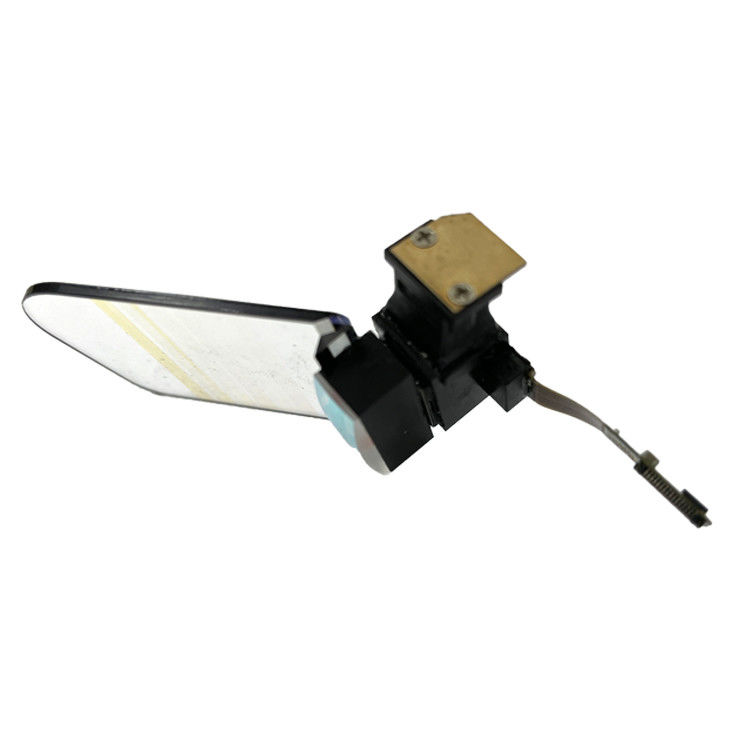

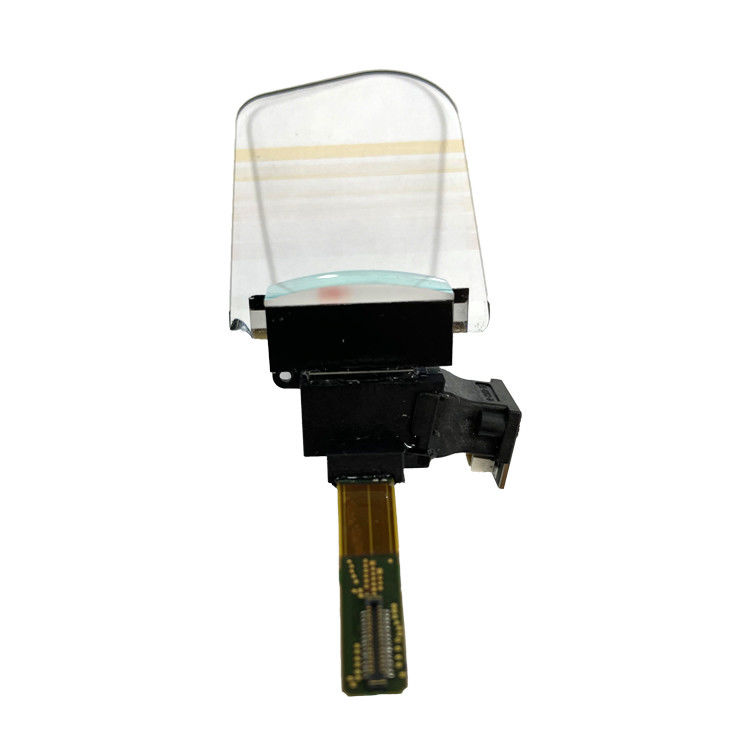

The module includes LCOS screen, opto-mechanical module, waveguide film, and image drive control circuit board.

The display module can virtualize a picture equivalent to 67 inches at a distance of 3 meters, with a clear image with a resolution of 1280*720, and a compact size, which can be easily applied to customers' product development and design.


The module is mainly designed and applied to: military helmet display, military display kit, portable night vision device, medical equipment viewfinder, infrared thermal imaging camera viewfinder, laser sight imaging, individual night vision system, game helmet, intelligent robot viewfinder, computing Computer imaging, distance education, Head Up Display, motorcycle helmets, FPV glasses, AV/VR glasses, etc.



Product Advantages


  • Large field of view
  • High brightness
  • High transmittance
  • High refresh rate
  • High resolution
  • It has monocular and binocular
  • Small size
  • It has driver board
