0.24" Binocular & Monocular Waveguide Micro Display Module For AR Glasses
Waveguide lens thickness

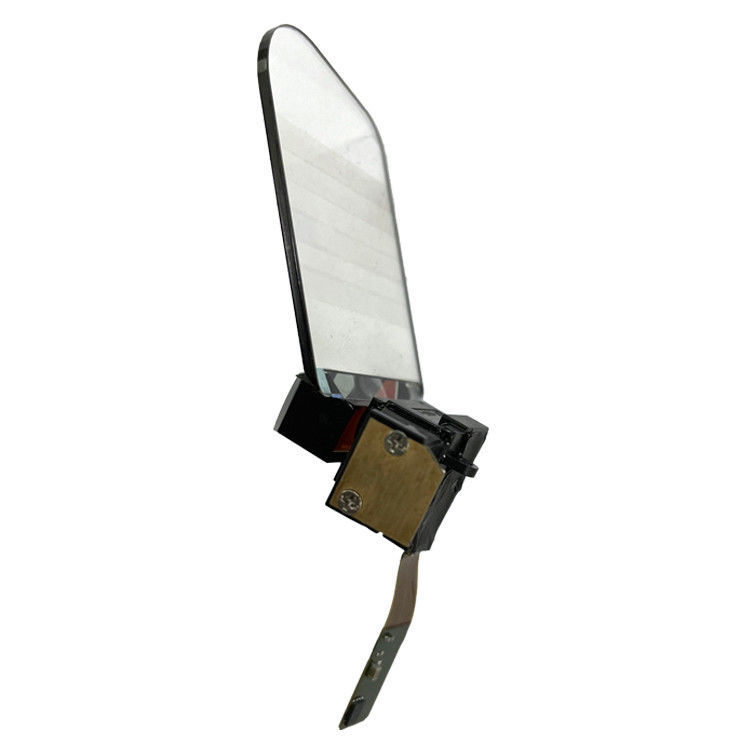

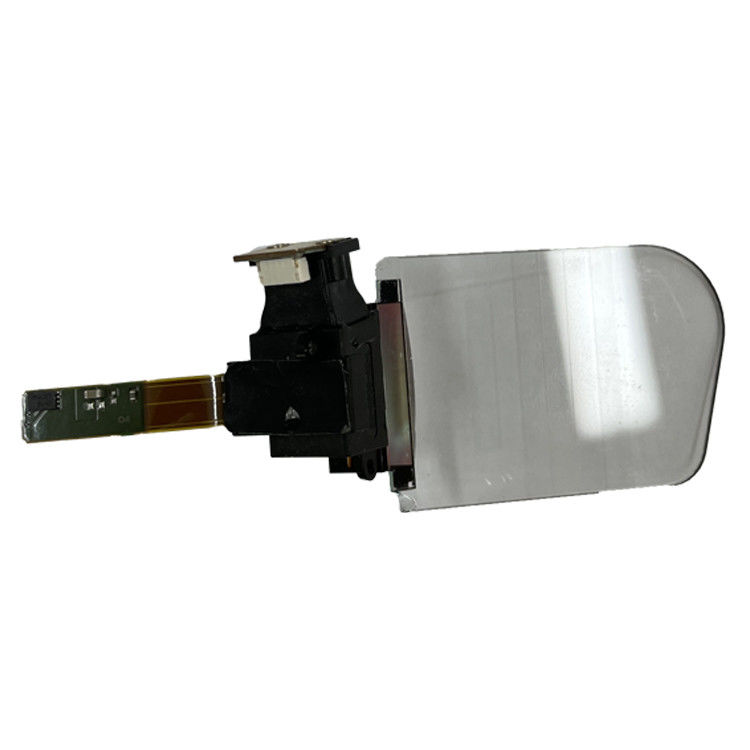

The waveguide module consists of three parts: LCOS screen, light engine module and waveguide sheet.
The image information emitted by LCOS is partially collimated by the optical machine, and the light is coupled into the inside of the waveguide. After multiple total reflections inside the waveguide, the light is coupled out of the multilayer ordered waveguide array film, and finally projected out of 67 inches The virtual image (3 meters), the diagonal field of view can reach 32°.
Large field of view
High refresh rate
Electronic viewfinder of digital camera/camcorder.
Portable civilian equipment such as micro projectors, video glasses, head-mounted entertainment equipment, 3D displays, game helmets, AR glasses, Head Up Display, smart motorcycle helmets, VR glasses, etc.
Medical and industrial applications: human and machine vision engineering research, endoscopes, portable ultrasound machines, vision correction equipment, telescopes, various portable inspection and testing equipment.
Security monitoring, military use: individual helmet display, electronic sight, infrared night vision, thermal imager display, electronic telescope, aircraft helmet, gunsight, life detection video device.
Aircraft model: aerial photography, remote control aircraft parameter display system, remote control car video display terminal, etc.
Minerals: coal detection, metal mineral detection.
