Place of Origin: | China |
---|---|
Brand Name: | ENMESI |
Certification: | CE,ROHS,FCC |
Model Number: | R1 |
Minimum Order Quantity: | 50pcs |
Price: | Negotiable |
Packaging Details: | gift box |
Delivery Time: | 3-7 working days |
Payment Terms: | Western Union, T/T etc |
Supply Ability: | 5000pcs/month |
Display Size: | 0.24 Inch | Technology: | LCOS |
---|---|---|---|
Resolution: | 1280&720 | FOV: | 32° |
Eyerelief: | 18mm | User: | Head Up Display |
High Light: | 0.24 Inch Waveguide Display Module,LCoS Waveguide Display Module,Monocular USB C Micro Display |

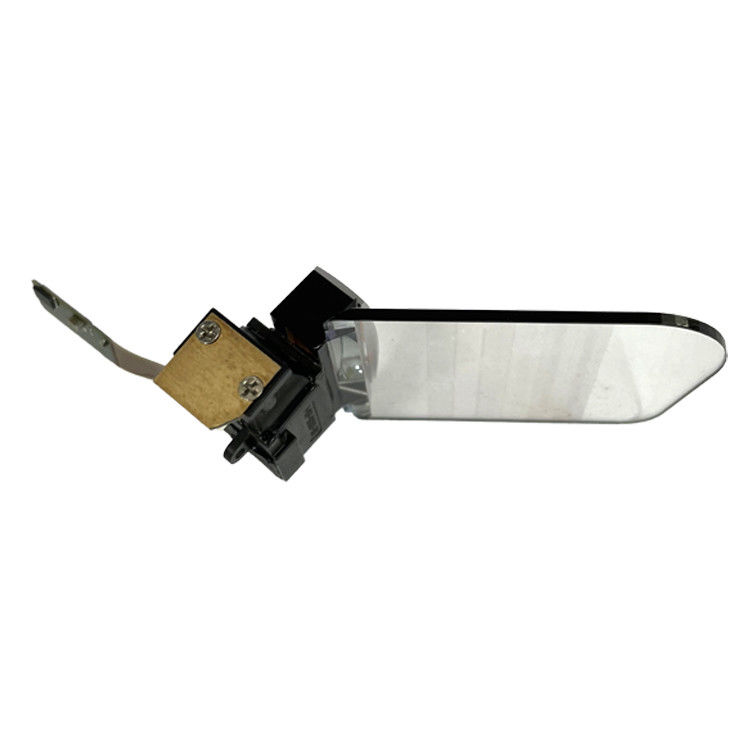

Monocular LCoS 0.24 Inch Waveguide Display HDMI & USB-C Micro Display Module
Product details
Product model | R1 |
Screen size | 0.24" |
Resolution | 1280&720 |
Material | LCoS |
FOV | 32° |
Eyerelief | 18mm |
Eyebox | 8*8mm |
Transmittance | ≥82% |
Waveguide lens thickness | 1.5mm |
Brightness | 0-900nits |
Product description

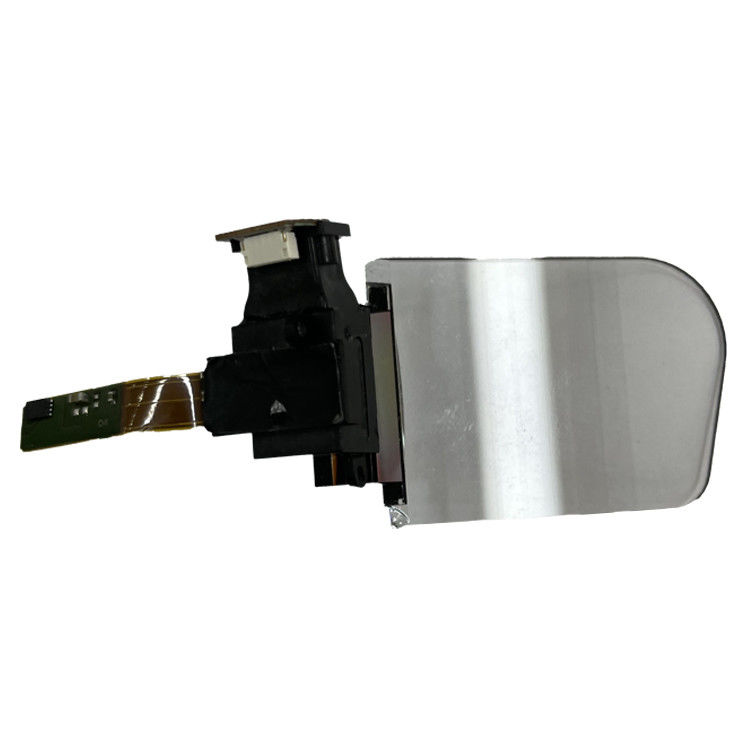

The waveguide module consists of three parts: LCOS screen, light engine module and waveguide sheet.
The image information emitted by LCOS is partially collimated by the optical machine, and the light is coupled into the inside of the waveguide. After multiple total reflections inside the waveguide, the light is coupled out of the multilayer ordered waveguide array film, and finally projected out of 67 inches The virtual image (3 meters), the diagonal field of view can reach 32°.
