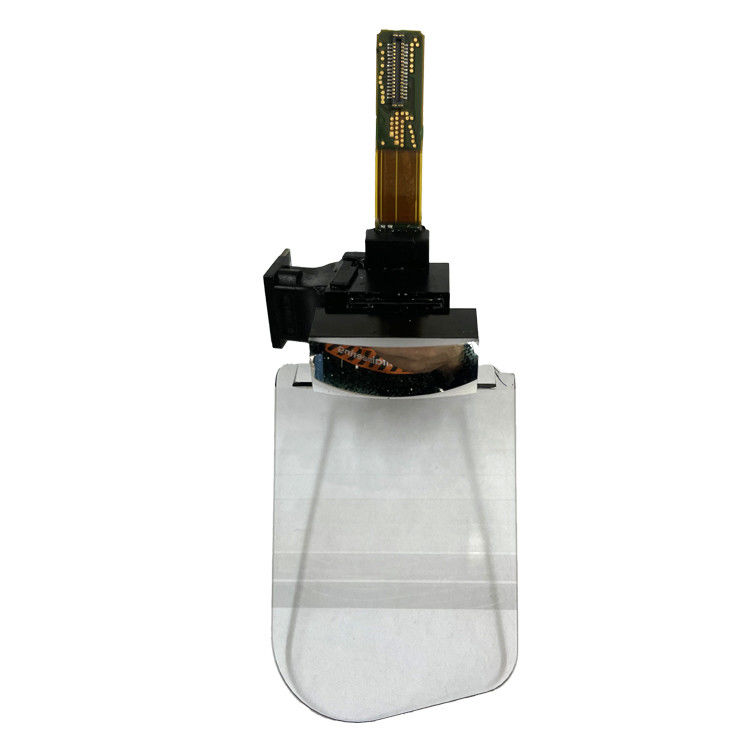

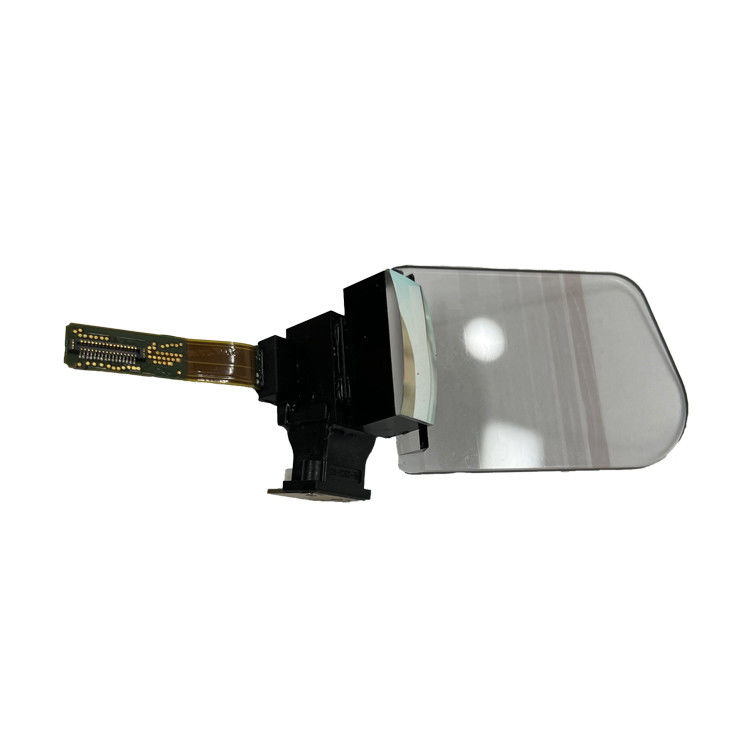

 HDMI Interface Large FOV 0.24 Inch LCoS Waveguide 720P Micro Display Module




Product description



The optical waveguide module is composed of three parts: LCOS screen, light engine module and waveguide lens.


The image information emitted by LCOS is partially collimated by the optical machine, and the light is coupled into the inside of the waveguide. After multiple total reflections inside the waveguide, the light is coupled out of the multilayer ordered waveguide array film, and finally three meters away. A 67-inch virtual image is projected, and the diagonal field of view can reach 32°.




Product details


Product model R1
Screen size 0.24"
Resolution 1280&720
Material LCoS
FOV 32°
Eyerelief 18mm
Eyebox 8*8mm
Transmittance ≥82%
Waveguide lens thickness 1.5mm
Brightness 0-900nits




Product features


  • Small size : 0.24 inch
  • Large field of view: 32°
  • High brightness: 0-900nits adjustable
  • Waveguide lens is thin
  • High transmittance
  • High refresh rate
  • High resolution:1280*720


Optical parameters


1. Modulation transfer function: When the spatial frequency reaches 30.0 lp/mm, the modulation transfer function of the module will be higher than 0.2.


2. Distortion: less than 4%.


3. Field of view:


Vertical: 16°


Horizontal: 28°


Diagonal: 32°
