LCoS Waveguide Micro Display Module 0.24 Inch For AR XR Glasses

LCoS Waveguide Micro Display Module

AR XR Glasses Micro Display Module

0.24 Inch Monocular Display Module

Place of Origin:

China

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC

Model Number:

Request A Quote

LCoS Waveguide Micro Display Module 0.24 Inch For AR XR Glasses

Product Details

Screen Size:

0.24"

Technology:

Waveguide

Resolution:

1280&720

FOV:

32°

Eyerelief:

18mm

Waveguide Lens Thickness:

1.5mm

Payment & Shipping Terms

Minimum Order Quantity

200pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

3-7 working days

Payment Terms

Western Union, T/T etc

Supply Ability

5000pcs/month

China Near Eye Optical Waveguide Micro Display Module 0.39" 40° FOV With LCOS Screen

Get Best Price

Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

Get Best Price

TYPE-C AR Display 1920 * 1080 OLED Birdbath Micro Display Module For HUD

Get Best Price

0.49 Inch 41 Degrees FOV OLED Micro Display Module 1920 * 1080 Resolution

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

0.24 Inch Monocular LCoS Waveguide Micro Display Module For AR/XR Glasses

Product description

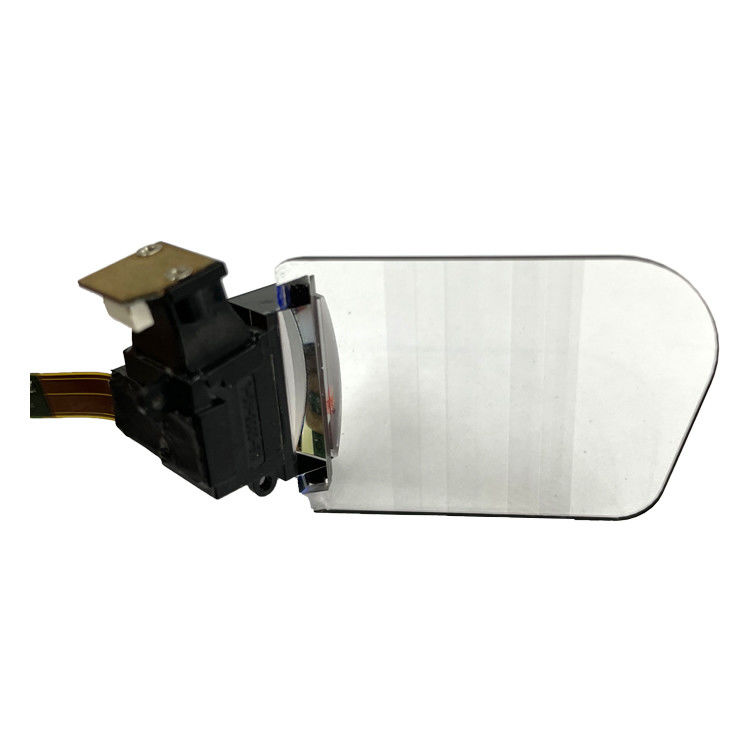

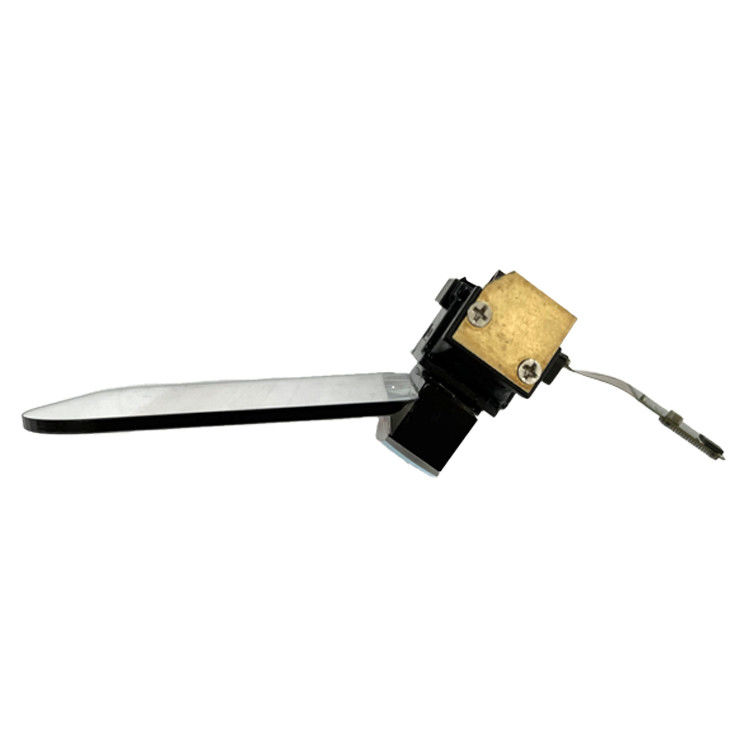

The optical waveguide module is composed of three parts: LCOS screen, light engine module and waveguide lens.

The image information emitted by LCOS is partially collimated by the optical machine, and the light is coupled into the inside of the waveguide. After multiple total reflections inside the waveguide, the light is coupled out of the multilayer ordered waveguide array film, and finally three meters away. A 67-inch virtual image is projected, and the diagonal field of view can reach 32°.

Product details

Product model	R1
Screen size	0.24"
Resolution	1280&720
Material	LCoS
FOV	32°
Eyerelief	18mm
Eyebox	8*8mm
Transmittance	≥82%
Waveguide lens thickness	1.5mm
Brightness	0-900nits

Product features

Small size
Large field of view
High brightness
High transmittance
High refresh rate
High resolution
Waveguide lens is thin
Liguid Crystal on Silicon display
