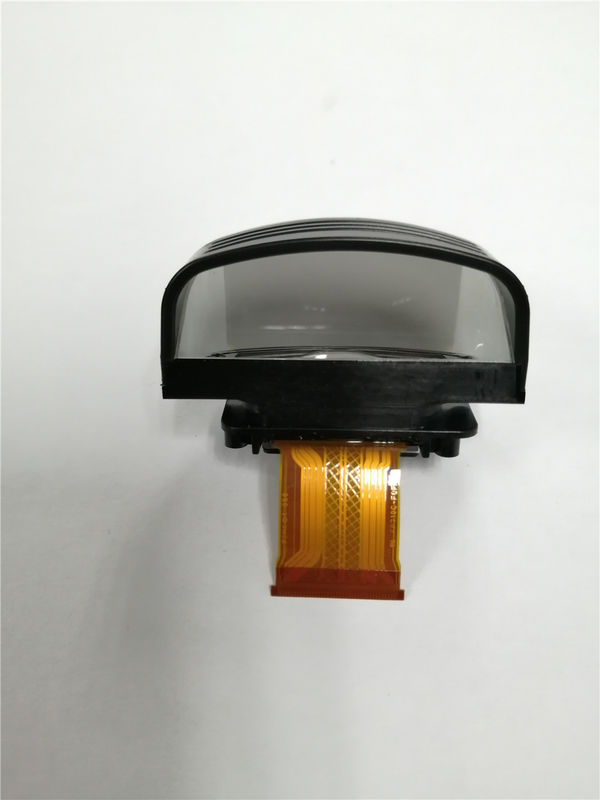

Sony Monocular 0.7 Inch 3000cd/m2 Micro Display Module 51° FOV FCC

Sony Monocular 0.7 Inch 3000cd/m2 Micro Display Module 51° FOV FCC

3000cd/m2 Micro Display Module

0.7 Inch Micro Display Module

FCC Monocular OLED Display Module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC

Model Number:

R6

Contact Us
Request A Quote
Product Details
Screen Size:
0.7"
Resolution:
1920&1080
Material:
OLED
Brightness:
3000cd/㎡
Driver:
Type-c Interface
Weigh:
16.3g
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
3-7 working days
Payment Terms
Western Union, T/T etc
Supply Ability
5000pcs/month
Product Description



Sony OLED Monocular 51° FOV Display 0.7 Inch 3000cd/㎡ Micro Display Module​







Product details



Product model R6
Screen size 0.7"
Resolution 1920&1080
Material OLED
FOV 51°
Eyerelief 15mm
Eyebox 8mm
Distortion 1.42%
Frame Rate 60Hz
Number of colors 24bit (16777K)
MTF 0.15@30lp/mm
Size 18.5mm*20.3mm
Weigh 14g







Technical Features:



  • The display module can reduce customer development time and cost. It has small volume and can be easily applied to customer product development and design.
  • Effective Eye Relief: 19.5mm. Eyebox: 8mm.
  • Number of colors: 24bit (16777K).
  • Clarity:Coaxial optical design with symmetrical optical design with a full frame of high sharpness.
  • Weight:The use of hollow structure design,material selection using resin materials,the scheme does not need optical compensation,so do not need to compensate for optical so the total volume will be small.
  • Large FOV:51°.
  • Volume:There is a short plate at the latitude of the thickness compared to the optical waveguide.
  • Process:Injection molding and coating.
  • Easy Use: Plug power supply and input signals, then it will work.

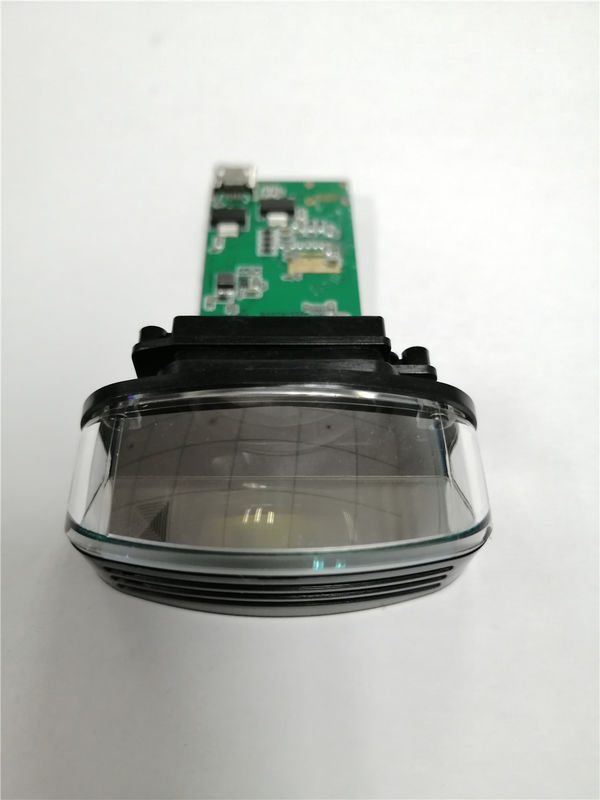

  • Module products help OEMs to introduce consumer products quickly at a lower cost by offering a complete solution. Drive electronics and optics in a compact package(If necessary, we can also offer original graphic board).
  • Our binocular display modules allow mobile video eyewear manufacturers to focus on the creative process of designing stylish products that consumers want by freeing them from the technical complexity of the display system.





Product Application





Can be applied to head-mounted displays, AR glasses, smart motorcycle helmets, head-up displays, etc.



Equipped onto other devices, such as special dental/animal checking machine

With or w/o optical, monocular or binocular working
