1080P Monocular OLED 51° FOV 0.7" HDMI Interface Micro Display Module

LVDS Micro Display Module

0.7in Micro Display Module

1080P Monocular OLED Display Module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC

Model Number:

Request A Quote

Product Details

Material:

Sony EC✖335SN-6

FOV:

51°

Resolution:

1080P

Screen Size:

0.7 Inch

Brightness:

3000nits

MTF:

0.15@30lp/mm

Payment & Shipping Terms

Minimum Order Quantity

200pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

3-7 working days

Payment Terms

Western Union, T/T,etc

Supply Ability

5000pcs/month

China Near Eye Optical Waveguide Micro Display Module 0.39" 40° FOV With LCOS Screen

Get Best Price

Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

Get Best Price

TYPE-C AR Display 1920 * 1080 OLED Birdbath Micro Display Module For HUD

Get Best Price

0.49 Inch 41 Degrees FOV OLED Micro Display Module 1920 * 1080 Resolution

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

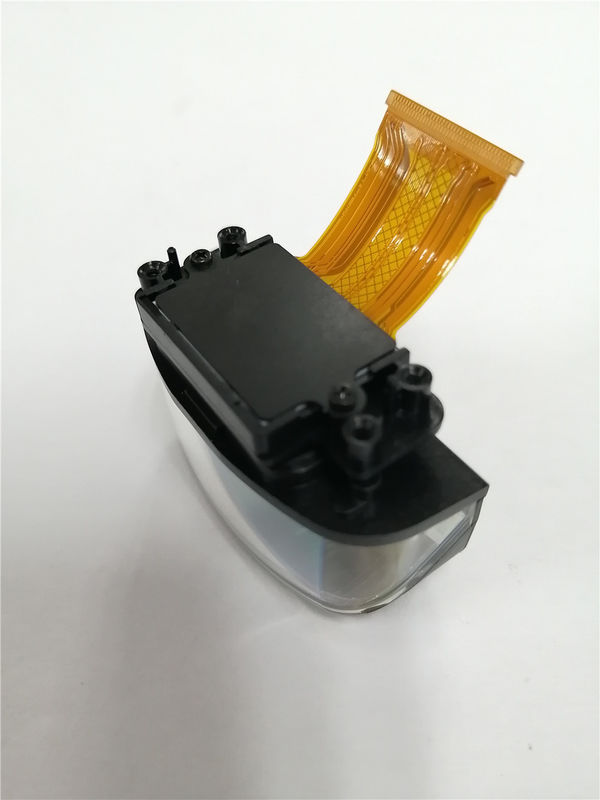

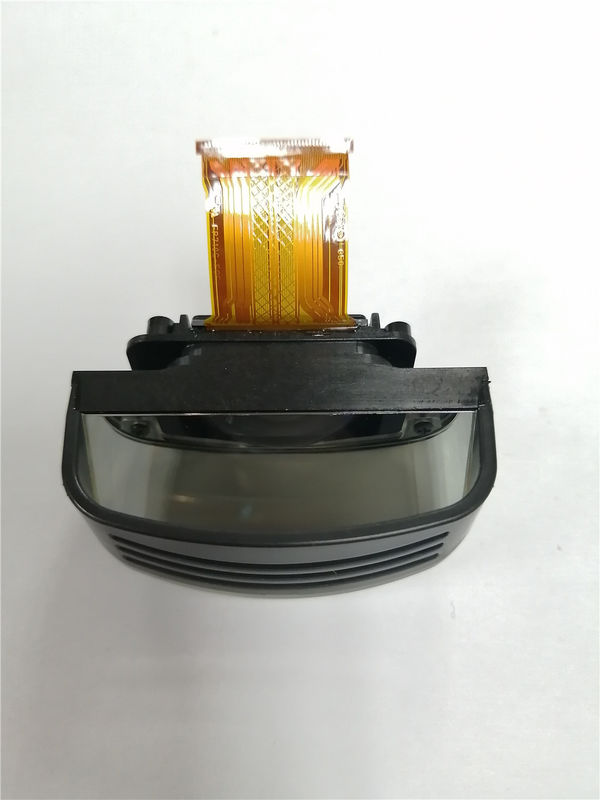

1080P Monocular Sony EC✖335SN-6 OLED Display LVDS 51° 0.7 Inch Micro Display Module

Microdisplay technology is a branch of the field of display technology. Although the term "microdisplay" has been proposed in recent years, display devices with the characteristics of "microdisplay" have already appeared. The original display device with the "micro display" feature is a helmet-mounted micro CRT with an optical amplification device. With the development of the market, display devices require CRT replacement products with smaller, lighter and lower power consumption.
In recent years, researchers have developed many different microdisplay products to meet market demand.

The micro display module can be divided into monocular and binocular, with high-definition resolution, suitable for the needs of medical, education, industry and entertainment and other fields.

Product details

Product model	R6
Screen size	0.7"
Resolution	1920&1080
Material	OLED
FOV	51°
Eyerelief	15mm
Eyebox	8mm
Distortion	1.42%
Frame Rate	60Hz
Number of colors	24bit (16777K)
MTF	0.15@30lp/mm
Size	18.5mm*20.3mm
Weigh	14g

Product features

◆ High Resolution ( 1920*1080).

◆ Large FOV ( 51°).

◆ High brightness ( 3000nits).

◆ Ultra high contrast.

◆ Wide color gamnt.

◆ Fast response speed.

◆ Thin thickness.

◆ Power saving (ps) function.

◆ Scan direction selection,up or down and right or left.

◆ Orbit supported.

◆ Wide range of use temperatures.

Virtual image brightness and Transmittance

AR display module needs to take both virtual image information and external environment into account.

The brightness of F50S70 virtual image is related to the reflectivity of the lens in the optical path.

The overall efficiency is ~ 10%, the maximum brightness of the virtual image is 100nit, and the transmittance of the real scene is 30%.

The brightness of the virtual image and the transmittance of the real scene can be adjusted by changing the reflectivity and transmittance of the coated lens in the optical lens.

1080P Monocular OLED 51° FOV 0.7" HDMI Interface Micro Display Module 0
