Binocular 0.39" LCoS USB C Display Module For AR Glasses
50pcs
MOQ
Negotiable
Price
Binocular 0.39" LCoS USB C Display Module For AR Glasses
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

LCoS USB C Display Module

,

0.39" USB C Display Module

,

AR Glasses Binocular Display Module

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days (sample)
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Specifications
Technology: LCoS
Resolution: 1920X1080
FOV: 40°
Screen Quantity: Binocular&monocular
Display Interface: MIPI
FPS: 120Hz
Product Description



LCoS Binocular & Monocular 1920 * 1080 0.39 Inch USB C Micro Display Module For AR Glasses





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion <4%
Transmittance Rate >82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g







LCOS Screen Details



Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging





Features



  • LCoS and waveguide technology are used.

  • Small size display with full HD: 0.39 inch 1920 * 1080 LCOS micro display

  • Wide range of color reproduction.

  • The display is MIPI interface.

  • Use optical waveguide technology.

  • This LCoS micro display module has binocular and monocular.

  • The display module is light in weight and small in size

  • The waveguide lens is ultra-thin, only 15mm

  • Can be directly connected to mobile phone or computer

  • It is plug and play, very convenient to use





our service

  • Samples will be sent out quickly, and samples will be shipped within 3-7 working days.
  • The warranty period of the module is 12 months.

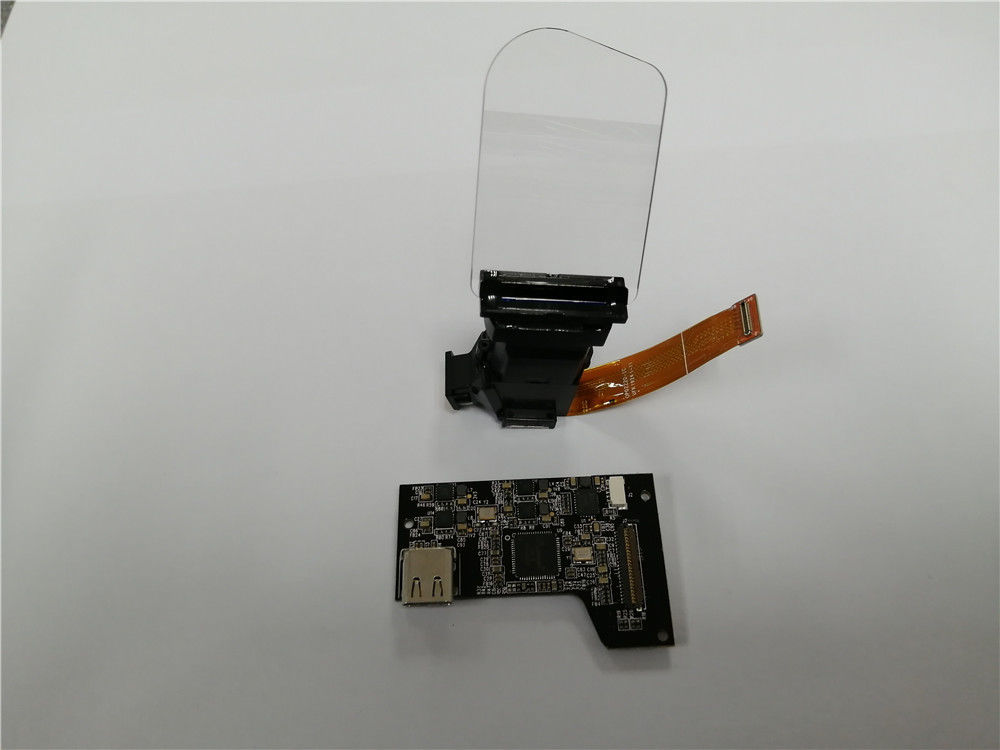

  • We can provide monocular and binocular, and both have driver boards.
  • Driver boards with various interfaces can be customized, and we will design according to your needs.
  • Driver boards of any specifications can be customized.
  • Small orders are welcome!
