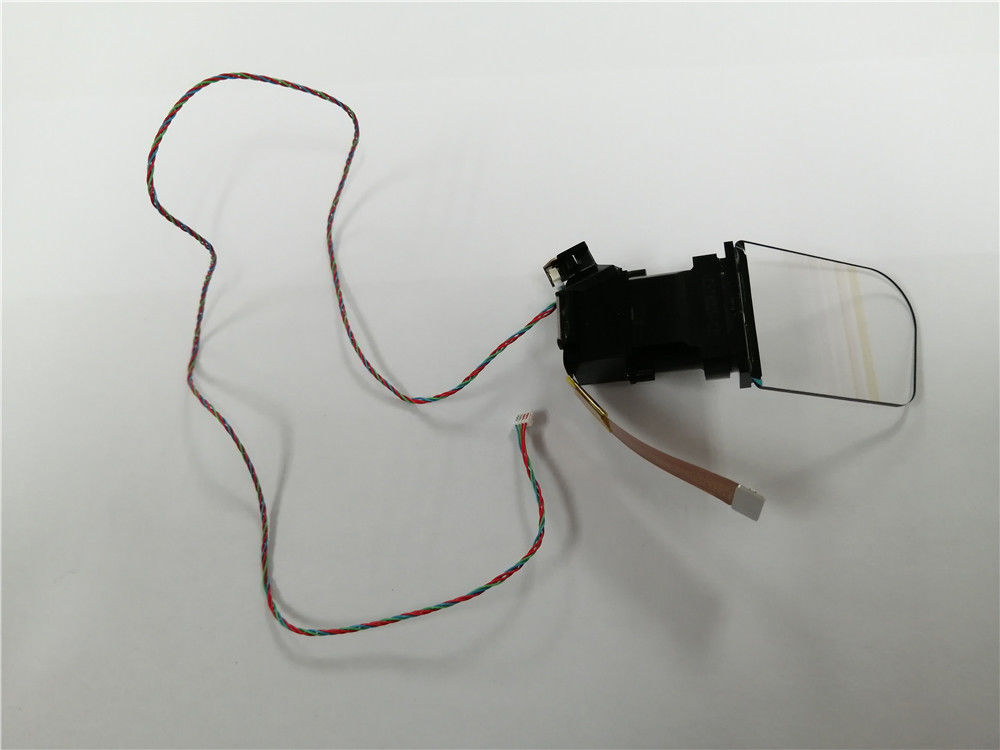

LCoS Monocular HD 0.39" MIPI Micro Display Module For HUD
50pcs
MOQ
Negotiable
Price
LCoS Monocular HD 0.39" MIPI Micro Display Module For HUD
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

Monocular HD Micro Display Modul

,

0.39" MIPI Micro Display Module

,

LCoS HUD Display Module

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days (sample)
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Specifications
Technology: Liquid Crystal On Silicon
Resolution: 1920X1080
FOV: 40°
Screen Quantity: Binocular&monocular
Driver Interface: USB Type-c
Distortion: <4%
Product Description



Monocular HD 1920 * 1080 Resolution 0.39" MIPI Micro Display Module For HUD





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion <4%
Transmittance Rate >82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g







LCOS Screen Details



Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging





Features



  • Small size display with full HD: 0.39 inch 1920 * 1080 LCOS micro display

  • Wide range of color reproduction.

  • The display is MIPI interface.

  • Use optical waveguide technology.

  • This LCoS micro display module has binocular and monocular.

  • The display module is light in weight and small in size

  • The waveguide lens is ultra-thin, only 15mm

  • It is plug and play, very convenient to use



Application areas



  • Portable civilian equipment, such as HUD, smart motorcycle helmet, AR glasses, head entertainment equipment, 3D display, game helmet, etc.
  • Electronic viewfinder for digital cameras/cameras.
  • Security monitoring, military use: individual helmet display, electronic sight, infrared night vision, thermal imaging display, electronic telescope, aircraft helmet, gun sight, life detection vision equipment.
  • Medical and industrial applications: human-machine vision engineering research, endoscopy, portable B-ultrasound, vision correction equipment, glasses, various portable test equipment.
  • Aviation model: aerial photography, remote control aircraft parameter display system, remote control car video display terminal, etc.
  • Minerals: coal exploration, metal mineral exploration



our service

  • Samples will be sent out quickly, and samples will be shipped within 3-7 working days.
  • The warranty period of the module is 12 months.

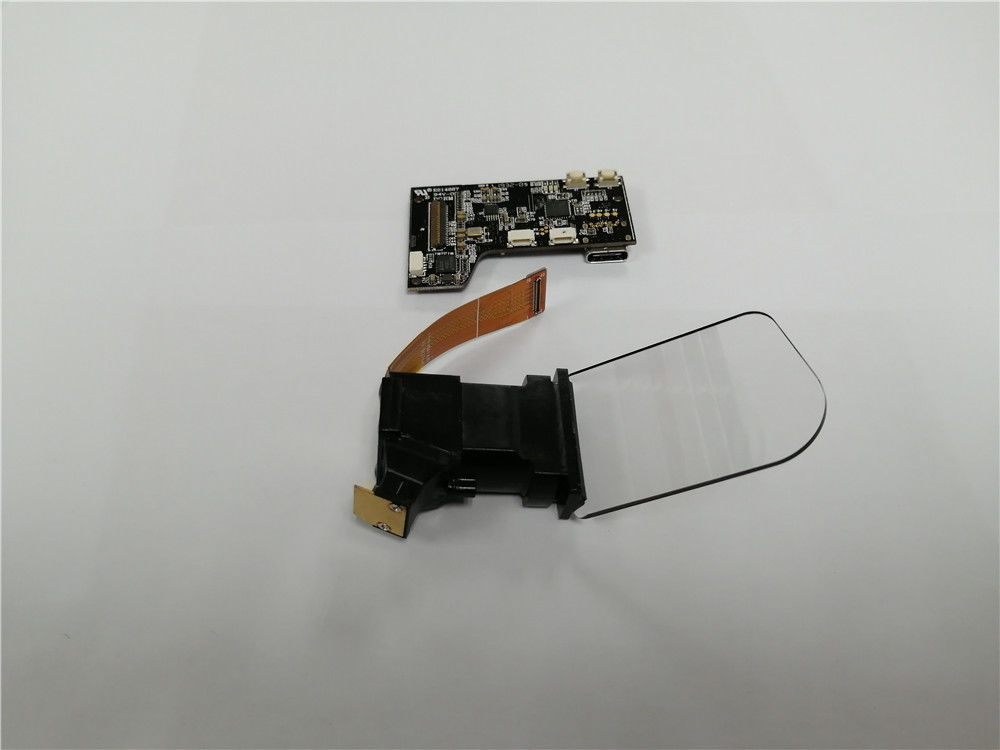

  • We can provide monocular and binocular, and both have driver boards.
  • Driver boards with various interfaces can be customized, and we will design according to your needs.
  • Small orders are welcome!
