0.39" MIPI 40° FOV Oled Micro Display LCoS For Motorcycle Helmet
50pcs
MOQ
Negotiable
Price
0.39" MIPI 40° FOV Oled Micro Display LCoS  For Motorcycle Helmet
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

40° FOV Oled Micro Display

,

0.39" MIPI Oled Micro Display

,

LCoS Motorcycle Helmet Display Module

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days (sample)
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Specifications
Display Interface: MIPI
Resolution: 1920X1080
Lens Thickness: 15mm
FOV: 40°
Driver Interface: USB Type-c
Module Weight: 16g
Product Description

0.39" MIPI Interface 40° FOV LCoS Micro Display Module For Motorcycle Helmet





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion <4%
Transmittance Rate >82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g







LCOS Screen Details



Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging





Features





  • Small size display with full HD: 0.39 inch 1920 * 1080 LCOS micro display

  • The display module is light in weight and small in size

  • The waveguide lens is ultra-thin, only 15mm

  • Low power: 350mW

  • High light transmittance:> 82%

  • Wide range of color reproduction.

  • Use optical waveguide technology.

  • This LCOS micro display module has binocular and monocular

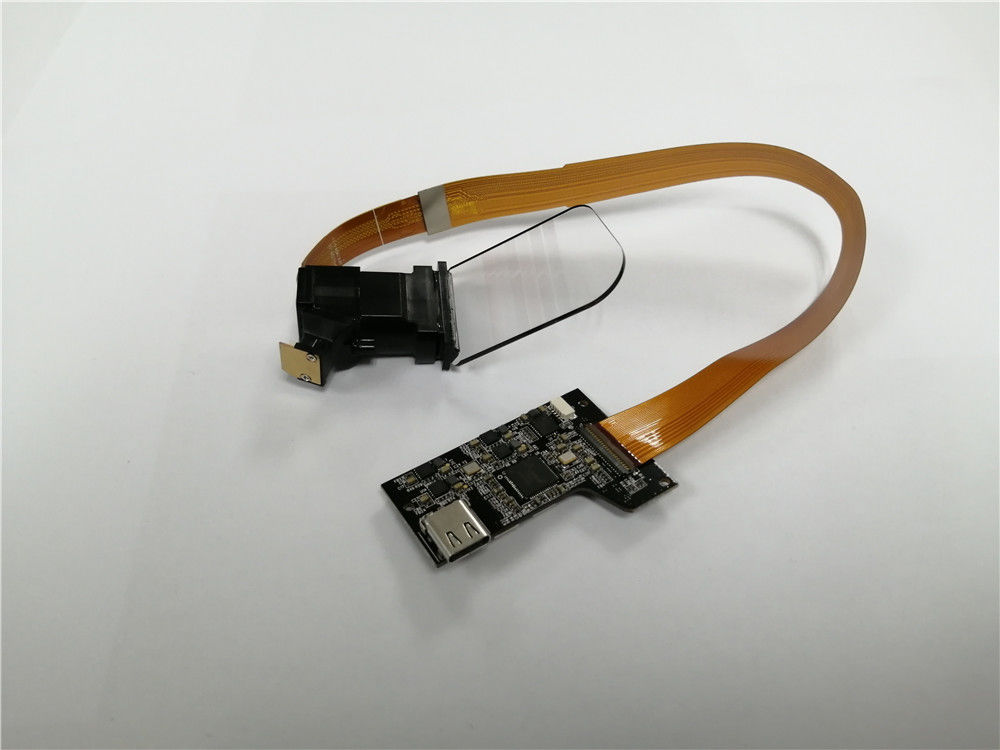

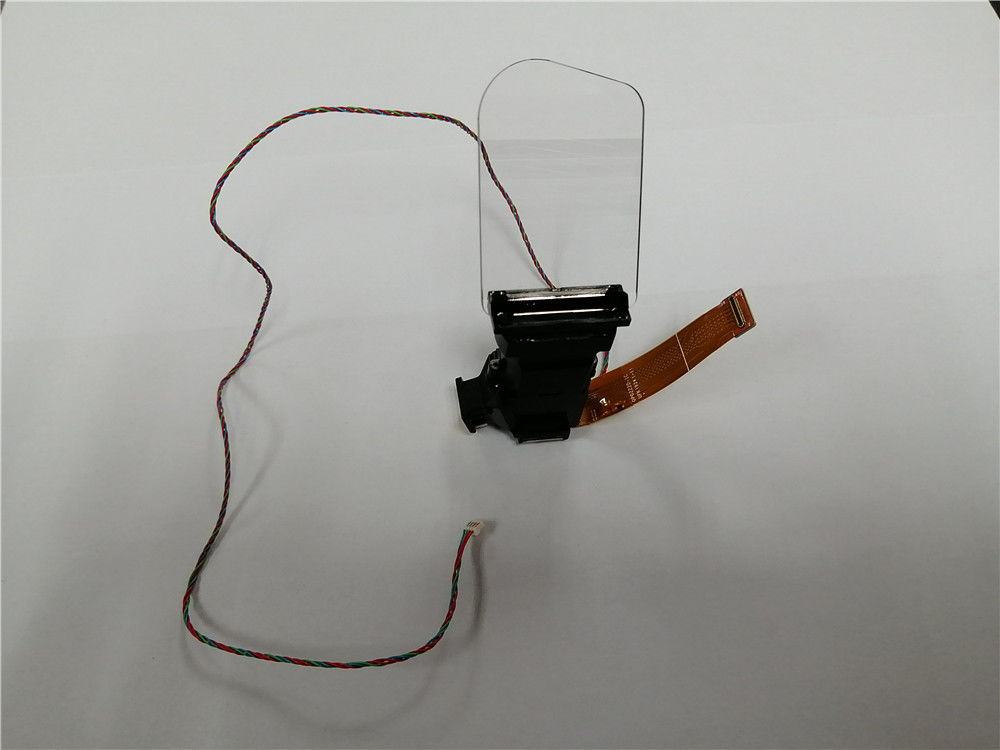

0.39" MIPI 40° FOV Oled Micro Display LCoS  For Motorcycle Helmet 0
