LCoS Monocular FHD 0.39" MIPI Display Module For AR Glasses
LCoS Monocular FHD 0.39" MIPI Display Module For AR Glasses
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

FHD 0.39" MIPI Display Module


Monocular MIPI Display Module


LCoS AR Glasses Display Module

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days (sample)
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Display Interface: MIPI
Resolution: 1920X1080
FOV: 40°
Screen Quantity: Binocular&monocular
Driver Interface: USB Type-c
Distortion: <4%
Product Description

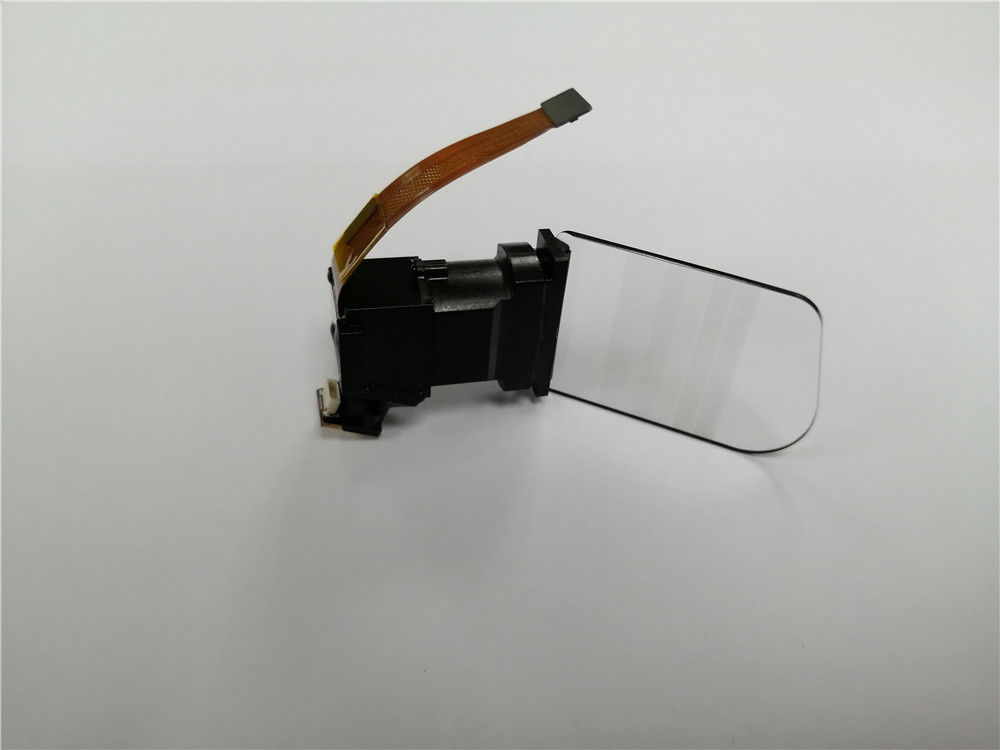

MIPI LCoS Binocular & Monocular HD 0.39" Micro Display Module For AR Glasses



Product Details


Display Technology Waveguide
Virtula Screen Size


Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion <4%
Transmittance Rate >82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g




LCOS Screen Details


Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging





  • Small size display with full HD: 0.39 inch 1920 * 1080 LCOS micro display

  • High contrast ratio: 200:1

  • Low power: 350mW

  • High light transmittance:> 82%

  • Wide range of color reproduction.

  • Use optical waveguide technology.

  • This LCOS micro display module has single eye and double eye.

  • The display module is light in weight and small in size

  • The waveguide lens is ultra-thin, only 15mm


our service

  • Samples will be sent out quickly, and samples will be shipped within 3-7 working days.
  • The warranty period of the module is 12 months.
  • We can provide monocular and binocular, and both have driver boards.
  • Driver boards with various interfaces can be customized, and we will design according to your needs.
  • Small orders are welcome!
