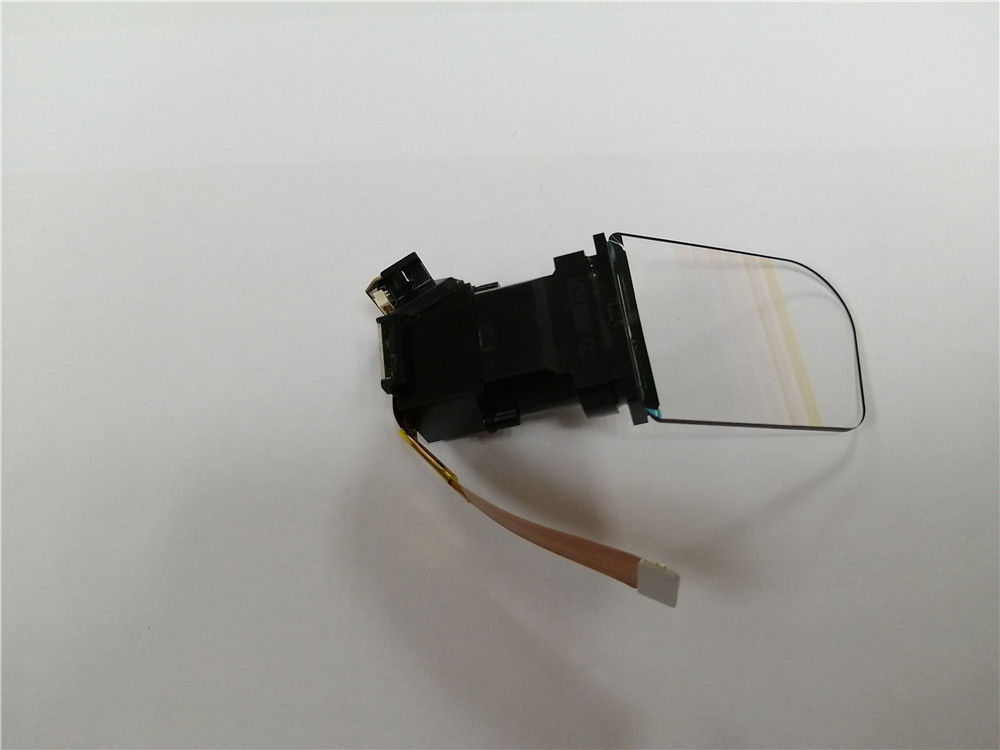

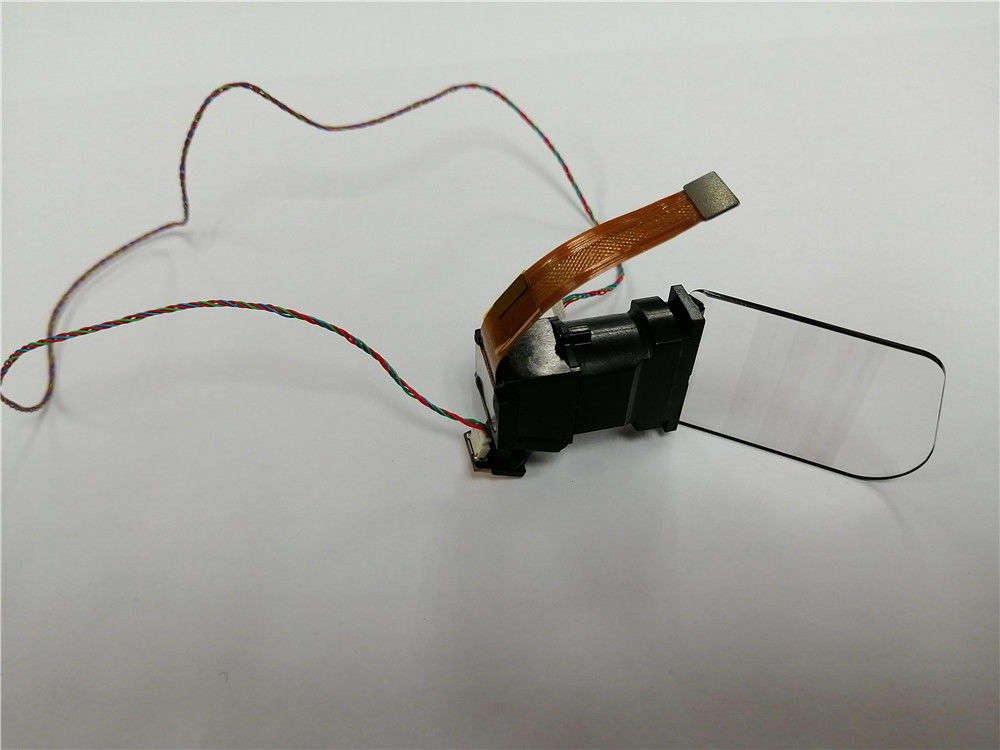

Waveguide LCoS Binocular Monocular Micro Display Module
50pcs
MOQ
Negotiable
Price
Waveguide LCoS Binocular Monocular Micro Display Module
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

Monocular Micro Display Module

,

Waveguide LCoS Micro Display Module

,

Binocular Oled Micro Display

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days (sample)
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Specifications
Screen Size: 0.39 Inch Waveguide
Resolution: 1920X1080
FOV: 40°
Eye-box: 8*8mm²
HDMI Interface: Customizable
Distortion: <4%
Product Description

Waveguide LCoS Binocular & Monocular 0.39 Inch Micro Display Module For Education





LCoS technology





The LCoS micro display module is a new reflective display technology that combines LCD and CMOS integrated circuits. As a new display device, LCoS has many advantages such as large screen, high brightness, high resolution, and energy saving.



It is a new type of reflective micro LCD projection technology.



Micro display module products help OEMs quickly launch consumer products at a lower cost by providing a complete solution. Our micro display module enables manufacturers of mobile smart video glasses to focus on the innovative process of designing fashionable products that consumers want, thereby freeing them from the trouble of technically complex display systems.





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Eye-box 8*8mm²
Eye-relief 18mm
Distortion <4%
Transmittance Rate >82%
LCoS Screen Size 0.39"
FPS 120Hz
Pixel Pitch 4.5μm
Module Weight 16g







LCOS Screen Details



Display Type Reflective type LCoS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast Ratio 50:1
Debugging Method 12C interface debugging





Features



  • Use LCOS optical waveguide technology
  • High resolution
  • Large FOV
  • Light weight and small size
  • The picture quality is clear
  • Small distortion



AR Education



AR education is a new form and content of education produced by applying AR (augmented reality) technology to the education field. The essence of AR education is still education, but because it is combined with AR, there are many new features and new teaching methods and learning methods.



AR education is suitable for all age groups and can be divided into AR early education, AR primary and secondary education, AR higher education, AR vocational education and AR corporate training.

Compared with traditional education, AR education has many unparalleled characteristics and advantages:



1. Three-dimensional and intuitive teaching content and teaching methods.

2. Strong interaction and participation.

3. Gamification teaching.

4. Reduce risks in teaching.

5. Promote the equalization of educational resources.
