Place of Origin:
CHINA
Brand Name:
ENMESI
Certification:
CE,ROHS,FCC,CCC
Model Number:
R3

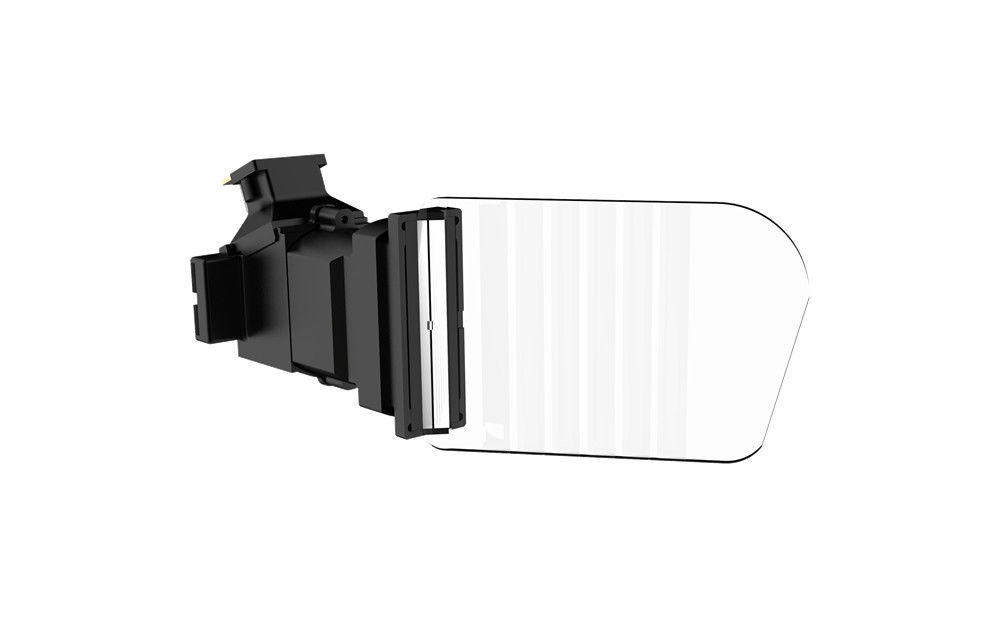

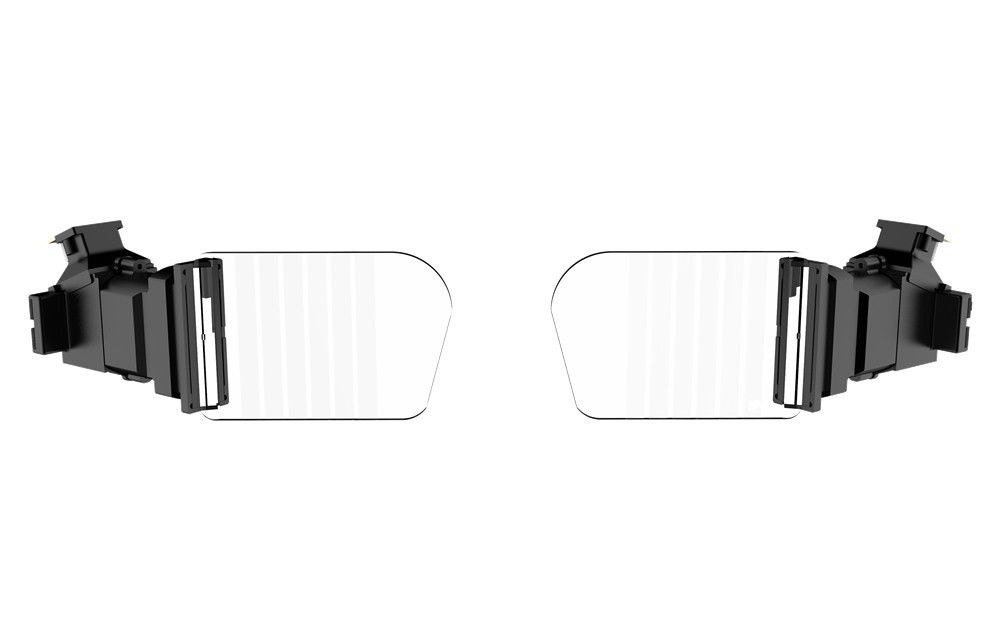

Optical Waveguide LCoS Micro Display Module HD 0.39 Inch For Head Up Display
LCoS technology
The LCoS micro display module is a new reflective display technology that combines LCD and CMOS integrated circuits. As a new display device, LCoS has many advantages such as large screen, high brightness, high resolution, and energy saving.
It is a new type of reflective micro LCD projection technology.
Micro display module products help OEMs quickly launch consumer products at a lower cost by providing a complete solution. Our micro display module enables manufacturers of mobile smart video glasses to focus on the innovative process of designing fashionable products that consumers want, thereby freeing them from the trouble of technically complex display systems.
Product Details
| Display Technology | Waveguide |
| Virtula Screen Size |
86"(3M) |
| Resolution | 1920X1080 |
| Waveguide Lens Thickness | 1.5mm |
| FOV | 40° |
| Eye-box | 8*8mm² |
| Eye-relief | 18mm |
| Distortion | ＜4% |
| Transmittance Rate | ＞82% |
| LCoS Screen Size | 0.39" |
| FPS | 120Hz |
| Pixel Pitch | 4.5μm |
| Module Weight | 16g |
LCOS Screen Details
| Display Type | Reflective type LCoS(Liquid Crystal on Silicon) |
| Size | 0.39" |
| Resolution | 1920X1080 |
| Frame Rate | 60Hz |
| Interface Mode | MIPI |
| Contrast Ratio | 50:1 |
| Debugging Method | 12C interface debugging |
Features
AR technology used in cars(HUD)
When driving, AR technology allows us to obtain more information and improve driving safety.
During the driving process, our eyes swim outside the front windshield, the left and right middle rearview mirrors, the central control panel and the interior screen of the car. Oh, and on the phone screen. Oh, remember to turn your head to look at the blind spot when switching routes!
Tired? Then imagine, when all the above information content is brought together in front of your eyes, you only need to focus on the front display screen and you can handle various things. How easy and pleasant it will be!
