1080P Sony 0.7 Inch OLED Display HD LVDS Micro Display Module For AR Glasses

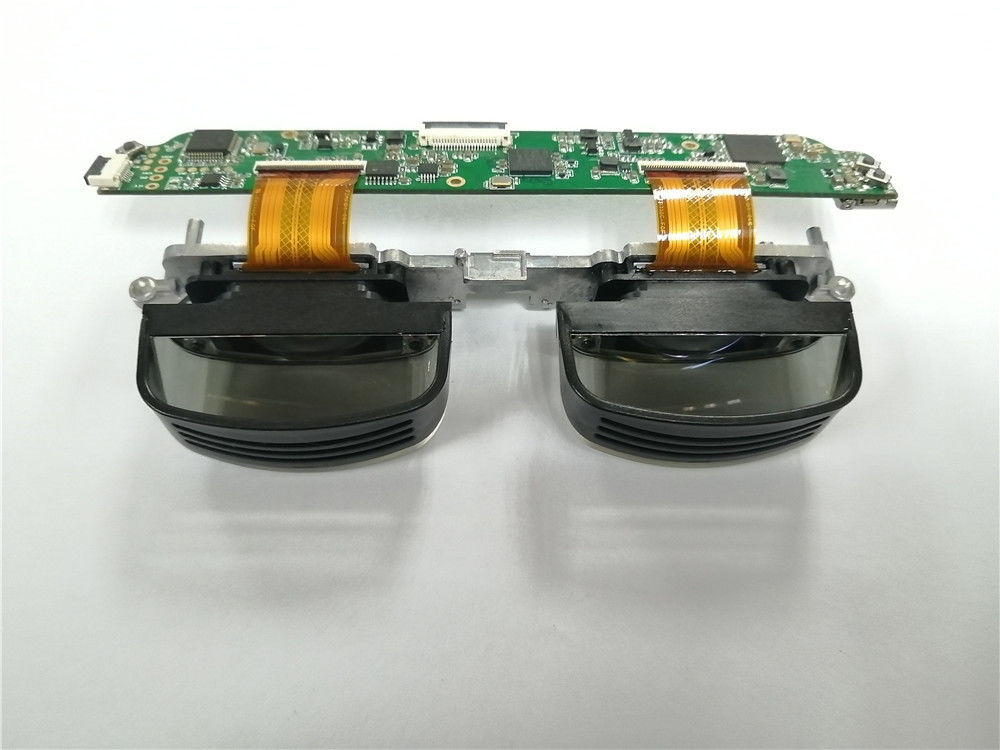

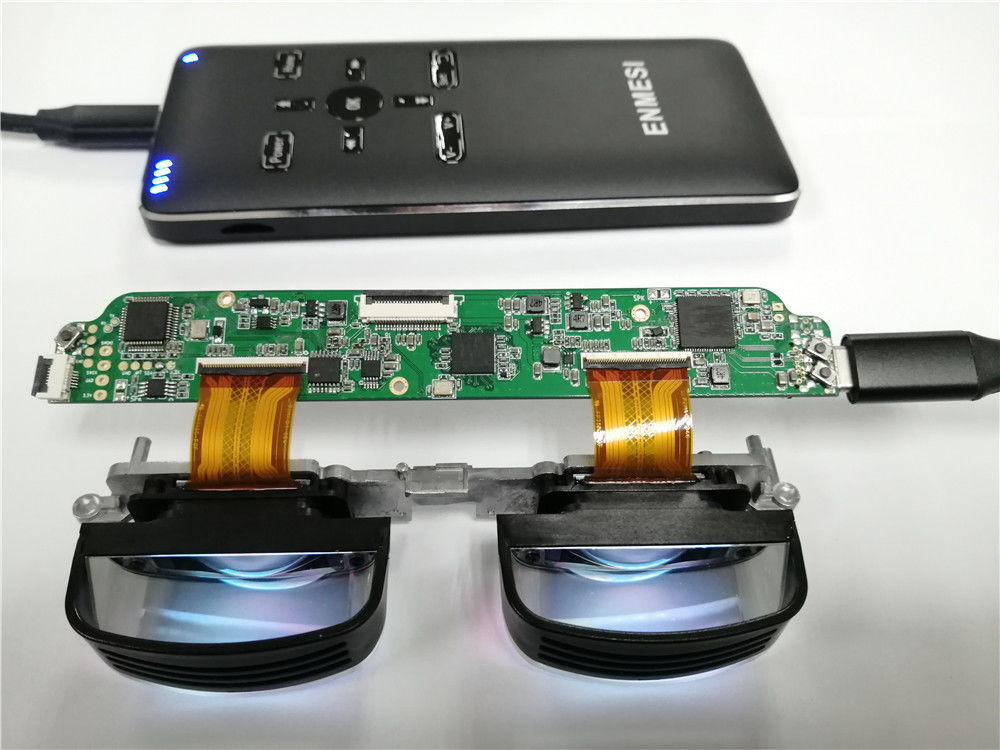

R8 Binocular AR display module consists of three parts:display source,optical lens and connector. Display OLED with a source of 0.7 inch, two optical lenses using a light path reflected by a common axis surface, secured together by a connector.
2 screens, binocular
63mm(Fixed pupil distance)
0.76% (Pincushion distortion)
Number of colors
Number of pairs
37mm * 33mm
Small size and high resolution type 0.70 display
Effective dots: 1920 (RGB)×1080 = 6.22 M dots
Ultra high contrast
Wide color gamut
Fast response speed
Thin and light in weight
Power saving (PS) function
Scan direction selection, up or down and right or left.
Pupil distance:Because the FPC line of the screen is too short, the pupil distance is fixed, and the fixed pupil distance is 63mm. Connector structure can also be customized according to customer needs.
FOV:The FOV of R8 refers to the diagonal field of view of single-purpose virtual image, and the FOV is 51 degrees. Equivalent to a 75 inch screen at 2m. The aspect ratio of display source is 16:9.
Distortion: The virtual image of R8 is distorted with a maximum value of 0.76%.
MTF: Optical lenses usually use MTF to indicate image clarity, and the MTF of R8 is greater than 0.2@30lp/mm.
Eye relief and Eye pupil: The distance from the last vertex of an optical lens to the intersection of the eye pupil plane and the optical axis is called the eye pupil distance. The human eye’s pupil needs to coincide with the eye pupil to see the whole field of view. Eye pupil is the minimum diameter through which the outgoing light passes together. Within this range, pupil can see all the field of view. R8 eye relief is 20mm,eye pupil is 8mm.
