Place of Origin:
Shenzhen,China
Brand Name:
ENMESI
Certification:
CE,FCC,ROHS
Model Number:
R8

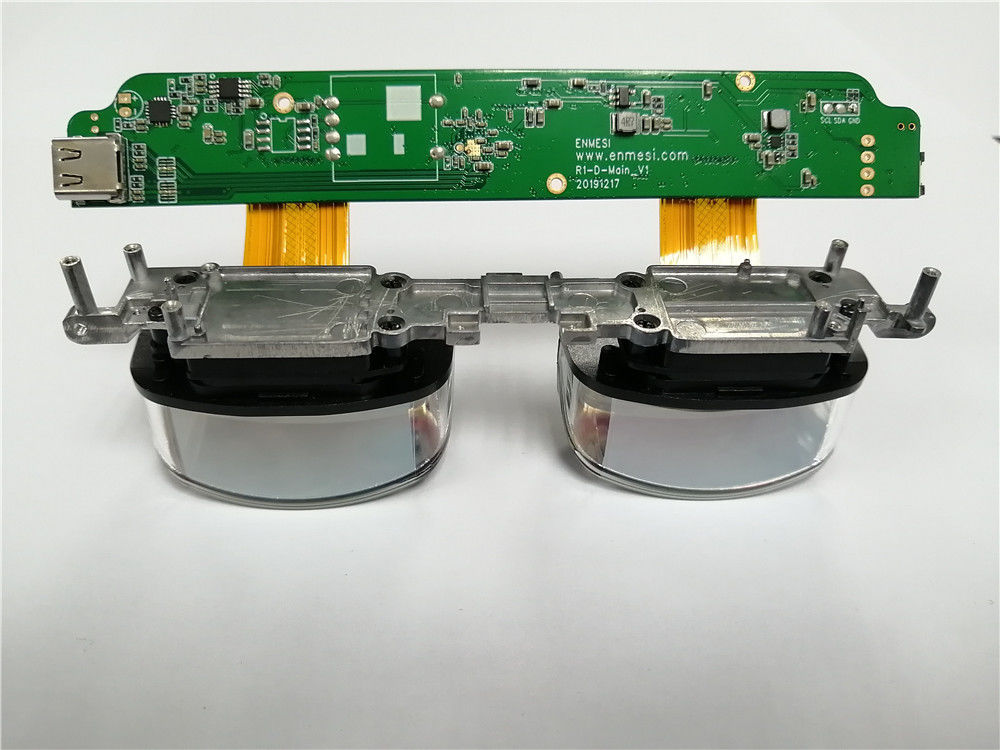

OLED Display Binocular HD 51 Degrees Lager FOV 0.7 Inch Micro Display Module
The optical performance of AR display module mainly includes the following aspects: real scene transmittance, virtual image brightness, virtual image distance, FOV, distortion, eye relief , eye pupil, image quality (MTF) etc.
Product Details
| Resolution | Full-HD 1920*1080 |
| Display Material | OLED |
| Screen Size | 0.7" |
| Quantity | 2 screens, binocular |
| FOV | 51° |
| Pupil distance | 63mm(Fixed pupil distance) |
| Eye relief | 15mm |
| Exit pupil | 8mm |
| Brightness | 3000 nits |
| Distortion | 0.76% (Pincushion distortion) |
| Frame Rate | 60Hz |
| Number of colors | 24bit (16777K) |
| Supply voltage | +5VDC |
| Current | <200mA |
| Number of pairs | 24bit (16777K) |
| Size | 37mm * 33mm |
| Weight | 9.5g |
Product features
