Sony 336C 0.23 Inch Waveguide 640 * 400 OLED Micro Display Module For HUD

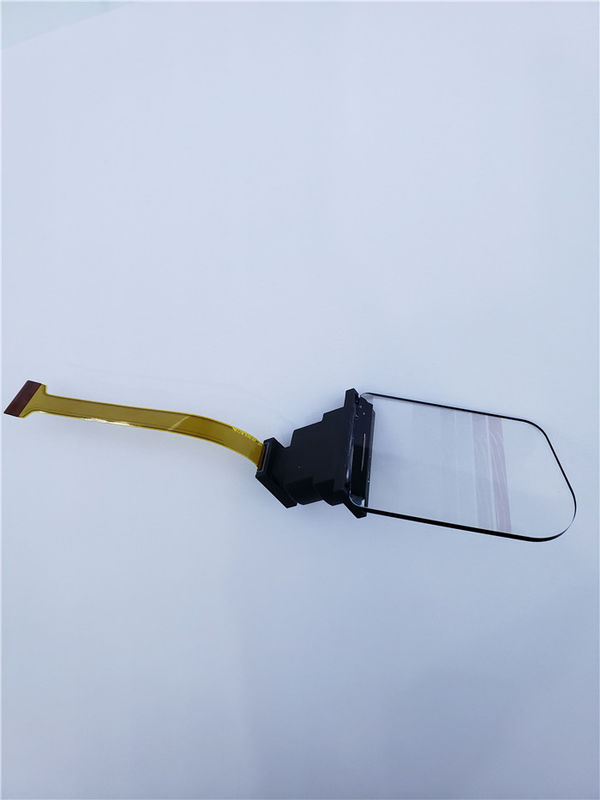

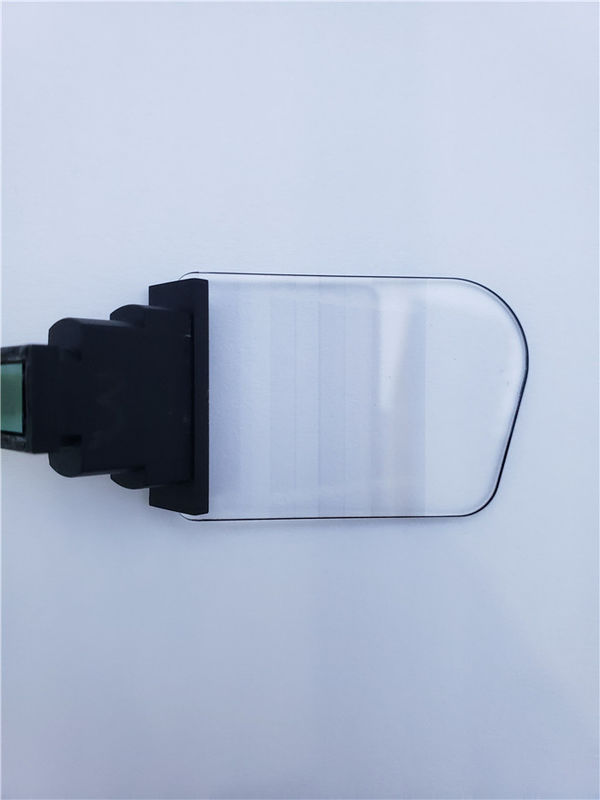

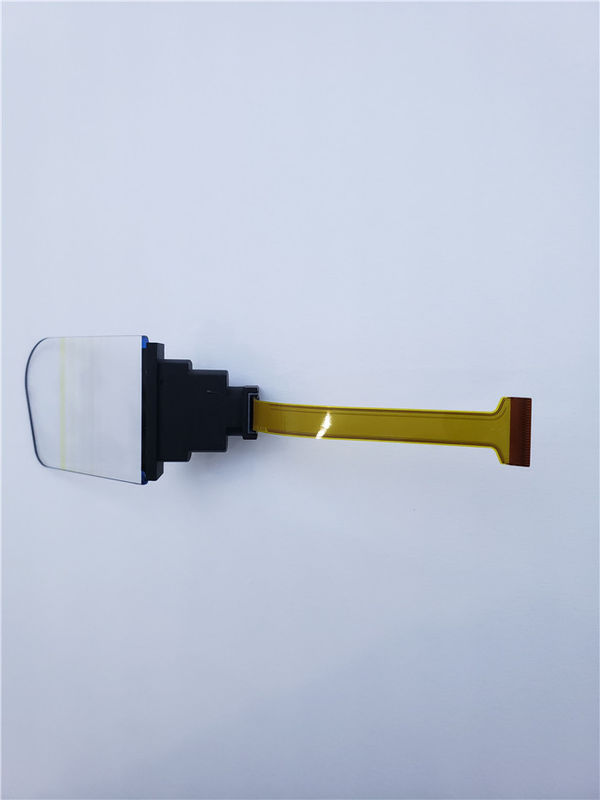

0.23 inch optical waveguide module is composed of three parts, an OLED ( Organic Light-Emitting Diode ), an optical engine and a geometrical waveguide. The OLED image collimated by the optical engine; the final imaged will be guided into the geometrical waveguide. Finally, an 52” virtual image displays at 3 meters away, the FOV (Field of View) can reach 25 degrees at that point.
The OLED uses Sony 336C.
Virtula Screen Size
Waveguide Lens Thickness
LCOS Screen Size
Power up sequence
Set XCLR to low and turn on 1.8V power supply to initialize.
1ms after completion of 1.8 V power supply rising, set XCLR to high, then the panel changes to the power-saving mode.
After XCLR set to high, turn on 10V power supply.
Implement all the register settings and perform PS register off by serial communication to cancel power-saving mode.
Then the panel changes to the normal state.
The display mode of the binocular module
The left-eye module is worn on the user’s left-side and the optical imaging will display in front of the left eye. The right-eye module is worn on the user’s left-side and the optical imaging will display in front of the right eye.
