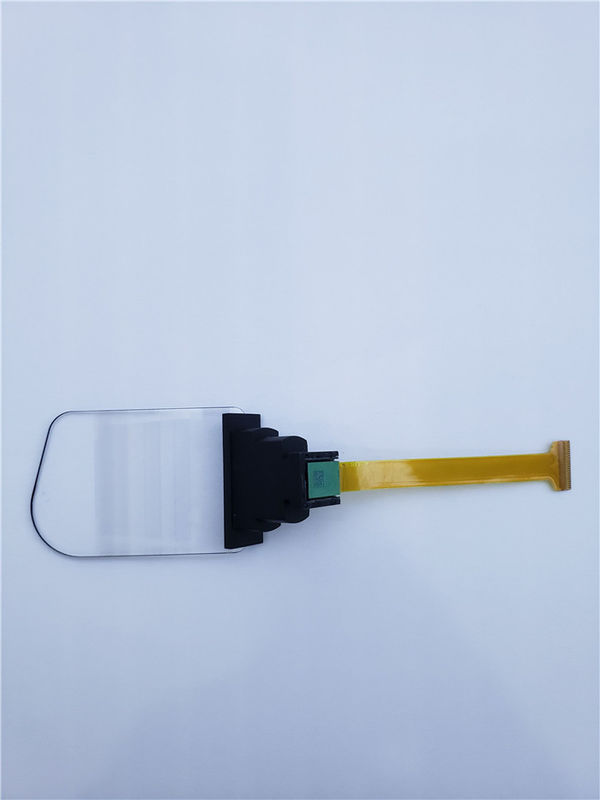

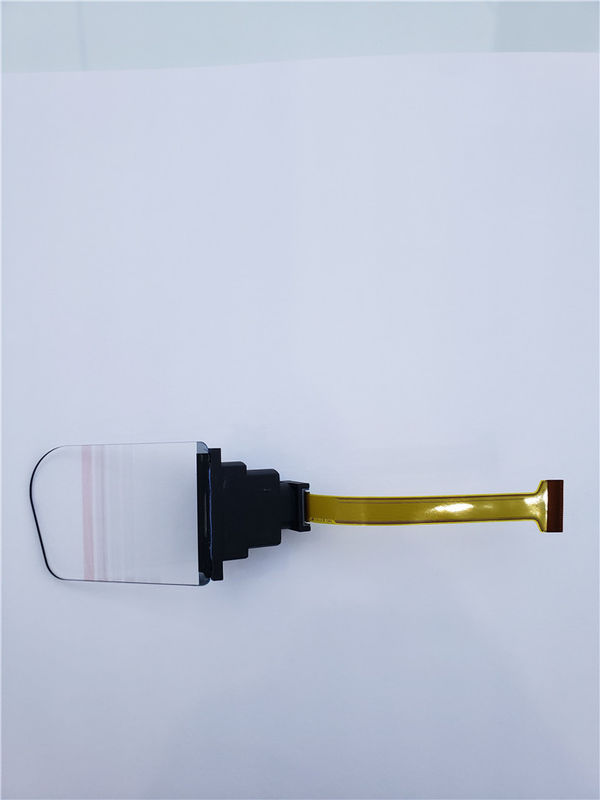

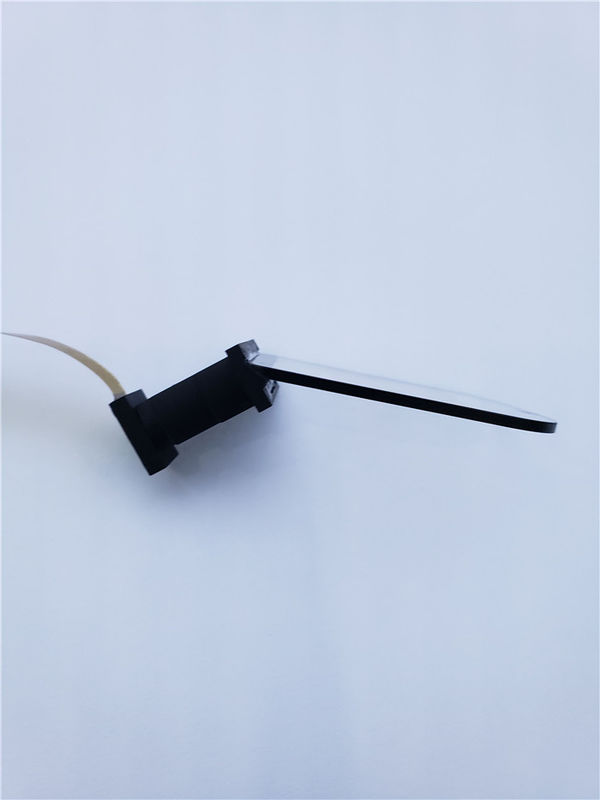

0.23" OLED Waveguide AR Glasses Micro Display Module

AR Glasses Micro Display Module

Waveguide Micro Display Module

0.23" OLED Display Module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC,CCC

Model Number:

Request A Quote

Product Details

Display Type:

OLED Display Module

Resolution:

640*400

Technology:

Optical Waveguide

Size:

0.23"

Eye-box:

15*10mm

Eye Relief:

26.5 Mm

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

Gift box

Delivery Time

3-7 work days

Payment Terms

Western Union, T/T etc.

Supply Ability

5000pcs/month

China Near Eye Optical Waveguide Micro Display Module 0.39" 40° FOV With LCOS Screen

Get Best Price

Full HD Binocular Flexible OLED Display Module 0.7" Screen For Video Glasses

Get Best Price

TYPE-C AR Display 1920 * 1080 OLED Birdbath Micro Display Module For HUD

Get Best Price

0.49 Inch 41 Degrees FOV OLED Micro Display Module 1920 * 1080 Resolution

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

0.23 Inch OLED Waveguide 0-90 Nits Micro Display Module For Wearable AR Glasses

Product introduction

0.23 inch optical waveguide module is composed of three parts, an OLED ( Organic Light-Emitting Diode ), an optical engine and a geometrical waveguide. The OLED image collimated by the optical engine; the final imaged will be guided into the geometrical waveguide. Finally, an 52” virtual image displays at 3 meters away, the FOV (Field of View) can reach 25 degrees at that point.

The OLED uses Sony 336C.

Product Details

Display Technology	Waveguide
Virtula Screen Size	52"(3M)
Resolution	640X400
Waveguide Lens Thickness	1.5mm
FOV	25°
Eye-box	15*10 mm
Eye Relief	26.5mm
Transmittance Rate	≥82
LCOS Screen Size	0.23"

Features

Small size display with full high definition(0.23" OLED 640*400).
High contrast
Wide range of color reproduction
High response speed
Thin and light
Power saving function
Up/down/left/right inverse display function
Transparent optical waveguide lenses with a thickness of only 1.5mm, ideal for AR products.
The OLED micro display module can reduce customer development time and cost. It has small volume, light weight and can be easily applied to customer product development and design.
Easy use, plug power supply and input signals, then it will work.
Automatically adjust monitor brightness according to ambient brightness, maximum energy saving.
Modular design, easy to maintain.

Optical specifications

MTF: When the spatial frequency is 30.0 lp/mm, the MTF of the module is more than 0.2.
Distortion: less than 3%.
Field of View:

Vertical: 13.4°

Horizontal: 21.3°

Diagonal: 25.0°

0.23" OLED Waveguide AR Glasses Micro Display Module 0

Tag:Micro display module, OLED display, Optical waveguide display module.
