Place of Origin:
Shenzhen,CHINA
Brand Name:
ENMESI
Certification:
CE,FCC,ROHS,CCC
Model Number:
R8

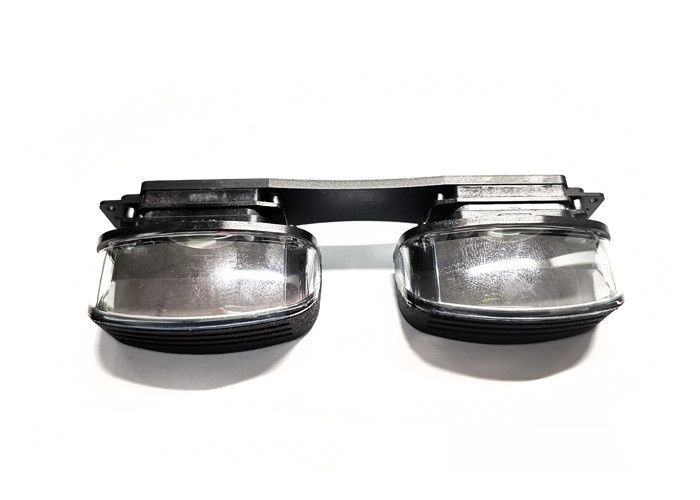

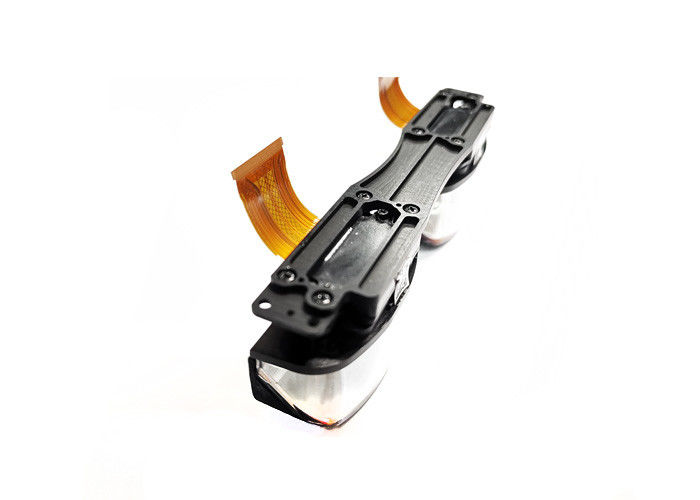

OLED Module Binocular 0.7 Inch Sony High Resolution 1080P OLED Micro Display Modules
Micro Display technology is a branch of the Display technology field. Although the word "micro-display" has been proposed in recent years, display devices with the characteristics of "micro-display" have long appeared. The original display device with the characteristics of "micro-display" is the helmet suspension micro-CRT with an optical amplification device. As the market evolves, display devices require alternatives to CRT with smaller, lighter, and less power consumption.
In recent years, researchers have developed a number of different micro-display products to meet the requirements of the market. Micro-display module, which can be divided into monocular and binocular, providing high definition display to meet the military quality.
Product Details
| Resolution | Full-HD 1920*1080 |
| Display Material | OLED |
| Screen Size | 0.7" |
| Quantity | 2 screens |
| FOV | 51° |
| Pupil distance | 63mm(Fixed pupil distance) |
| Eye relief | 15mm |
| Exit pupil | 8mm |
| Brightness | 3000 nits |
| Distortion | 0.76% (Pincushion distortion) |
| Frame Rate | 60Hz |
| Number of colors | 24bit (16777K) |
| Supply voltage | +5VDC |
| Current | <200mA |
| Number of pairs | 24bit (16777K) |
| Size | 37mm * 33mm |
| Weight | 9.5g |
Product Description
ECX335BG is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 active matrix color OLED (Organic Light Emitting Display) panel module, using a single- crystal silicon transistors. The module features a panel driver and a logic driver for a small, lightweight, full-height definition. It supports full-color display in NTSN/PAL progressive systems.
(Apps:View Finder, Headset, Very Small Monitor,ect.)
Product Characteristics
Active matrix color OLED display element with single-crystal silicon transistor on strip drive.
