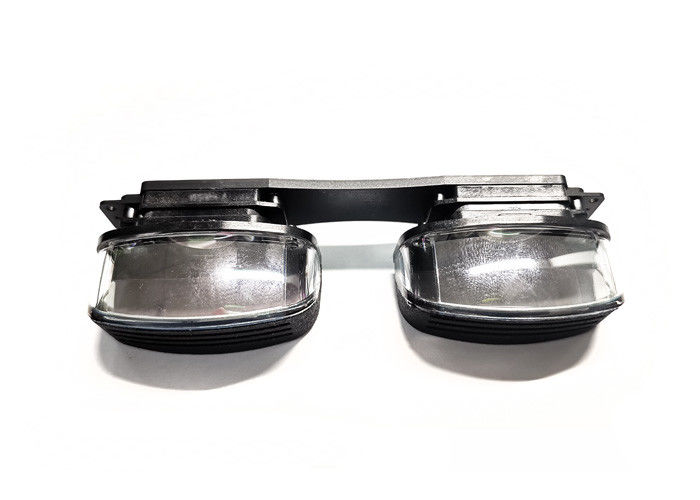

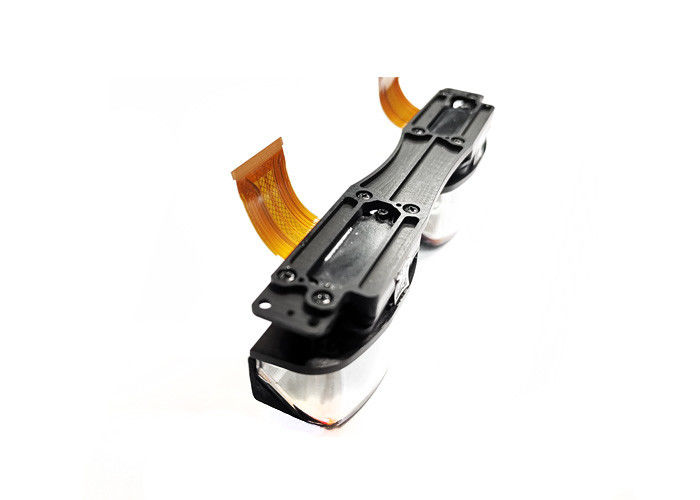

High Resolution 1080P 0.7 Inch OLED Micro Display Module with Binocular View

amoled display module

flexible oled display module

1080P Micro OLED Display Modules

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

Request A Quote

Product Details

Screen:

OLED Technology

Resolution:

1920*1080

FOV:

51°

Weight:

9.5g

Exit Pupil:

8mm

Quantity:

Binocular

Payment & Shipping Terms

Minimum Order Quantity

200pcs

Price

Negotiable

Packaging Details

gift box

Delivery Time

7 work days

Payment Terms

T/T,Western Union,etc

Supply Ability

5000pcs/month

High Resolution 1080P 0.7 Inch OLED Micro Display Module with Binocular View

Get Best Price

LCOS Waveguide Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate

Get Best Price

0.37 Inch LCOS Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate for AR VR Applications

Get Best Price

Near Eye 0.37 Inch 1920 * 1080 *2 Waveguide Micro Display Module With TYPE C

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

High Resolution 1080P OLED Micro Display Modules

Product Overview

ECX335BG OLED Module Binocular 0.7 Inch Sony High Resolution 1080P OLED Micro Display Modules deliver exceptional visual performance in compact form factors. Micro display technology represents an advanced branch of display systems, offering superior alternatives to traditional CRT displays with significantly reduced size, weight, and power consumption.

These high-definition micro-display modules are available in both monocular and binocular configurations, meeting rigorous military-grade quality standards for demanding applications.

Technical Specifications

Specification	Details
Resolution	Full-HD 1920×1080
Display Material	OLED
Screen Size	0.7"
Quantity	2 screens
FOV	51°
Pupil Distance	63mm (Fixed)
Eye Relief	15mm
Exit Pupil	8mm
Brightness	3000 nits
Distortion	0.76% (Pincushion distortion)
Frame Rate	60Hz
Number of Colors	24bit (16.77M)
Supply Voltage	+5VDC
Current	<200mA
Size	37mm × 33mm
Weight	9.5g

Product Details

The ECX335BG features a 1.8 cm (0.71 inch) diagonal, 1920(RGB) × 1080 active matrix color OLED panel module utilizing single-crystal silicon transistors. This advanced module incorporates both panel and logic drivers to achieve compact dimensions and lightweight construction while delivering full high-definition performance.

The module supports full-color display in NTSC/PAL progressive systems, making it ideal for applications including view finders, headsets, and very small monitors.

Key Features

Small Full HD 0.7 inch display module: 1920(RGB) × 1080 × 2
High contrast ratio for superior image quality
Wide color reproduction range
High-speed response time
Lightweight and compact design
Advanced power-saving functionality
Up/down and right/left reverse display capability
Support for tracking systems
Active matrix color OLED display with single-crystal silicon transistor strip drive

Company Advantages

Accept small minimum order quantities (MOQs)
Competitive pricing with short lead times
Comprehensive solutions including OLED modules, TFT LCD modules, drive PCBs, and LCOS modules
