0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses

0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses
0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses 0.39 Inch 1080P LCOS Micro Display Module USB TYPE C Interface For Wearable AR Glasses
Basic Information
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Display Type: LCOS Display Module Resolution: 1920X1080 (Full HD)
Technology: Optical Waveguide Size: 0.39"
Controller Board Interface: TYPE-C Interface Use Purpose: AR/VR
High Light:

flexible oled display module

,

micro oled display module

Micro 0.39 Inch 1080P LCOS Micro Display Modules USB TYPE-C Interface For Wearable AR Glasses

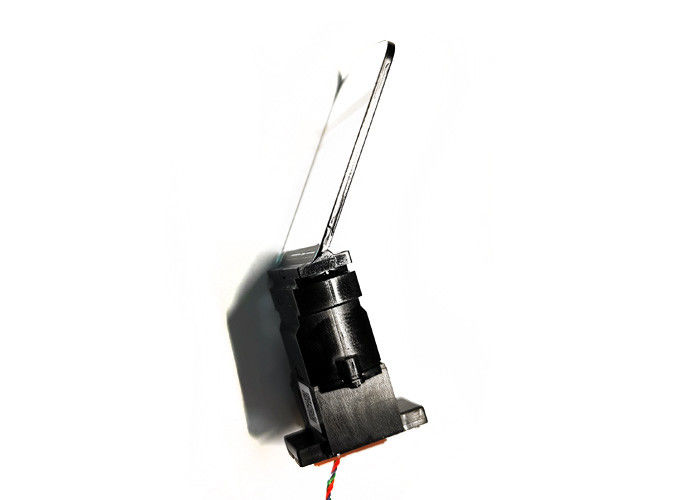

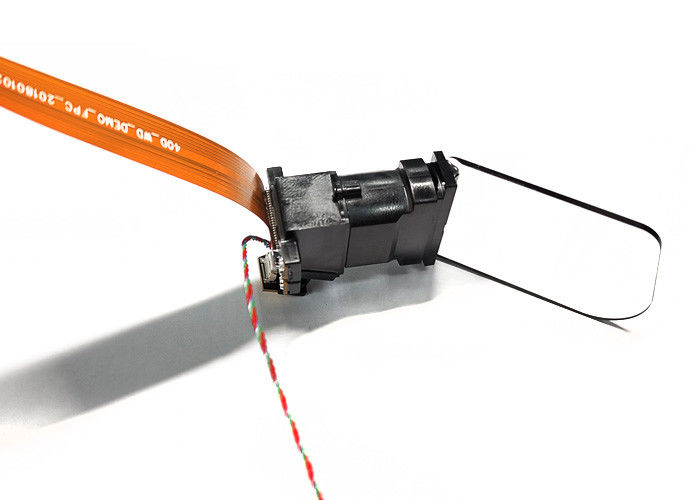

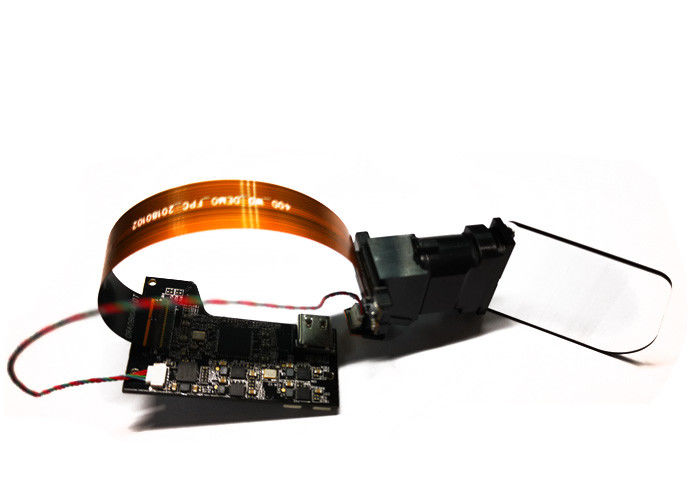

    A grede-quanlity LCOS micro display module(optical waveguide lens+ LCOS display+ imaging lens+ LED lighting module,etc.) is used for augmented reality virtual near-eye display and is a penetrating auxiliary information display device.



Faster delivery



Better quanlity



Better service





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Pupil Distance 18mm
Transmittance Rate >82%
LCOS Screen Size 0.39"
Frame Rate 60Hz







LCOS Screen Details



  • Display type: Reflective type LCOS(Liquid Crystal on Silicon)
  • Frame Rate: 60Hz
  • Interface mode: MIPI
  • Conrast: 200:1
  • Power: 350mW
  • Grey stage: 256
  • Debugging method: 12C interface debugging



Features



  • Small size display with full high definition(0.39" LCOS 1920*1080).
  • High contrast
  • Wide range of color reproduction
  • High response speed
  • Thin and light
  • Power saving function
  • Up/down/left/right inverse display function
  • Transparent optical waveguide lenses with a thickness of only 1.5mm, ideal for AR products.
  • The LCOS micro display module can reduce customer development time and cost. It has small volume, light weight and can be easily applied to customer product development and design.
  • Easy use, plug power supply and input signals, then it will work.
  • High brightness LCOS display, enter eye brightness is 1000nits, readable under direct sunlight.
  • Automatically adjust monitor brightness according to ambient brightness, maximum energy saving.
  • Modular design, easy to maintain.



Our Service



MOQ: 200 pieces



Packing : Protect spackaging



Price terms: China ex-factory price



Payment: Transfer via T/T, Western Union



Shipping: By DHL,EMS air cargo according to your requirements.



Number per month: 10000 delivery method



Delivery date: depending on model and requirements
