China Optical Waveguide Oled Display Module USB C Interface FHD 0.39 Inch Long Lifespan
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ENMESI
Certification: CE,ROHS,FCC,CCC
Model Number: R3
High Light:

amoled display module

,

flexible oled display module

Payment & Shipping Terms
Packaging Details: Gift box
Delivery Time: 3-7 work days
Payment Terms: Western Union, T/T etc
Supply Ability: 5000pcs/month
Specifications
Screen Size: 0.39 Inch
Resolution: 1920X1080
Technology: Optical Waveguide
Display: LCOS Micro Display
Controller Board Interface: TYPE-C Interface
Transmittance: >82%
Product Description

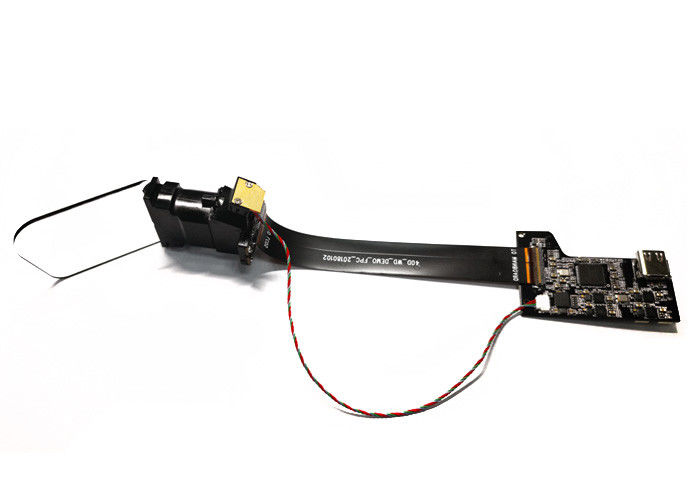

FHD 0.39 Inch Optical Waveguide Micro Display Module TYPE-C Interface LCOS Micro Display





    LCOS micro display module is a new type of reflective display technology combining LCD and CMOS integrated circuits, and LCOS as a new display device has many advantages such as large screen, high brightness, high resolution, power saving and so on.



    It is a new type of reflective micro-liquid crystal projection technology.



    Micro display module products help OEMs quickly roll out consumer products at a lower cost by providing complete solutions.Our micro display modules enable mobile video eyewear manufacturers to focus on the creative process of designing the stylish products consumers want, freeing them from the technical complexities of display systems.





Product Details



Display Technology Waveguide
Virtula Screen Size

86"(3M)

Resolution 1920X1080
Waveguide Lens Thickness 1.5mm
FOV 40°
Pupil Distance 18mm
Transmittance Rate >82%
LCOS Screen Size 0.39"
Frame Rate 60Hz







LCOS Screen Details



Display Type Reflective type LCOS(Liquid Crystal on Silicon)
Size 0.39"
Resolution 1920X1080
Frame Rate 60Hz
Interface Mode MIPI
Contrast 200:1
Power 350mW
Grey Stage 256
Debugging Method 12C interface debugging





Features



  • Small size display with full high definition.
  • High contrast
  • Wide range of color reproduction
  • High response speed
  • Thin and light
  • Power saving function
  • Up/down/left/right inverse display function

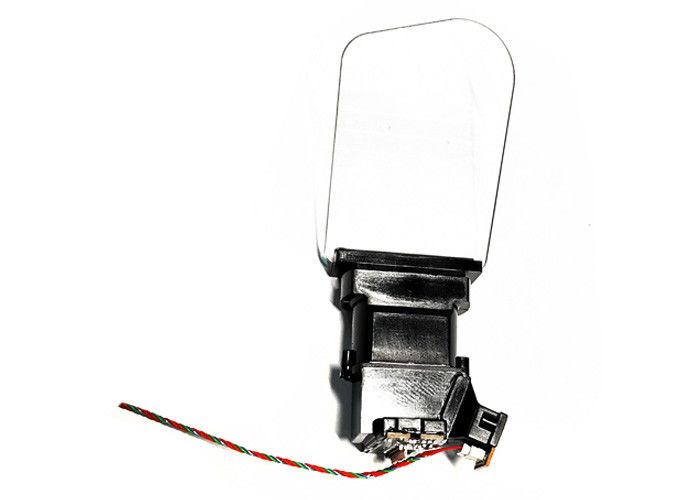

  • Transparent optical waveguide lenses with a thickness of only 1.5mm, ideal for AR products.
  • The LCOS micro display module can reduce customer development time and cost. It has small volume, light weight and can be easily applied to customer product development and design.
  • Easy use, plug power supply and input signals, then it will work.
