Miniature Near-eye Display Optical Waveguide Micro Display Module With LCOS Screen
The following links are similar products:
http://www.enmesi.com/sale-12422095-sony-51-fov-full-hd-oled-micro-display-module-0-7-inch-for-ar-vr-helmet.html
http://www.enmesi.com/sale-13683415-lcos-waveguide-micro-display-module-0-24-inch-for-ar-xr-glasses.html
R3 is a miniature near-eye display of optical modules, mainly composed of optical waveguide, LCOS screen, imaging lens and LED lighting module, mainly used to enhance the reality of virtual near-eye display, is a penetrating auxiliary information display equipment.
Product Details
| Display Technology | Waveguide |
| Virtula Screen Size |
86"(3M) |
| Resolution | 1920X1080 |
| Waveguide Thickness | 1.5mm |
| FOV | 40° |
| Pupil Distance | 18mm |
| Transmittance Rate | ＞82% |
| LCOS Screen Size | 0.39" |
| Frame Rate | 60Hz |
LCOS Screen Describe
LCOS screen resolution is 1920X1080, MIPI interface mode LCOS screen.
LCOS Screen Details
| Display Type | Reflective type LCOS(Liquid Crystal on Silicon) |
| Size |
0.39" |
| Resolution | 1920X1080 |
| Frame Rate | 60Hz |
| Interface Mode | MIPI |
| Contrast | 200:1 |
| Power | 350mW |
| Grey Stage | 256 |
| Debugging Method | 12C interface debugging |

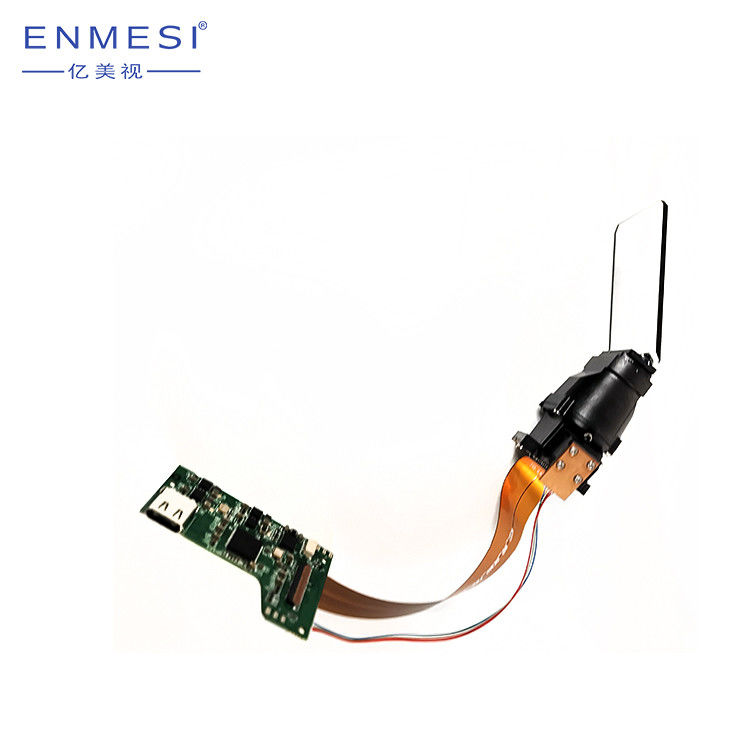

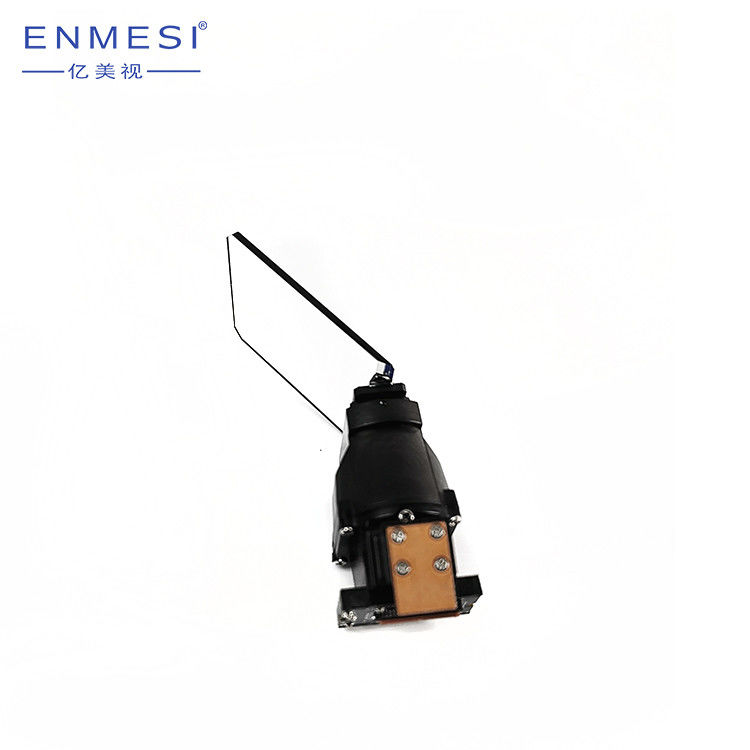

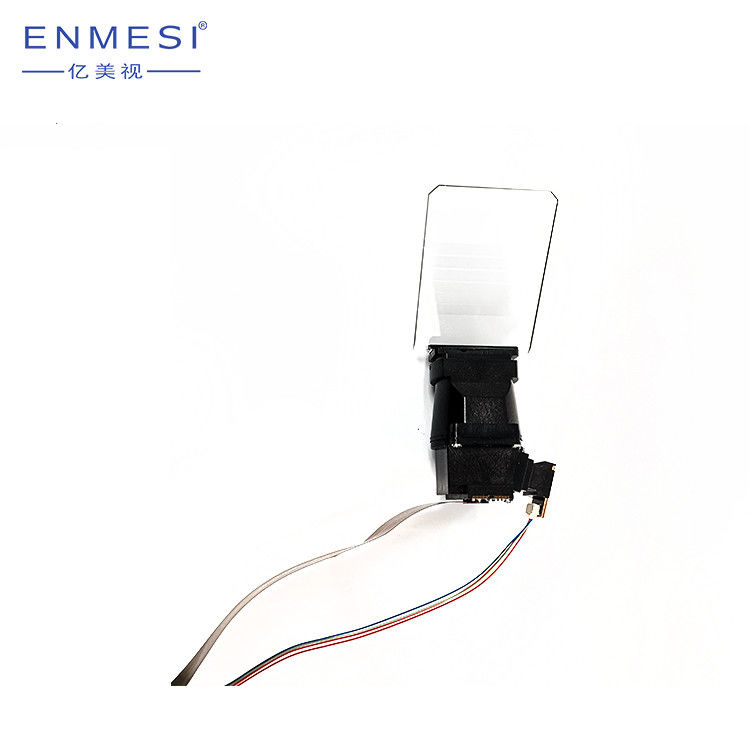

Appearance Graphics
Applications
Mainly used to enhance the reality of virtual near-eye display, is a penetrating auxiliary information display equipment, military helmet display, military display kit, portable night vision device, medical equipment framing, infrared thermal imager framing, laser sight imaging, soldier night vision system, game helmet, intelligent robot framing, computing imaging, distance education, FPV goggles, AV/VR smart glasses, head mounted display, video glasses, head up display etc.
