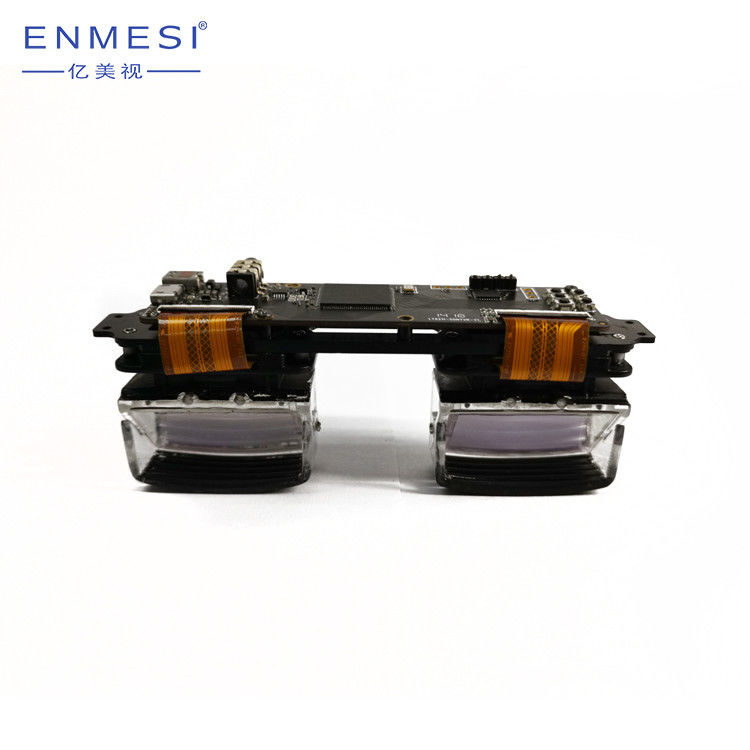

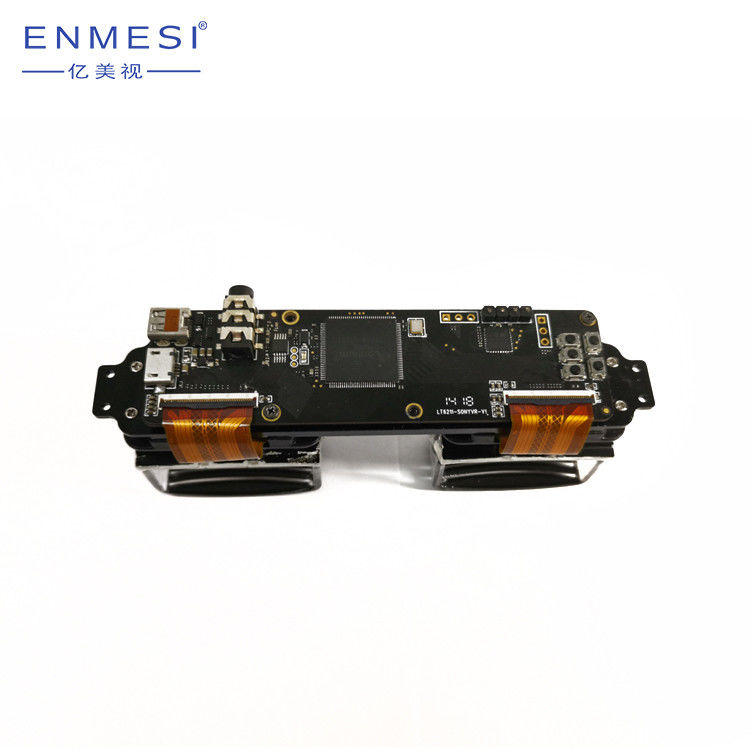

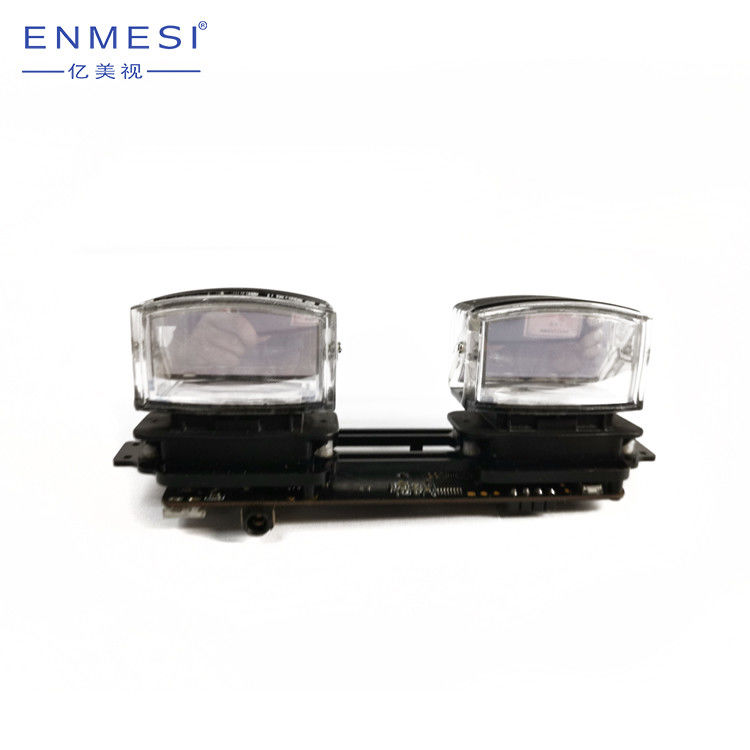

0.7 Inch Binocular OLED Display Module with 1920x1080 Resolution and 51° FOV for AR/VR Glasses

amoled display module

micro oled display module

Sony 1.8cm OLED Display Module

Place of Origin:

Shenzhen,CHINA

Brand Name:

ENMESI

Certification:

CE,FCC,ROHS,CCC

Model Number:

Request A Quote

Product Details

Size:

0.7 Inch

Drive Plate:

Can Be Custom

Resolution:

1920*1080

FOV:

51°

Eye Relief:

15mm

Type:

Binocular

Payment & Shipping Terms

Minimum Order Quantity

200pcs

Price

Negotiable

Packaging Details

gift box,drive plate

Delivery Time

7 work days

Payment Terms

T/T,Western Union,etc

Supply Ability

5000pcs/month

High Resolution 1080P 0.7 Inch OLED Micro Display Module with Binocular View

Get Best Price

LCOS Waveguide Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate

Get Best Price

0.37 Inch LCOS Micro Display Module with 1920x1080 Resolution 40° FOV and 120Hz Refresh Rate for AR VR Applications

Get Best Price

Near Eye 0.37 Inch 1920 * 1080 *2 Waveguide Micro Display Module With TYPE C

Get Best Price

86-15016998664

longyuanyuan@enmesi.com

Contact Now

Product Description

0.7 Inch Binocular OLED Display Module

Product Overview

Sony 1.8 cm 0.7 Inch Binocular Active Matrix Color OLED Panel Module For AR/VR Glasses

Micro Display technology represents a specialized branch of display technology. While the term "micro-display" has gained prominence in recent years, display devices with micro-display characteristics have existed for some time. The evolution of display technology has driven the development of smaller, lighter, and more power-efficient alternatives to traditional CRT displays.

The ECX335BG is a 1.8 cm (0.71 inch) diagonal, 1920(RGB) × 1080 dots active matrix color OLED panel module based on single crystal silicon transistors. This integrated module combines panel driver and logic driver components, achieving compact dimensions, lightweight construction, and high-resolution performance.

Technical Specifications

HDMI & AV Input	Can be customized
Resolution	Full-HD 1920×1080
Display Material	OLED
Screen Size	0.7"
Quantity	2 screens
FOV	51°
Pupil Distance	63mm (Fixed)
Eye Relief	15mm (Main optical axis)
Exit Pupil	8mm
Distortion	0.76% (Pincushion distortion)
Frame Rate	60Hz
Number of Colors	24bit (16.77M)
Supply Voltage	+5VDC
Current	<200mA
Size	37mm × 33mm
Weight	12.8g

Technical Diagrams

Product Features

Small size and high resolution 0.70 inch display
Effective dots: 1920 (RGB)×1080 = 6.22M dots
Ultra high contrast ratio
Wide color gamut
Fast response speed
Thin and lightweight design
Power saving (PS) function
Scan direction selection (up/down and right/left)
Orbit supported
Wide operating temperature range
Uniform picture quality
Excellent image stability

LVDS Interface Specifications

Resolution: Full-HD 1920×1080
Frame Rate: 60Hz
Number of Colors: 24bit (16.77M)
Number of Pairs: Clock: 2 pairs, Data: 8 pairs

Applications

Military helmet displays and display kits
Portable night vision devices
Medical equipment framing
Infrared thermal imager framing
Laser sight imaging systems
Soldier night vision systems
Gaming helmets
Intelligent robot framing
Computing imaging applications
Distance education systems
FPV goggles
AR/VR smart glasses
Head mounted displays
Video glasses
Head up displays
