Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules

Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules
Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules Self-luminous OLED Display Module 0.23 Self-luminous OLED Display Module 0.23 Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules Self-luminous OLED Display Module 0.23 Self-luminous OLED Display Module 0.23 Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules Self-luminous OLED Display Module 0.23 Self-luminous OLED Display Module 0.23
Basic Information
Place of Origin: Shenzhen,China
Brand Name: ENMESI
Certification: CE, ROHS, FCC,CCC
Model Number: R9
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: gift box packaging,
Delivery Time: 7 work days
Payment Terms: T/T, Western Union etc
Supply Ability: 10000pcs/month
Get Best Price Contact Now
Screen Size: 0.23" Display Type: Self-luminous OLED
Quantity: Monocular FOV: 21° （Diagonal）
Power Consumption: 110mW Debug Mode: SPI
High Light:

amoled display module

,

flexible oled display module



Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules HD






Product Description

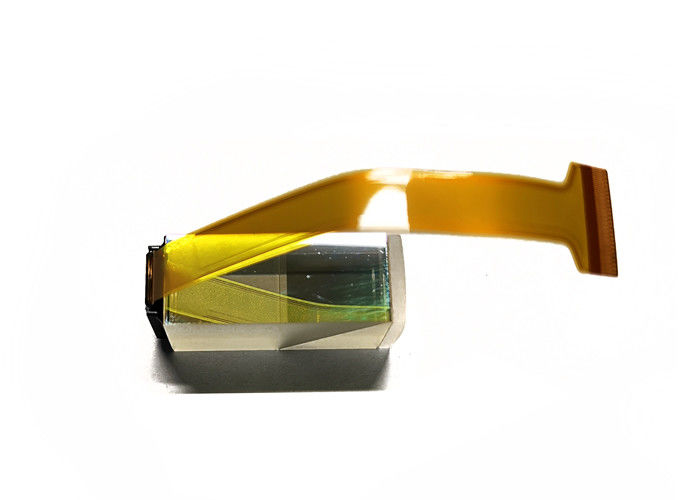

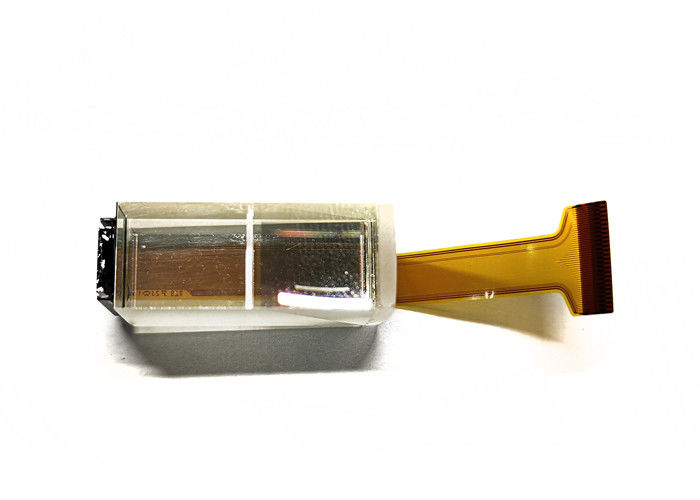

The ECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using
single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight
and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)


Product Details

Screen Size 0.23"

Display type

self-luminous OLED
Quantity Monocular
Virtual screen size 44”(3 m)
Resolution

640(RGB) x 400 dots
FOV 21° (Diagonal)
Lens thickness 10 mm
Exit relief 18 mm
Video signal RGB
Contrast 10000:1

Power consumption

110mW

Debug mode

SPI

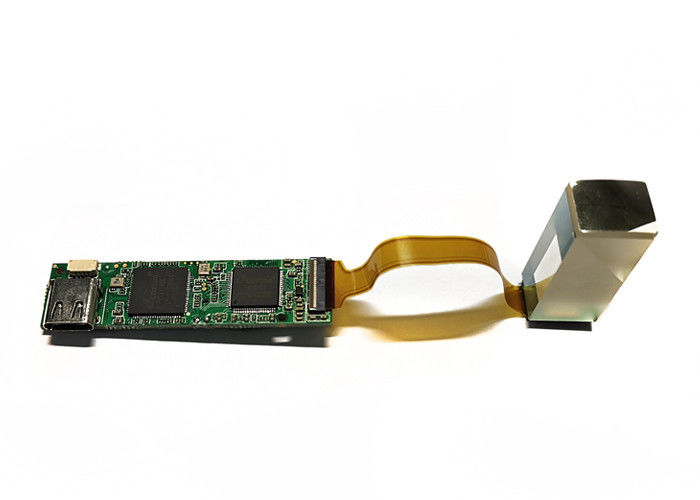

Drive interface TYPE-C







Product Features

  • Small-size, high-definition-type 0.23 nHD+ display dots 640 (RGB) × 400 = 0.77M dots
  • High resolution
  • High contrast
  • Wide color reproduction range
  • High-speed response
  • Thin type and light weight
  • Power-saving function
  • Up/down and/or right/left inverse display function
  • Orbit supported
  • Input interface that supports parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input



System Block Diagram


Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules 0





Power On Sequence



1. Set XCLR to low and turn on 1.8V power supply to initialize.
2. 1ms after completion of 1.8 V power supply rising, set XCLR to high, then the panel changes to the power-saving mode.
3. After XCLR set to high, turn on 10V power supply.
4. Implement all the register settings and perform PS register off by serial communication to cancel power-saving mode.
Then the panel changes to the normal state.
*Complete turning on of 10V power supply before power saving mode off setting, while the order of turning on of 1.8V and
10V power supply is not restricted.

Self-luminous OLED Display Module 0.23" Sony 640 x 400 dots RGB Micro Display Modules 1
