Flexible Micro OLED Display Module Monitor HDMI Customized 0.7 Inch Binocular For Safety

Flexible Micro OLED Display Module Monitor HDMI Customized 0.7 Inch Binocular For Safety

amoled display module

micro oled display module

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Display Chip:
Pupil Distance:
63mm(Fixed Pupil Distance)
Eye Relief:
20mm (Main Optical Axis)
Exit Pupil:
0.76% (Pincushion Distortion)
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
gift box
Delivery Time
7 work days
Payment Terms
T/T, Western Union etc
Supply Ability
Product Description


Flexible Micro OLED Display Module Monitor HDMI Customized 0.7 Inch Binocular For Safety



About us


Shenzhen Anpo Intelligence Technology Co., Ltd. was established in Shenzhen in the early 2014 and established its own factory (Dongguan Zhiyingshixun Technology Co., Ltd) in Dongguan with a total area of over 1,000 square meters., and the brand "ENMESI" was registered in the same year.


ENMESI specializes in the development and trade of special purpose micro-display products, can provide customers with a variety of specifications of micro-display products, and can support the development of related drive circuits for customers.



Product Description

ECX335BG is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution.




Product Details:


HDMI&AV IN can be customized
Resolution Full-HD 1920*1080
Display Material OLED
Screen Size 0.7"
Quantity 2 screens
FOV 51°
Pupil distance 63mm(Fixed pupil distance)
Eye relief 15mm (Main optical axis)
Exit pupil 8mm
Distortion 0.76% (Pincushion distortion)
Frame Rate 60Hz
Number of colors 24bit (16777K)
Supply voltage +5VDC
Current <200mA
Number of pairs 24bit (16777K)
Size 37mm * 33mm
Weight 12.8g


Flexible Micro OLED Display Module Monitor HDMI Customized 0.7 Inch Binocular For Safety 0


Product Description



Main functions: Photo, video, lattice, signal conversion, picture segmentation, 1080P/720P/D1 and other HD video solutions, can support wireless WIFI transmission function.


Display specifications from 0.32 inch to 2.5 inch, full size, can be designed and developed according to customer requirements.


Products can be used in the field: endoscope, aerial model, electronic digital microscope, electronic magnifying glass, medical equipment, instrumentation, security monitoring, video player, projector, security products and other video fields.

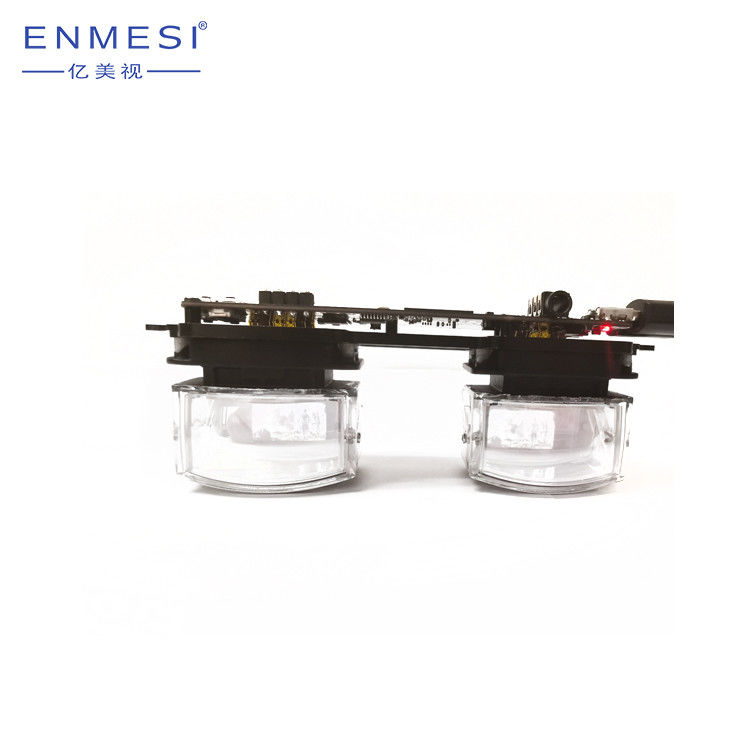

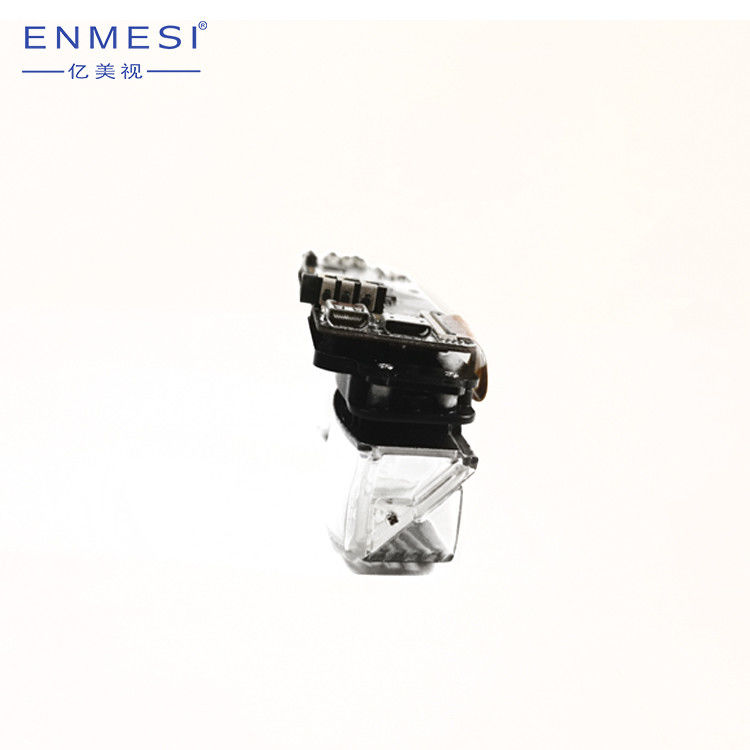

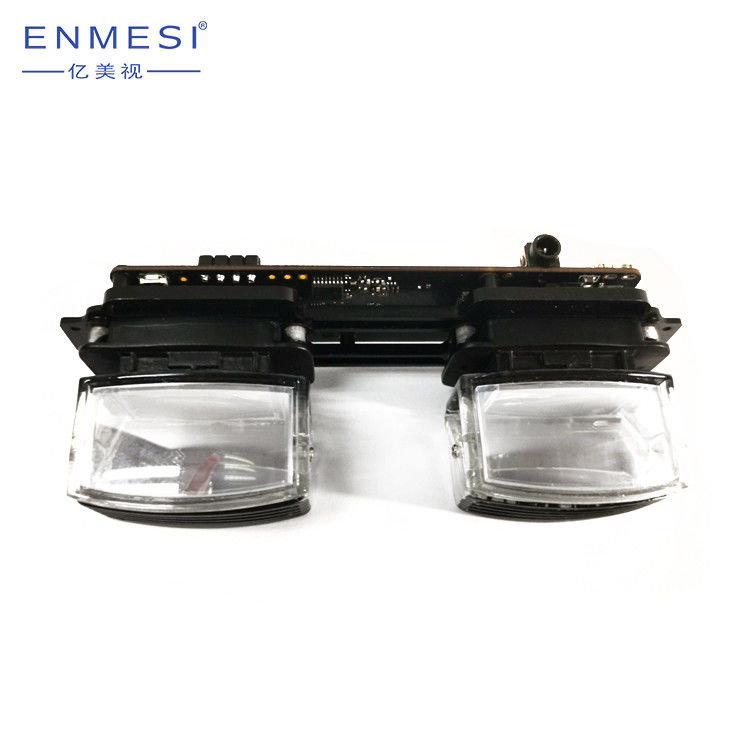

The Display module reduces customer development cycle and reduces customer development costs, and the module contains 1pcs ECX335BG micro-display chips, light source systems, high-performance optical engines, and image-driven control circuits. The display module can be virtual out of the equivalent of 2 meters away 48 inches of screen, image clear (19201080 pixels), small size, can be easily applied to the customer's product development design. The module is mainly designed and applied to: head-mounted display, night vision, medical, information, infrared detection, power monitoring, electronic suite viewfinder and so on.




Our Service


a. According to customer needs to set brightness, contrast and other adjustment functions or video image interface.
b. The size and shape of the board can be re-customized to the customer's needs.

Tag: amoled display module,flexible oled display module, lcos micro display, full hd micro display, lcd micro display, 1080p micro display module, 720p micro display module.
