Custom Micro Display Module HDMI Monocular Flexible Screen Eyerelief 15mm Sony 0.7 Inch OLED Display

Custom Micro Display Module HDMI Monocular Flexible Screen Eyerelief 15mm Sony 0.7 Inch OLED Display

amoled display module

micro oled display module

Place of Origin:

CHINA

Brand Name:

ENMESI

Certification:

CE,ROHS,FCC

Model Number:

R6

Contact Us
Request A Quote
Product Details
Product Model:
R6
Screen Size:
0.7"
Eyerelief:
15mm
Eyebox:
8mm
Size:
18.5mm*20.3mm
Weigh:
14g
Payment & Shipping Terms
Minimum Order Quantity
200pcs
Price
Negotiable
Packaging Details
gift box
Delivery Time
3-7 working days
Payment Terms
Western Union, T/T etc
Supply Ability
5000pcs/month
Product Description



0 . 7 Inch OLED Display Custom Drive Plate Micro Display Module For Smart Eyewear Devices





Product details



Product model R6
Screen size 0.7"
Resolution 1920&1080
Material OLED
FOV 51°
Eyerelief 15mm
Eyebox 8mm
Distortion 1.42%
Frame Rate 60Hz
Number of colors 24bit (16777K)
MTF 0.15@30lp/mm
Size 18.5mm*20.3mm
Weigh 14g









Product Description

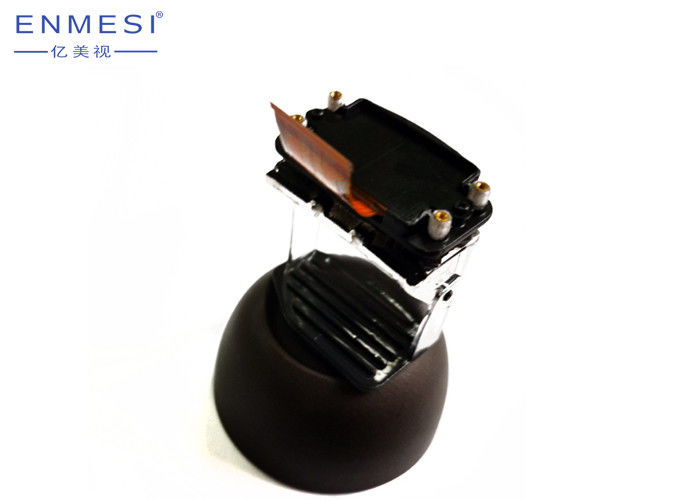

The micro display module is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves smaller size, light in weight and high resolution. .







Applications

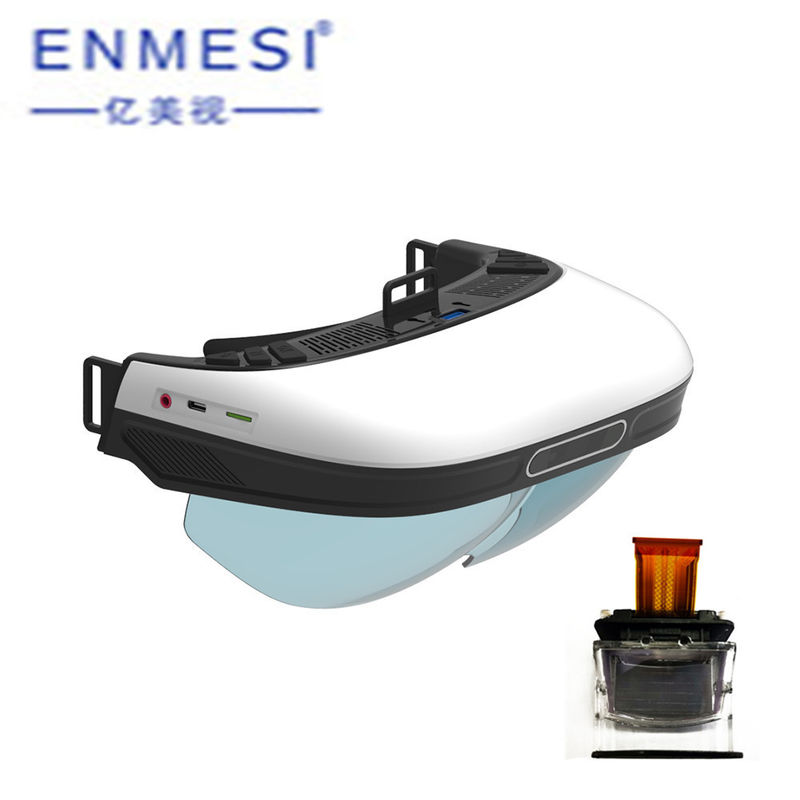

1. Used for head-mounted video spectacle display (eye-wearing, goggles, helmet observation system), game helmets, electronic viewfinder (EVF) devices, computer video and other product applications;

2. Industrial Medical Video display: Human and machine Image Engineering research, machine vision imaging, various inspection and testing equipment, dental laboratory use, Medical X-ray perspective imaging, geological and marine exploration and use, aeronautical navigation, UAV ground display terminal, vehicle, ship, scientific research institutions and colleges and universities use;

3. Military use: Military equipment and instrumentation, military video (sight), laser sight imaging,multifunctional individual helmet system (individual Combat Command System), Target individual combat     weapons, individual night vision systems, life detection video devices, handheld detectors, infrared night vision instruments, Infrared thermal Imager, infrared video surveillance, security monitoring and other           devices (high-definition panchromatic remote observer, can be connected with a variety of monitoring or thermal camera systems);

4. Industry Application Showcase: Individual combat head-mounted display ( High-definition signals from drones can be received via wireless graph transmission).







Our services

1. Samples can be sent out very soon.
2. Different models for your reference.
3. We provide perfect solution for customers according to your requirement such as the size, the color of the frame.
4. We can open new mold for your own design.logo,frame.etc
5. Your inquiry related to our products or prices will be replied in 24 hours.
6. We will protect your sales area, idea of design and all your private info.
7. For our modules,we have 1 year warrenty.
8. Small order is welcome.







About us



     Shenzhen Anpo Intelligence Technology Co., Ltd. was established in Shenzhen in the early 2014 and established its own factory (Dongguan Zhiyingshixun Technology Co., Ltd) in Dongguan with a total area of over 1,000 square meters., and the brand "ENMESI" was registered in the same year.

     Enmesi is a professional solution provider for smart glasses integrated solutions in the fields of medical, education, industry, security, gaming and audio-visual entertainment. Its main research and development products include integrated solutions for head-mounted displays, 2D/3D intelligent video glasses, FPV aviator video glasses, VR/AR smart glasses, visual training glasses, night vision glasses, and micro display modules. According to the different needs of customers, Enmesi can provide customers with different solutions for smart glasses, providing OEM and ODM services. Enmesi has professional and strong R&D team, mainly providing software and hardware development and product ID & MD. Its products and solutions can be applied to various industries. Since its establishment, Enmesi has always adhered to the principle of “Quality First, Integrity First”. With professional R&D technology, quality assurance and first-class service, the company's business has spread all over the world and has won the trust and good reputation from most of the customers.
